• Model NO.：SQ30A portable threading machine
• Applicable Pipe Thread：BSPT,NPT
• Dimensions：1,2"-1 1,4" (DN 15mm~32mm)
• Weight：6kgs for Power Drive Only
• Motor Type：Universal Type
• Gear Housing：Aluminum
• Die Head：1,2", 3,4", 1", 1 1,4" (Type 11r)
• Transport Package：Plastic Carrying Case with Carton
• Specification：CE
• Trademark：Hongli
• Origin：Hangzhou, Zhejiang, China (Mainland)
• HS Code：8466939000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. SQ30A portable threading machine Applicable Pipe Thread BSPT/NPT Dimensions 1/2"-1 1/4" (DN 15mm~32mm) Weight 6kgs for Power Drive Only Motor Type Universal Type Gear Housing Aluminum Die Head 1/2", 3/4", 1", 1 1/4" (Type 11r) Transport Package Plastic Carrying Case with Carton Specification CE Trademark Hongli Origin Hangzhou, Zhejiang, China (Mainland) HS Code 8466939000 Production Capacity 50000PCS/Month

Product Description

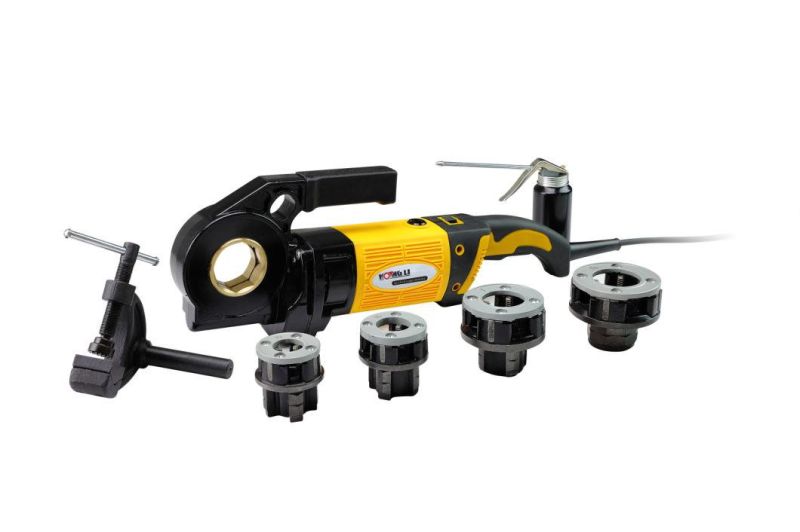

SQ30A Portable Pipe Threader ½"-1¼" (12 mm-32 mm)

1. SQ30A portable pipe threader employs a reversible 110V or 220V universal motor, double insulation devices and heavy-load motor driver. Its double insulation is as protective as three-wire ground installation.
2. SQ30A pipe threader is for threading of various water, electric or gas pipes ranging from ¹/₂"--1¹/₄".It's efficient and easy to carry (weight: 6 kilograms).
3. The pipe threader machine can be widely used in equipment installation and construction industries and is an ideal device for increasing work efficiency, shortening construction time,securing construction quality, and decreasing working intensity.
4. SQ30A pipe threader is designed to work with 11-R die heads for pipes ½"-1¼" (12 mm-32 mm) in diameter.
5. It is ideal for on-site applications such as gas line pipe installation.
5. Hongli SQ30A pipe threader is approved by CE certificate.


Specification
Capacity: ½"-1¼" (12 mm-32 mm) pipe.

Motor: 1700 W Universal 110 V or 220 V, 50/60 Hz.
Switch: heavy-load, complete with safety lock, cut-off and normal-reverse switches.
Gear Housing: box body cast with aluminum alloy, ever-lasting lubricating.
Body & Handle: Durable heavy-duty plastic shell and handle hardened by durable heavy-load fiberglass.
Spindle Speed: 25 RPM (No load)
Die Heads Included: ½", ¾", 1", 1¼" (Type 11R)
Includes support arm, buffering threader torque.
Screw Threads: NPT / BPST
Dies Material: Alloy standard, (HSS optional)
Weight: 6 kg, power drive only.
Length: 500 mm


Standard Equipment of
Four Type SQ30A screwing die heads with dies:¹/₂", ³/₄", 1", 1 ¹/₄"
Electric brush (for threader only): 1 set
Support Arm: 1 pc
Oiler : 1 pc (without oil)
One operation manual


We suggest you threading with HONGLI dies. (The standard dies together with the machine is alloy type, HSS type threading dies are for option ) You can also use RIDGID 11R dies on SQ30A portable pipe threader. Ordering Information

Cat no.	Model no.	Description
306210	SQ30A	220V portable pipe threader, ½"-1¼",  BSPT w/Case and Support Arm
306211	SQ30A	110V  portable pipe threader, ½"-1¼",  NPT w/Case and Support Arm

Packing

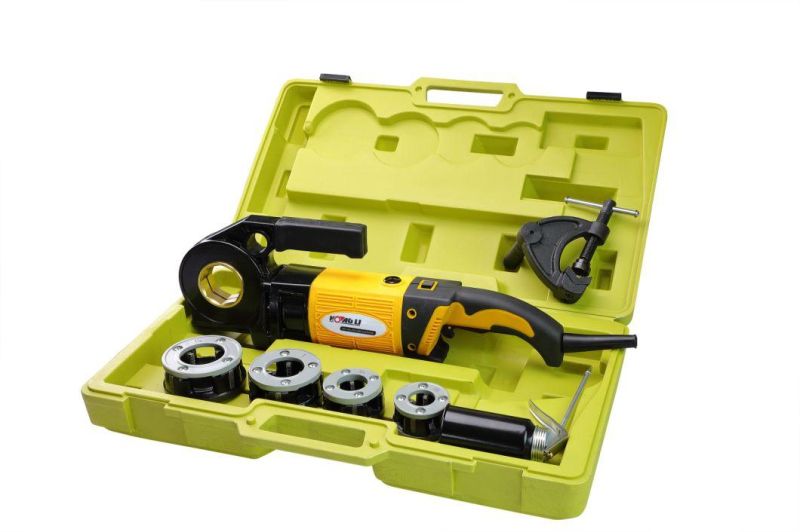

Packaging: Plastic carrying case(inside) + carton (outside) with mark

Model	G.W.	N.W.	Packing
SQ30A	15 KG	14 KG	50*18*9 cm

HS Code of Portable Pipe Threader: 8467299000
