• Model NO.：LC18E
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.05m3
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine Model：Yanmar 3tnv70-Ssy
• Rated Power：12kw
• Transmission Type：Automatic
• Exp.Packing：13units,40gp
• Bucket Digging Force：11kn
• Transport Package：by Container
• Specification：3714*1050*2275mm
• Trademark：LGMC
• Origin：Liuzhou

Basic Info.

Model NO. LC18E Drive Type Internal Combustion Drive Bucket Capacity 0.05m3 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine Model Yanmar 3tnv70-Ssy Rated Power 12kw Transmission Type Automatic Exp.Packing 13units/40gp Bucket Digging Force 11kn Transport Package by Container Specification 3714*1050*2275mm Trademark LGMC Origin Liuzhou

Product Description

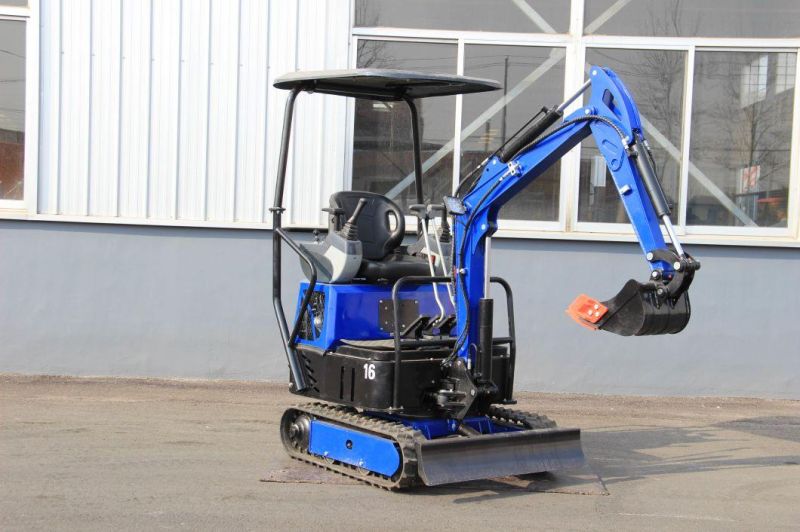

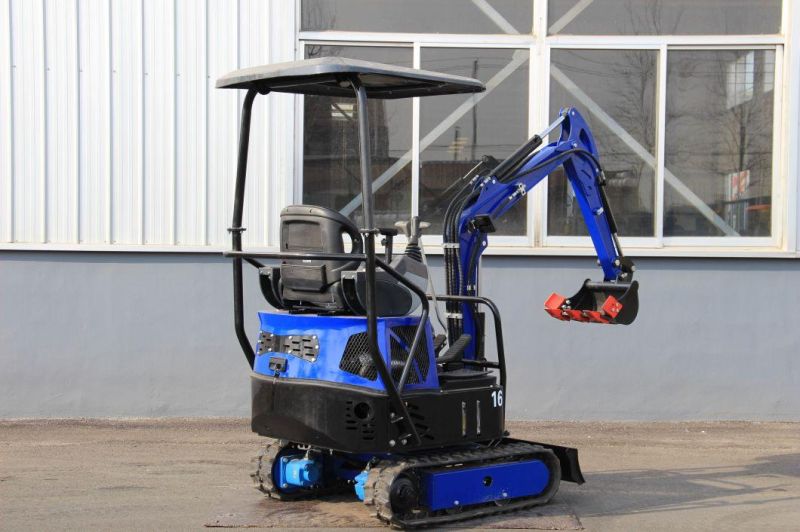

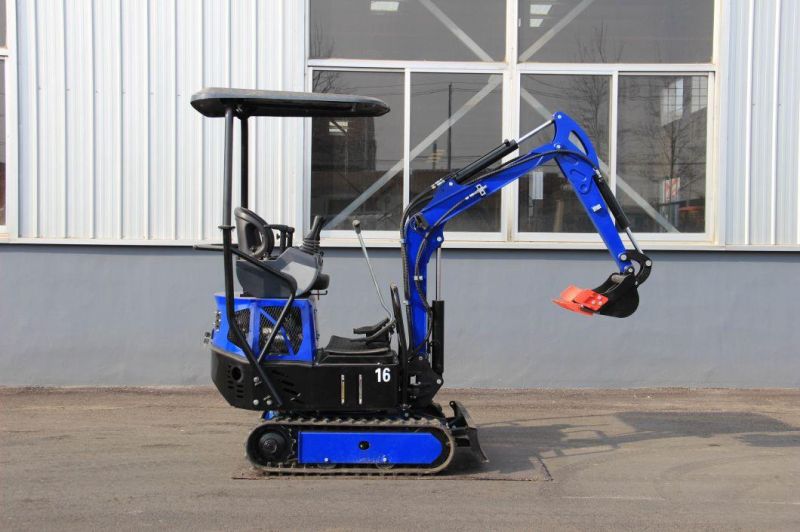

THE MOST POPULAR MINI EXCAVATOR SERIES(LC18E):



Main Features


 1.The computer optimization design has the function of high level automatic leveling and the aperation efficiency is
    improved significantly.
2.The gearbox is designed and manufactured by our company. It is rugged and durable The gear ratio matches
    reasonably and reduces power consumption.
3.Load sensing is full hydraulic priority,stable,reliable and energy saving.
4.The bucket pin has a dust proof apron, which prolongs the service life of the pin shaft and the bushing.





MINI SIZE, MULTIPLE FUNCTIONS

EASILY OPERATED AND FLEXIBLE

WIDELY USED IN ALL TERRAIN

CONFIGURATION ADJUSTABLE



Overall performance	Unit	LC18E
Excavator model		LC18E
Engine Model		KM385B/ZN390Q
Rated Power	KW	18.1/18
Rated Speed	r/min	2200
Working Pressure of Hydraulic Pump	mpa	18
Maximum walking speed	km/h	1.5
Rotary speed	rpm	11
Max Climb Capability	°	35
Bucket digging force	KN	11
Weight	kg	1700
Max ecavation depth	mm	2214
Max ecavation height	mm	3664
Max unloading height	mm	2523
Max vertical excavation depth	mm	1770
Max lifting heiht of bulldozer	mm	328
Max excavation depth of bulldozer	mm	203
Standard buket size(L*W)	mm	500*400
Standard buket capacity	m³	0.05
Profile size	mm	3714×1050×2275

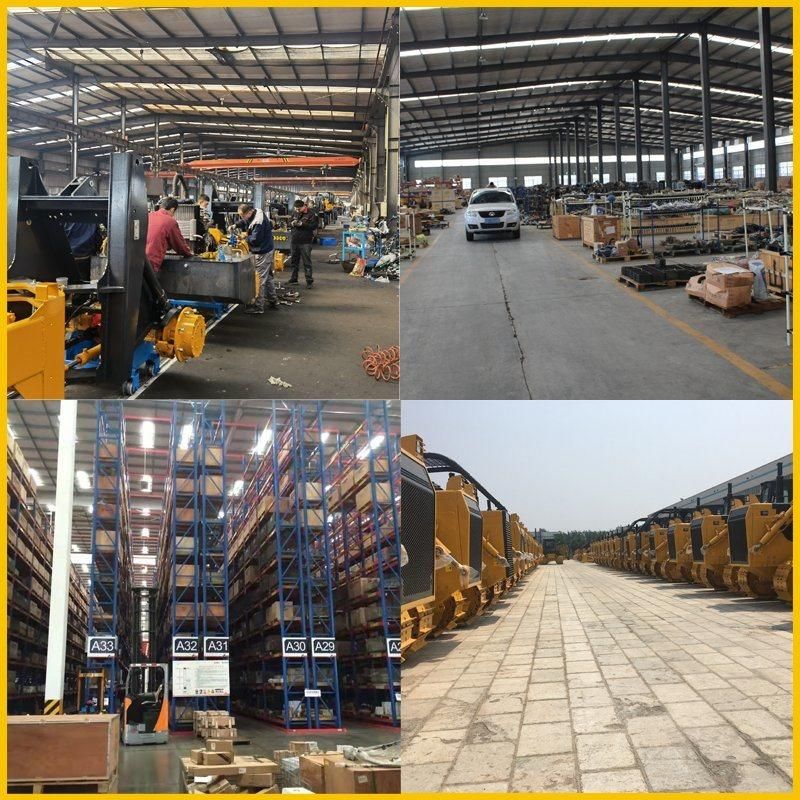

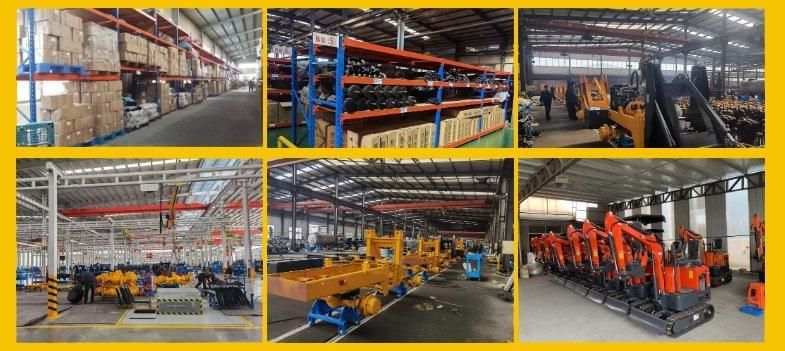

<sub>LGMC (Guangxi Ligong Machinery Co., Ltd), a company that specialized in not only construction machinery, but also more than 2,000,000 machinery parts (included LIUGONG, S-D-L-G,  XGMA, SHANTUI, SEM, Ko-matsu, CAT, Doosan, and so on), having all the engineering that can be used in the manufacturing industry, construction industry, general industry, and even agriculture. Those machines have been widely used everywhere with multiple functions. LGMC focuses on heavy machinery investment in research and development of small machinery, winning great popularity in aboard markets. In here you can find everything no matter what you want.

Having a great advantage of location, LGMC located in Liuzhou, a city that has extensive rail connections with the rest of China, is the home of LiuGong Company, the biggest industrial base of Guangxi Province. In line with the principle of "Honesty, High quality, Reliability, and Efficiency", LGMC has won great recognition in the market in just a few years, has gained support from major domestic manufacturers and trade organizations as well. LGMC occupied the market relies on the good product quality, good after-sales service and exported to South Asia, Southeast Asia, Africa, South America, Mid East, Eastern Europe, and other regions. 24 hours 7 days stand by with a professional selling team, solves all kinds of problems on time, and provides specialized commentary of your questions. Always ready to welcome you and help to have a great cooperation experience.</sub>
