• Model NO.：HBT40.13.82RSC
• Feeding Height：1400mm
• Vibrating Amplitude：1.0mm
• Certification：ISO9001: 2000
• Condition：New
• Color：Orange
• Max. Theor. Concrete Output：30,48m3, H
• Theor. Max. Vertical Delivery Distance：270m
• Main Pump：Rexroth
• Engine Brand：Cummins
• Rated Power：82kw
• Transport Package：Nude
• Specification：5800*1900*2200mm
• Trademark：REALTOP
• Origin：China
• HS Code：8412400000
• Production Capacity：30 Units Per Month

Basic Info.

Model NO. HBT40.13.82RSC Feeding Height 1400mm Vibrating Amplitude 1.0mm Certification ISO9001: 2000 Condition New Color Orange Max. Theor. Concrete Output 30/48m3/ H Theor. Max. Vertical Delivery Distance 270m Main Pump Rexroth Engine Brand Cummins Rated Power 82kw Transport Package Nude Specification 5800*1900*2200mm Trademark REALTOP Origin China HS Code 8412400000 Production Capacity 30 Units Per Month

Product Description

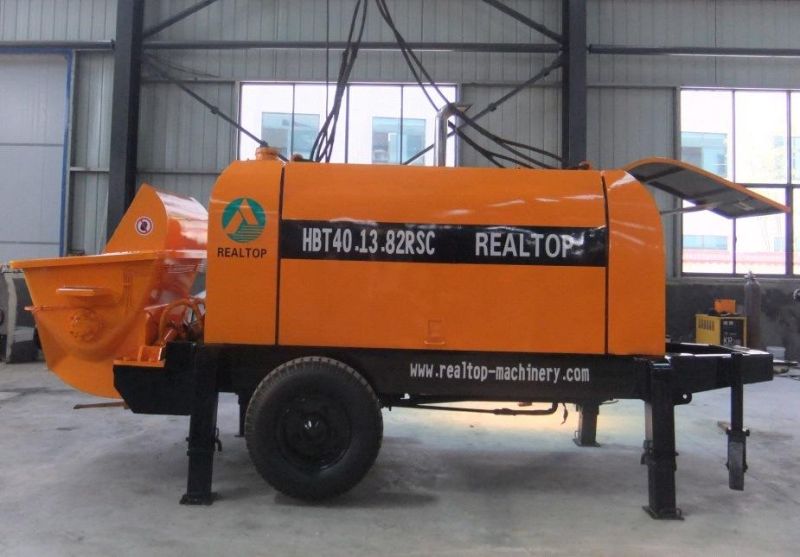

HBT Series Trailer Mounted concrete pump
Advanced Technology
Models-   HBT30 to HBT80, diesel engine or electric motor, single or dual engine or motor.
-   Main oil pump, diesel engines, valves with famous brands worldwide.
Hydraulic system                                                       -   Hydraulic system with double pump and double open-circuits ensure long lifespan.                   -   Double filtration technology to ensures hydraulic elements high reliability.
-   With electrical solenoid or hydraulic direction valve, pressure switch becomes easy and quick.
Pumping system                                                                    -   Imported Oil pumps, eg. Rexroth, KAWASAKI,Handock,strong pumping ability and high reliability.                                        -   Hard alloy eye board and cutting ring.

Electrical System                                                                        -   Imported electrical elements (eg. Mitsubishi ) to ensure high reliablity &low failure                      -   Low voltage start, multi-protection for short circuit, over-loading, failure warning.
-   Automatic-controlling technology for engine throttle.


Detail parameters


No.	Technical Parameters	Unit	HBT40.13.82RSC
1.	Max.Theor.Concrete Output(high/low pressure)	(m³/h)	30/48
2.	Concrete Pressure(high/low pressure)	(mpa)	13/7.5
3.	Theor. Max. Horizontal Delivery Distance	(m)	750
4.	Theor. Max. Vertical Delivery Distance	(m)	180
5.	Main Pump		Japanese Kawasaki
6.	Cylinder Diameter/Rod D × Stroke	(mm)	φ125/80×1000
7.	Concrete Cylinder Bore × Stroke	(mm)	φ200×1200
8.	Diesel Engine Power	(kw)	Cummins 82KW
9.	Rated Rotating Speed	(r/m)	2200
10.	Hopper Capacity	(L)	700
11.	Hopper Height	(mm)	1400
12.	Oil Tank Capacity	(L)	500
13.	Hydraulic Circuit Form		Opened-circuit
14.	Delivery Valves Style		S-valved
15.	Max. Grain Diameter	(mm)	Pebble:50 Crushed Stone:40
16.	Out Dimension	(mm)	5800×1900×2200
17.	Total Weight	(kg)	4800

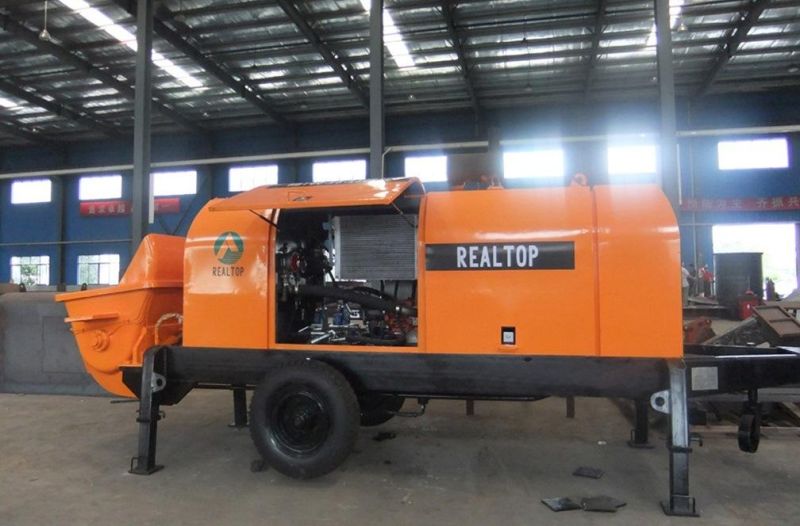

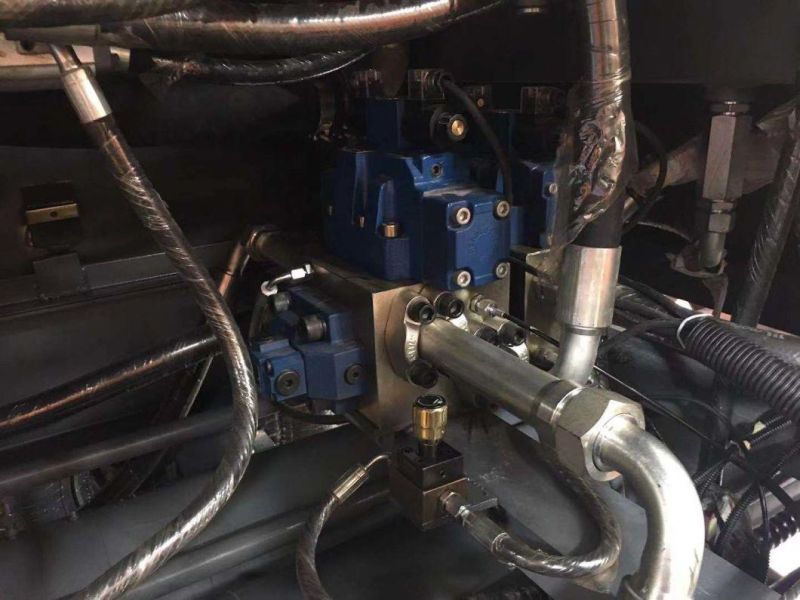

Detail pictures
Characteristics:
1. Main hydraulic pumps: Japanese Kawasaki product, all reversing valves, all hydraulic hoses and couplers are imported products. Diesel engine is the products of American Cummins, made in China with license, which we called Dongfeng Cummins.

2. The reversing control is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact.

3. The counter force on specially designed "S" valve is received by hopper wall to assure the service life of goggle plate and cutting ring.

4. Reliable master oil cylinder and concrete cylinder can be normally operated for at least 30,000 m3.

5. Main electric elements are imported original OMRON, Siemens, LG, etc.

6. The open loop of the hydraulic system is air cooled to keep the oil temperature below 60 ºC so as to ensure the stability of the system.

7. Control mode: manual operation and wire remote control.

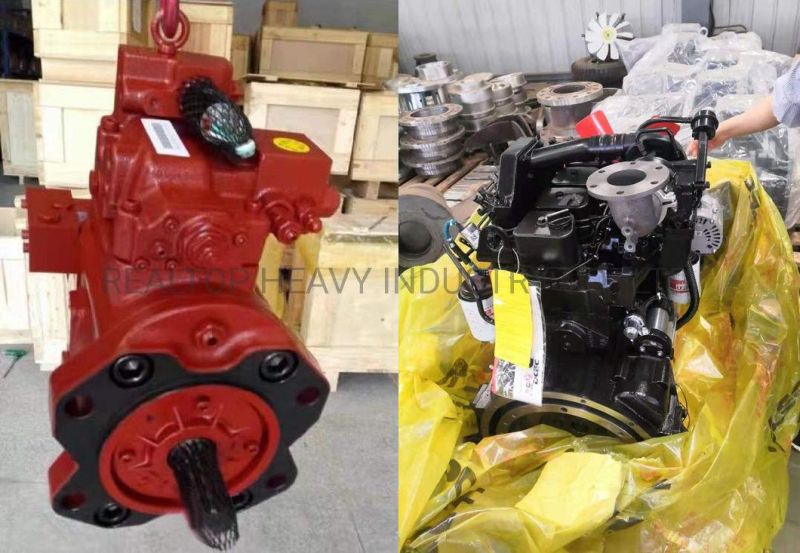

Kawasaki main pump and 82kw Cummins diesel engine

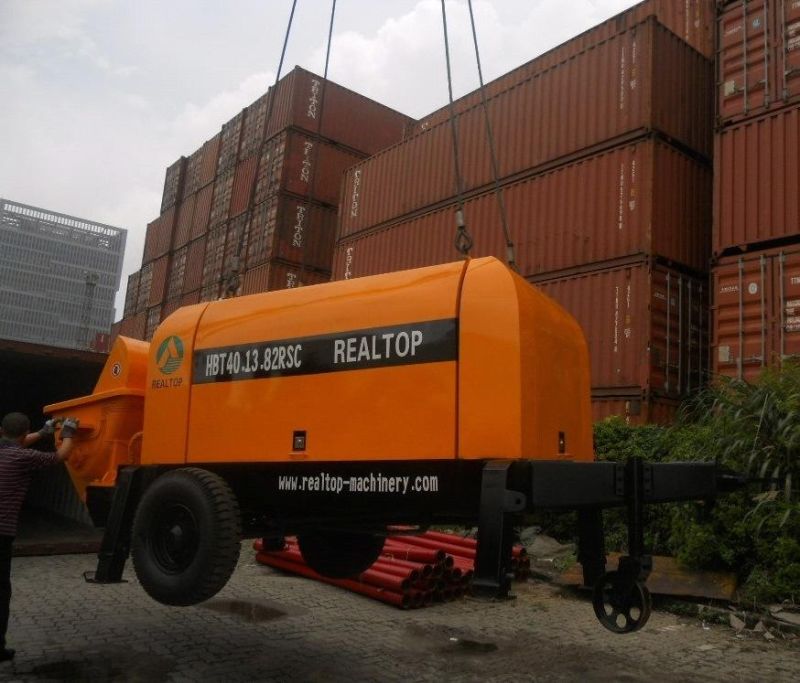

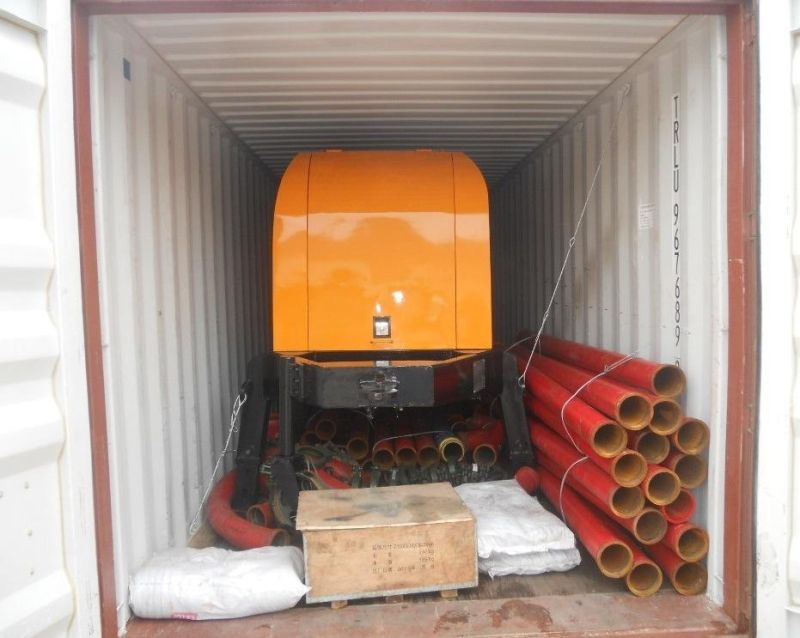

Shipping and delivery
