• Model NO.：L350H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Transport Package：Nude
• Specification：35ton
• Trademark：ORIEMAC
• Origin：China
• HS Code：8429510000
• Production Capacity：100units Per Month

Basic Info.

Model NO. L350H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Transport Package Nude Specification 35ton Trademark ORIEMAC Origin China HS Code 8429510000 Production Capacity 100units Per Month

Product Description

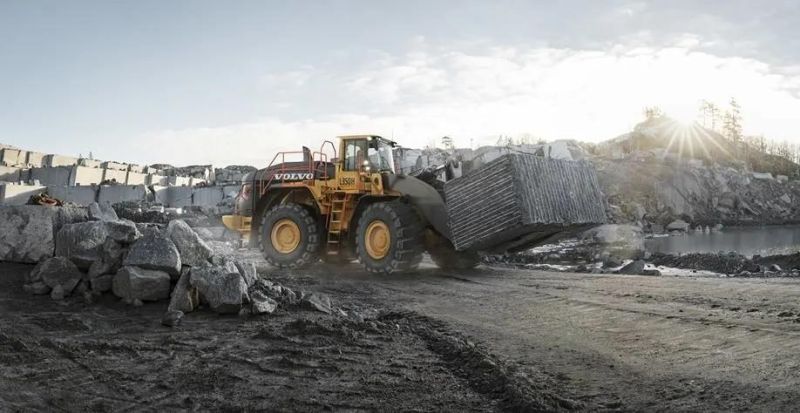

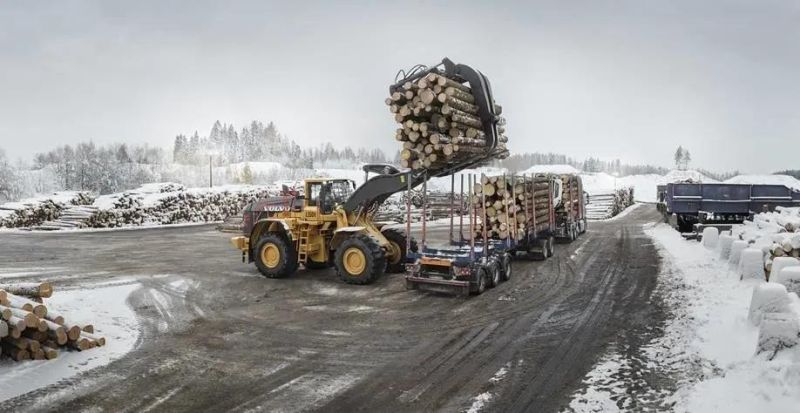

VOLVO L350H 35Ton 397KW Large Mining Wheel Loader


LOADED WITH EXCELLENCE

Smarter, faster and tougher than the L350F, the L350H has been built on the success of its forerunner, first introduced to the market in 2007. Upgraded with the latest innovative technology, the L350H is ready to tackle a range of applications, from mining and quarrying to heavy infrastructure.

TECHNICAL SPECIFICATIONS FOR L350H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Static tipping load at full turn	34,780 kg
Bucket capacity	6.2 - 12.7 m³
Operating weight	50,000 - 56,000 kg
Breakout force	472.8 kN
Engine	Volvo D16E
Max power at	1,800 rpm
...SAE J1995 gross	397 kW
...ISO 9249, SAE J1349 net	394 kW
Max torque at	1,400 rpm
...SAE J1995 gross	2,550 Nm
...ISO 9249, SAE J1349 net	2,532 Nm
Tires	35/65 R33, 875/65 R33
