• Model NO.：EC380
• Drive Type：Internal Combustion Drive
• Bucket Capacity：>1.5m³
• Size：Large-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Nude
• Specification：38ton
• Trademark：ORIEMAC
• Origin：China
• HS Code：8705109100
• Production Capacity：100units Per Month

Basic Info.

Model NO. EC380 Drive Type Internal Combustion Drive Bucket Capacity >1.5m³ Size Large-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Nude Specification 38ton Trademark ORIEMAC Origin China HS Code 8705109100 Production Capacity 100units Per Month

Product Description

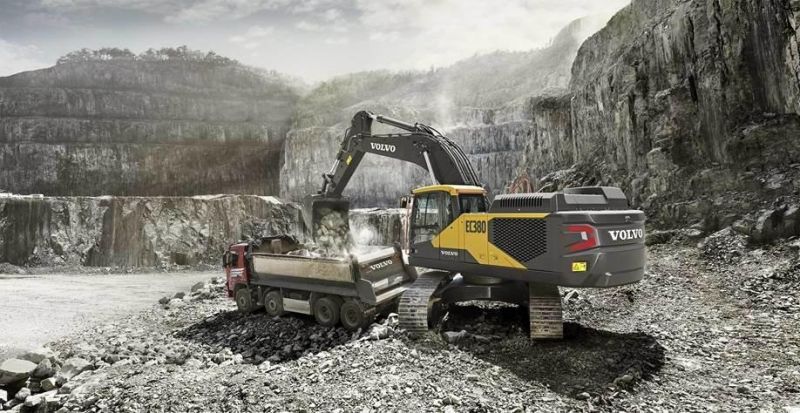

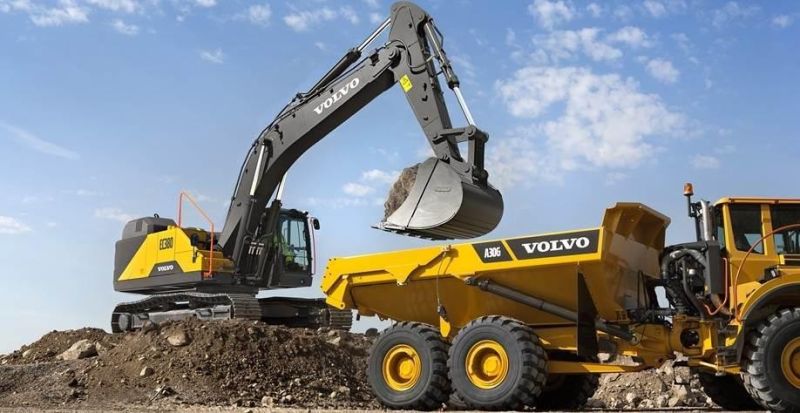

VOLVO 1.9m3 40Ton EC380 Large Excavator Price


A NEW LEVEL IN EFFICIENCY

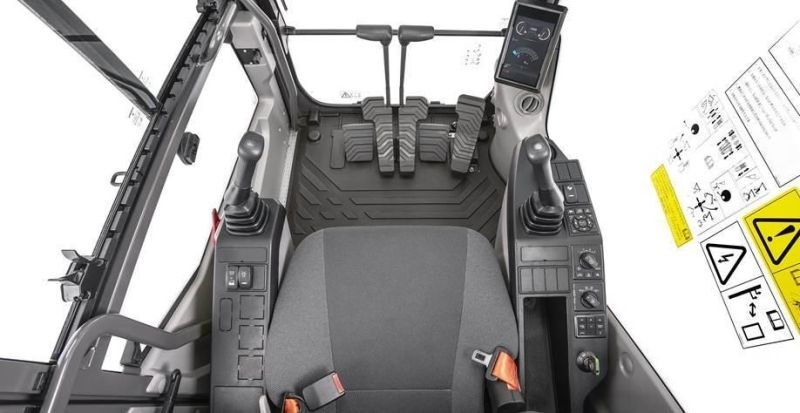

Take your profitability to the next level in the new generation EC380, featuring a range of advanced technology including new generation electro-hydraulics (positive), resulting in a 5% improvement in fuel efficiency and productivity. From the industry-renowned Volvo cab, operators will be able to achieve optimum results with the powerful Volvo engine and range of Volvo attachments. Count on the EC380 to work harder, for longer thanks to a durable design, long component life and ease of serviceability.

TECHNICAL SPECIFICATIONS FOR EC380

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	39,845 kg
Gross power	245 kW
...at engine speed	1,800 rpm
Bucket capacity	1.9 m³
Lifting capacity, along undercarriage	15,940 kg
...at reach / height	6 / 1.5 m
Max. digging reach	11,220 mm
Max. digging depth	7,590 mm
Breakout force, SAE J1179 (Normal)	198 kN
Breakout force, SAE J1179 (Boost)	215 kN
Tear out force, SAE J1179 (Normal)	161.9 kN
Tear out force, SAE J1179 (Boost)	176.9 kN
Overall width	3,340 mm
Tail swing radius	3,600 mm
