• Model NO.：SW-70F
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine：Cummins Engine or Weichai Engine
• Rated Power：59kw,80HP
• Total Machine Weight：7 Tons
• Transport Package：Nude Packing
• Specification：CE
• Trademark：Shenwa
• Origin：China Mainland
• HS Code：8429521200
• Production Capacity：4000units,Month

Basic Info.

Model NO. SW-70F Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Engine Cummins Engine or Weichai Engine Rated Power 59kw/80HP Total Machine Weight 7 Tons Transport Package Nude Packing Specification CE Trademark Shenwa Origin China Mainland HS Code 8429521200 Production Capacity 4000units/Month

Product Description

Delivery time: 15 days

Features:
1. Engine: Weichai/Cummins engine
2. Rated Power: 59kw/80HP
3. Total Machine Weight: 7tons
4. Bucket Capacity: 0.4CBM(m3)

Specifications:
1.     Powerful 4 wheel drive.

2.     Microcomputer platforms, water temperature, oil temperature,                 current and work time all available within eyesight.

3.     With pneumatic spring skylights the excavator can provide                       progressive outlook and it has an additional ventilation effect;

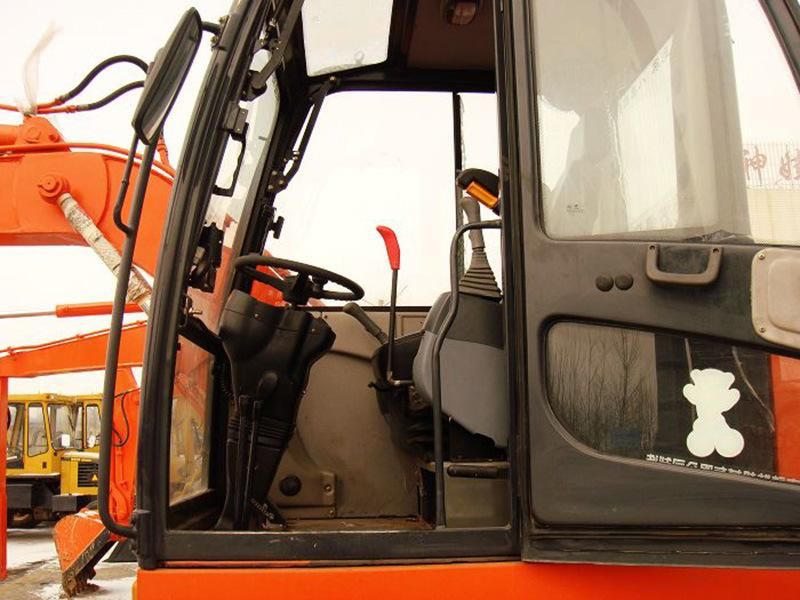

4.     Foldable and sliding front window makes it easier to stay in open             position, effectively improving working conditions.

5.     Famous brands of hydraulic parts are imported to prolong the life           with strong power and high working efficiency;

6.     Hydraulic steering and pilot control rod handle makes it easier to             operate, improves the reliability, and reduces the load of the driver.

7.     Brand-named hydraulic motors have a wide range of adjustable             speed.

8.     Plenty of spare parts available to meet after sales service                       standards for clients.

Details of the Product

MAIN PARAMETERS
Max. Digging Depth	3500mm
Max. Digging Radius	6000mm
Max. Digging Height	6500mm
Max. Dumping Height	5000mm
Engine Brand	Weichai
Rated Power	80Hp
Total Machine Weight	7tons
Bucket Capacity	0.4m 3
Working Efficiency	60-80m 3 /h
Hydraulic System Working Pressure	16MPa
Maximum Hauling Force	38.5KN
Walking Speed	25km/h
Boon rotation Angle	360 o
Overall dimension(L×W×H)	7000×2050×2600mm
Min. Ground Clearance	340mm
Axles Distance	1300mm
