• Model NO.：950E
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight with Cab：46500 Kgs
• Engine Power：280 Kw
• Track Shoe Width (Std)：600mm
• Digging Reach on Ground：10388 mm
• Vertical Wall Digging Depth：5204 mm
• Transport Package：Nude
• Specification：11515x3340x3810 mm
• Trademark：oriemac
• Origin：China
• Production Capacity：350units,Month

Basic Info.

Model NO. 950E Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Operating Weight with Cab 46500 Kgs Engine Power 280 Kw Track Shoe Width (Std) 600mm Digging Reach on Ground 10388 mm Vertical Wall Digging Depth 5204 mm Transport Package Nude Specification 11515x3340x3810 mm Trademark oriemac Origin China Production Capacity 350units/Month

Product Description

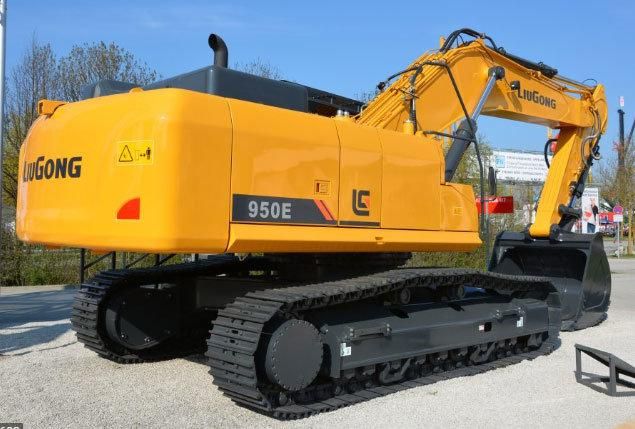

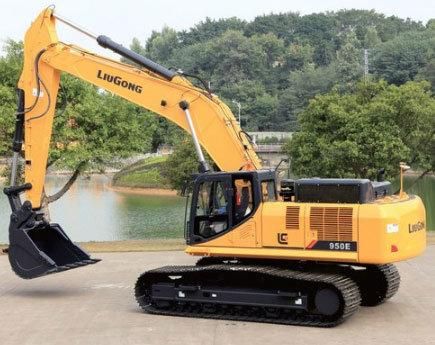

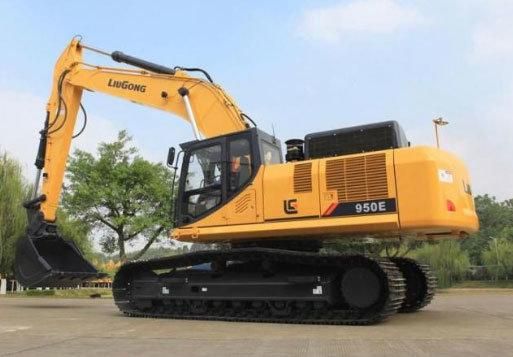

Brand New Hot Sale 46.5 ton  Hydraulic Crawler Excavator 950E in Stock
Contact Person: Vicky Zhu

Product Description
The 950E is powered by the latest Cummins QSM11 engine with a rated net power of 260 kW (349 hp) @ 2,100 rpm in compliance with EU Stage IIIA emission standards.

Heavy duty undercarriage components, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage.

ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System) safeguard your operator in the toughest environment.

Visibility is key to protecting your operator and workers on site. The large glass surface area, spacious cab, combined with the rear-view camera, provides an extraordinary view of the 950E's surroundings.

Inspection parts, filters and water separator are conveniently located.

Product Specifications

Operating weight with cab

46500-48300 kg

Engine power

280 kW (375 hp) @ 2000 rpm

Bucket capacity

2.2 / 2.6 / 2.8 / 3.2 m³

Maximum travel speed (High)

5.5 km/h

Maximum travel speed (Low)

3.1 km/h

Maximum swing speed

8.5 rpm

Arm breakout force

255/240/209 kN

Arm breakout force Power boost

270/263/225 kN

Bucket breakout force

265/263/268 kN

Bucket breakout force Power boost

280/287/288 kN

Shipping length

11515/12030/12062 mm

Shipping width

3340 mm

Shipping height

3810 mm

Track shoe width (std)

600 mm

Boom

6500/7060/7060 mm

Arm

2550/2900/3380 mm

Digging reach

10625/11585/12020 mm

Digging reach on ground

10388/11368/11810 mm

Digging depth

6521/7380/7860 mm

Vertical wall digging depth

5204/6011/6435 mm

Cutting height

9977/10618/10785 mm

Dumping height

7038/7578/7520 mm

Minimum front swing radius

4645/5052/5015 mm

Model

Cummins QSM11

Emission

EPA Tier 3 / EU Stage IIIA

System maximum flow

2×380 L/min (2x100 gal/min)

System pressure

34.3 MPa
