• Model NO.：9035E
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight with Cab：1900 Kg
• Engine Power：13.4 Kw
• Bucket Breakout Force：16 Kn
• Transport Package：Nude
• Specification：3707x1290x2350
• Trademark：Oriemac
• Origin：China
• Production Capacity：350units,Month

Basic Info.

Model NO. 9035E Size Small-Scale Certification CE, ISO9001: 2000 Condition New Operating Weight with Cab 1900 Kg Engine Power 13.4 Kw Bucket Breakout Force 16 Kn Transport Package Nude Specification 3707x1290x2350 Trademark Oriemac Origin China Production Capacity 350units/Month

Product Description

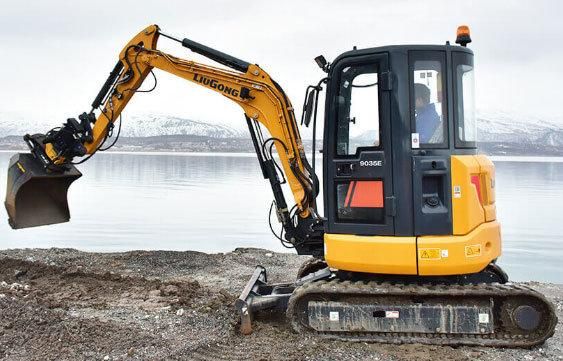

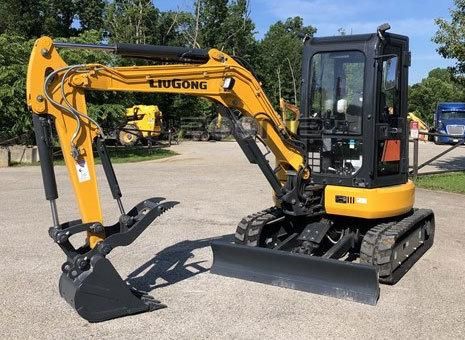

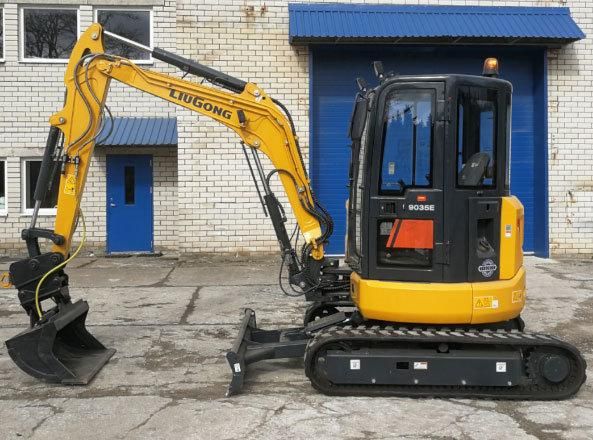

Brand New 2 ton Small Hydraulic Long Boom Excavator 9035E
Contact Person: Vicky Zhu

Product Specifications
Zero tail swing

Ergonomically designed cab and ergonomic placement of instruments

Open ROPS available

Hammer/Shear hydraulics and piping

Product Parameters

Operating weight with cab

2750 kg

Engine power

15.2 kW (20.4 hp) @ 2500 rpm

Bucket capacity

0.05-0.1 m³

Maximum travel speed (High)

4.5 km/h

Maximum swing speed

10 rpm

Arm breakout force

12 kN

Bucket breakout force

20 kN

Shipping length

4810 / 4860 mm

Shipping width

1700 mm

Shipping height

2500 mm

Track shoe width (std)

300 mm

Boom

2450 mm

Arm

1320 / 1700 mm

Digging reach

5385 / 5715 mm

Digging reach on ground

5270 / 5603 mm

Digging depth

3085 / 3440 mm

Vertical wall digging depth

2503 / 2713 mm

Cutting height

4710 / 4843 mm

Dumping height

3310 / 3463 mm

Minimum front swing radius

2416 / 2413 mm

Dozer-up

370 mm

Dozer-down

390 mm

Swing boom left rotation

70 °

Swing boom right rotation

50 °

Model

Yanmar 3TNV88-BPLY

Emission

EU Stage IIIA

System maximum flow

92.4 L/min ( 24 gal/min)

System pressure

24.5 MPa
