• Model NO.：925E
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight with Cab：25500 Kgs
• Engine Power：133kw
• Track Shoe Width (Std)：600mm
• Digging Reach on Ground：9685 mm
• Vertical Wall Digging Depth：5795 mm
• Transport Package：Nude
• Specification：10220x3190x3400 mm
• Trademark：oriemac
• Origin：China
• Production Capacity：350units,Month

Basic Info.

Model NO. 925E Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Operating Weight with Cab 25500 Kgs Engine Power 133kw Track Shoe Width (Std) 600mm Digging Reach on Ground 9685 mm Vertical Wall Digging Depth 5795 mm Transport Package Nude Specification 10220x3190x3400 mm Trademark oriemac Origin China Production Capacity 350units/Month

Product Description

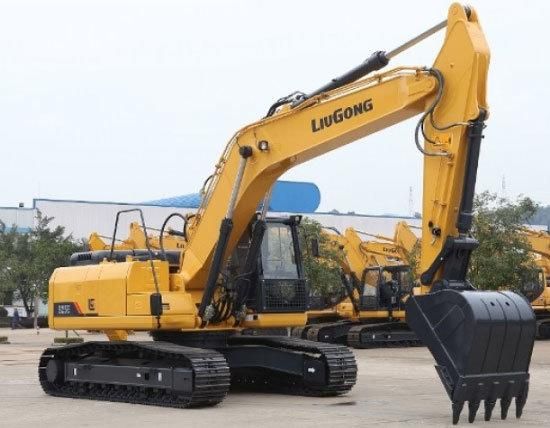

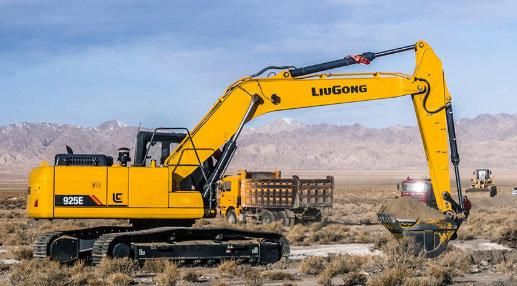

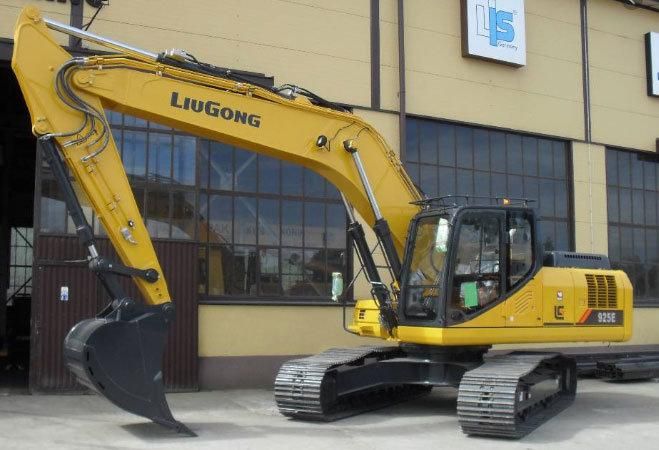

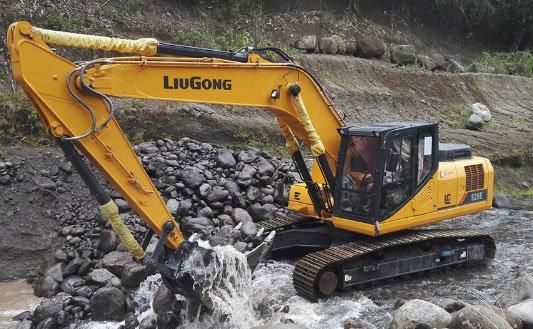

China High Quality Crawler 25 ton Brand New Excavator 925E in Stock
Contact Person: Vicky Zhu

Product Description

Unmatched performance driven by the Cummins engine maximizes torque output with more power and breakout force at lower engine speeds.

Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.

Options for auxiliary hydraulic piping include bi-directional variable high flow line, an additional line for rotating attachments and also single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit your needs.

E series cab high-strength ROPS ensures operator protection meeting ISO 12117-2:2008 safety standard. Falling Object Protection System (FOPS) is optional.

Product Specifications

Operating weight with cab

25500 kg

Engine power

133kW ( 178 hp / 181 ps) @ 2,000 rpm

Bucket capacity

1.0 / 1.1 / 1.2 / 1.3 m³

Maximum travel speed (High)

5.8 km/h

Maximum travel speed (Low)

3.5 km/h

Maximum swing speed

12 rpm

Arm breakout force

124 kN

Arm breakout force Power boost

134 kN

Bucket breakout force

165 kN

Bucket breakout force Power boost

179 kN

Shipping length

10220 mm

Shipping width

3190 mm

Shipping height

3400 mm

Track shoe width (std)

600 mm

Boom

6000 mm

Arm

2980 mm

Digging reach

10340 mm

Digging reach on ground

10150 mm

Digging depth

6925 mm

Vertical wall digging depth

5795 mm

Cutting height

9865 mm

Dumping height

6920 mm

Minimum front swing radius

3695 mm

Model

Cummins B5.9

Emission

EPA Tier 2 / EU Stage II

System maximum flow

2×240 L/min (2x63 gal/min)

System pressure

34.3 MPa
