SANY SSR260C-6 SSR Series Vibratory Road Roller 26Ton Weight Single Drum Roller Prices
SANY GROUP CO., LTD.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Sheep Foot Roller
- Compaction Depth：40mm
- Engine Type：Diesel Engine
Base Info
- Model NO.：SSR260C-6
- Travel Speed：27
- Centrifugal Force：380,275kn
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Transport Package：Export Package
- Specification：SSR220AC-8
- Trademark：SANY
- Origin：China
- Production Capacity：5000PCS Per Month
Description
Basic Info.
Model NO. SSR260C-6 Travel Speed 27 Centrifugal Force 380/275kn Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Export Package Specification SSR220AC-8 Trademark SANY Origin China Production Capacity 5000PCS Per MonthProduct Description
Sany SSR260C-6 road roller useing water wheel type lubrication on the vibratory bearing extends the bearing life up to 5,000 hours. The hydraulic system of the 260hp road roller contains three stage filtration.
Higher Compaction Efficiency
10% greater excitation force than other products in the same category resulting in 16.7% greater production.
Safety First Design
Rounded bumpers front and rear
Large rear glass and sloped hood for greater visibility
Comfortable Operation
Cab mounted on vibration damping mounts
Cab climate control
Operator control forces have been reduced
| Operating weight | 26000kg | Weight at drum | 17000kg |
| Weight at rear axle | 9000kg | Drum static linear load | 783N/cm |
| Vibration frequency | 27/31Hz | Nominal amplitude | 2.05/1.03mm |
| Excitation force | 416/275kN | Drum diameter | 1700 mm |
| Drum width | 2170 mm | Drum edge thickness | 40 mm |
| Travel speed - high | 0-8/0-11 | Travel speed- low | 0-6/0-7.5 |
| Theoretical gradeability - vibratory | 43% | Theoretical gradeability - non-vibratory | 45% |
| Ground clearance | 495 mm | Wheelbase | 3261 mm |
| Steering angle | ±35° | Swing angle | ±12° |
| Min. turning outside diameter | 12800 mm | Tires | 23.5-25-16PR |
| Model | SANY D07S3T3 | Emissions | Tier III |
| Rated power | 180KW | Battery | 24x100 VxAh |
| Fuel tank | 300L | Hydraulic oil tank | 200L |

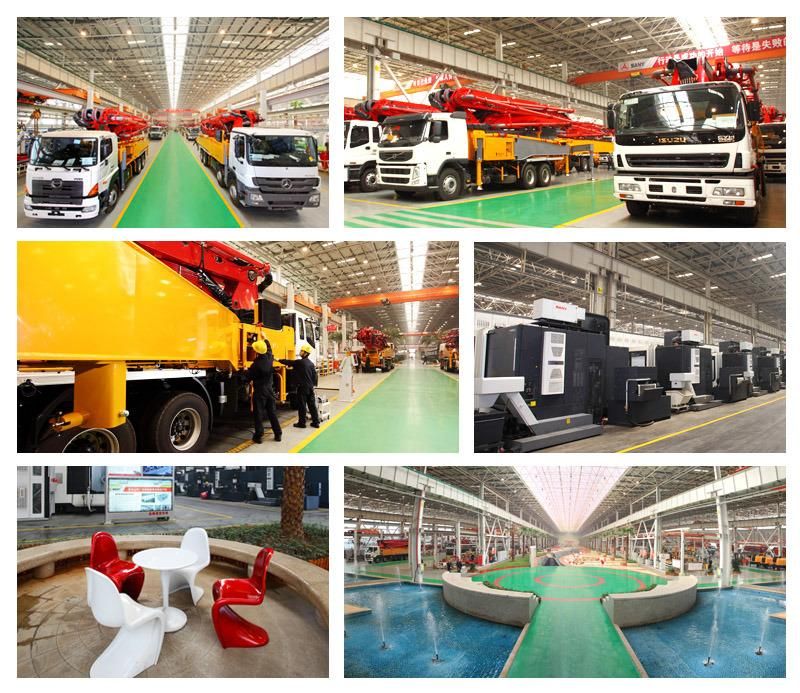

Producing Environment
Company Information
SANY On Exhibition
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
