• Model NO.：SSR220AC-8
• Travel Speed：27
• Centrifugal Force：380,275kn
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：Export Package
• Specification：SSR220AC-8
• Trademark：SANY
• Origin：China
• Production Capacity：5000PCS Per Month

Basic Info.

Model NO. SSR220AC-8 Travel Speed 27 Centrifugal Force 380/275kn Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package Export Package Specification SSR220AC-8 Trademark SANY Origin China Production Capacity 5000PCS Per Month

Product Description

High productivity

Stable and continuous operation in any jobsite, at high altitude or in 46ºC temperature

Automatic control of shifting and steering ensure quick maneuverability, improving efficiency

Full hydraulic drive system, stepless changing of speed

Compaction performance

Dual frequency, double amplitude vibratory mode produces greater excitation force

No shock or indentation left when the roller starts, increasing road surface smoothness

Taking only 3 seconds to start vibration with large displacement vibration motor

Safety first

Travel braking, parking braking and emergency braking all contribute to safe and stable operation

1m×1m rear view and optimized structure design give you superb visibility

Safe and comfortable cab with noise lower than 84dB protect the operator

Cost effective

Patented vibratory bearing with special lubrication structure extends the service life

Large displacement vibration pump and motor with low system pressure is highly reliable

No friction plate, main pump built in the rear, save maintenance costs



Operating weight	22000 kg	Weight at drum	11000 kg
Weight at rear axle	11000 kg	Drum static linear load	516 N/cm
Vibration frequency	29/35 Hz	Nominal amplitude	1.9/0.95 mm
Excitation force	390/258 kN	Drum diameter	1600 mm
Drum width	2130 mm	Drum edge thickness	40 mm
Travel speed - high	0~10 km/h	Travel speed- low	0~6 km/h
Theoretical gradeability	30 %	Ground clearance	440 mm
Wheelbase	3185 mm	Steering angle	±35°
Swing angle	±12°	Min. turning outside diameter	12350 mm
Tires	20.5-25-16PR	Model	WeiChai WP6G200E331
Emissions	Tier 3	Rated power	147 kW
Battery	24x100 VxAh	Fuel tank	300 L
Hydraulic oil tank	100 L

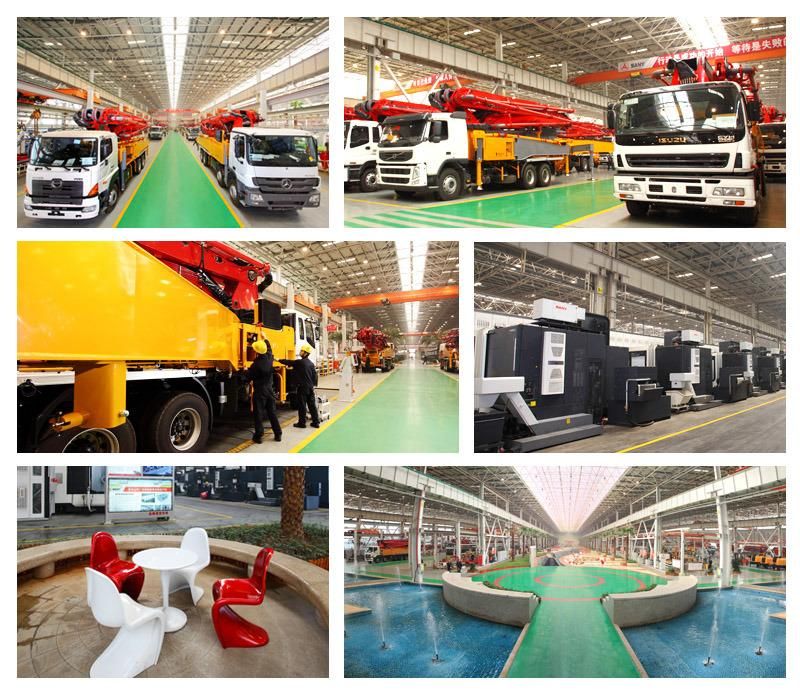

Producing Environment

Company Information

SANY On Exhibition



FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?

A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?

A: 7-20 days after receiving the deposit.

4: What about the warranty time?

A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?

A: The MOQ is 1 pcs
