• Model NO.：SY305C
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Export Package
• Specification：SY220
• Trademark：SANY
• Origin：China
• Production Capacity：5000PCS Per Month

Basic Info.

Model NO. SY305C Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Export Package Specification SY220 Trademark SANY Origin China Production Capacity 5000PCS Per Month

Product Description

High efficiency and low consumption

The Isuzu GH-6HK1 Engine with Tier 3 emission standard adopts the brand new controller to realize real-time precise fuel injection, making the fuel burn more sufficiently. Under same working environment, the fuel consumption reduces by over 10 percent.

The self-developed DOMCS dynamic optimized intelligent control system realizes the perfect match of the engine and the main pump, making the movement more fast and also prolonging the service life.

High reliability

The customized key components by global well-known brands, passing endurance test, adapt to various rough working environment.

Users'friendly design

The brand-new damping system, cab with extra-large view, strengthened noise reduction design, greatly improve the operation experience.

Engine model	Isuzu GH-6HK1	Rated power	212/2000kW/rpm
Emission standard	Tier 3	Operating weight	32800kg
Max. digging height	10100mm	Max. dumping height	7025mm
Max. digging depth	7410mm	Max. vertical digging depth	6170mm
Max. digging reach	11050mm	Min. swing radius	4450mm
Height at min.swing radius	8500mm	Transport length	11100mm
Transport width	3190mm	Transport height	3600mm
Upper width	3145mm	Cab height	3085mm
Tail swing radius	3300mm	Std. track shoe width	600mm
Bucket capacity	1.4m³	Track shoes(per side)	47
Upper rollers	2	Lower rollers	8
Track gauge	2590mm	Track length	4870mm
Boom length	6.47m	Arm length	3.2m
Travel speed	5.2/3.4km/h	Swing speed	9.5rpm
Gradeability	70%/35°	Ground pressure	59.6kPa
Tractive force	270kN	Bucket digging force	220kN
Arm digging force	170kN	Fuel tank	540L
Hyd tank	380L	Engine oil	35L
Engine coolant	31.9L

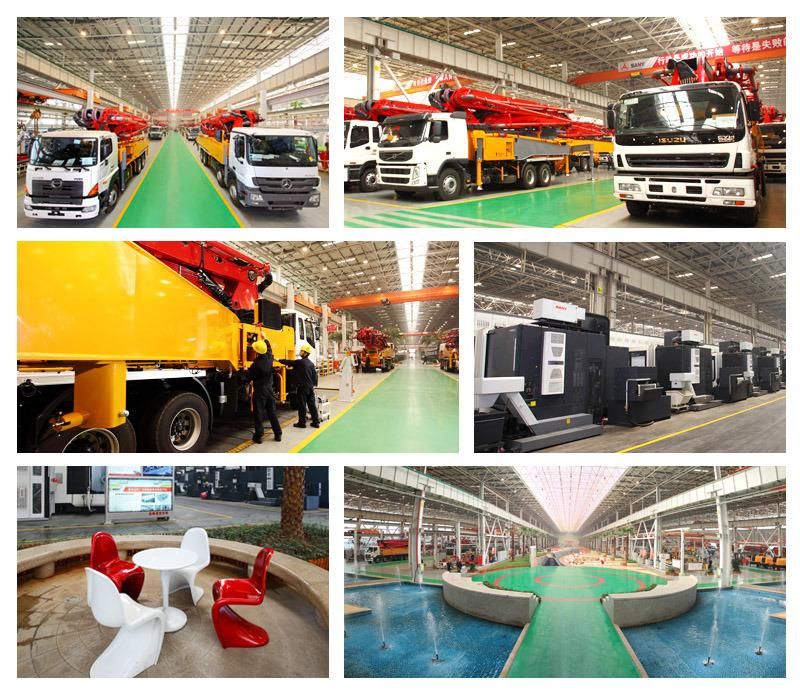

Producing Environment

Company Information

SANY On Exhibition





FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?

A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?

A: 7-20 days after receiving the deposit.

4: What about the warranty time?

A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?

A: The MOQ is 1 pcs
