• Model NO.：SY140
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Export Package
• Specification：SY140
• Trademark：SANY
• Origin：China
• Production Capacity：5000PCS Per Month

Basic Info.

Model NO. SY140 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Export Package Specification SY140 Trademark SANY Origin China Production Capacity 5000PCS Per Month

Product Description

SY140C-9 small excavator (14 ton excavator) features higher operating efficiency, lower fuel consumption and easier maintenance, generating more profit to customers.

Advanced Dynamic Control

The Dynamic Optimization Matching Control System (DOMCS) intelligently matches the engine system and hydraulic drive system, improving working efficiency by 6% and reducing fuel consumption by 10%.

The self-developed load sensing system achieves a constant overall power by varying the force of each pump, ensuring micromanagement and operating accuracy.

The variable operating modes include heavy-duty mode, standard mode, light-duty mode and break mode, allowing the machine to be ready for versatile operations in any environment.

The advanced GPRS can monitor the accurate location of SY140C-9 14 ton excavator and the machine's dynamic in real time.

The remote error diagnosis gives the feedback in real-time, helping solve problems without delay.

The smart machine alerts provide danger warning, ensuring the safety of the operator and the machine.

High Stability and Reliability

Robot-welding Process

Robot-welding process ensures a strong and durable structure.

Reinforced Boom

The ear plates have been redesigned to reduce stress at the joint. The boom passes certified tests including working for long hours and digging in harsh environment.

Reinforced Bucket

The bucket has been redesigned to make it suitable for multiple working conditions. Durability is enhanced with the anti-wear and thickened plates on the bucket bottom, so that no damage is caused to the bucket during field digging (soil and rock mixture).

Swing Platform

Reinforced plates that are welded on the two main beams of the swing platform considerably increase resistance to bending. Made of top-grade steel and formed through punching, the beams are designed with a D-shaped structure and greatly strengthen the platform.

User Friendly Design

Innovative, Large Cab

Large windows on three sides provide a wide view. The ergonomically designed joysticks and chair provide a comfort experience for the operator.

High-quality Air-conditioner

The air conditioner with multiple air outlets at different levels and locations provides better cooling effect. And the air outlets can be adjusted as desired.

Silicone Rubber Shock Absorber

The operator station is equipped with an innovative silicone rubber shock absorber. This shock absorber is fixed to the swing platform in four points that minimizes the shock, considerably increasing cab stability and improving operator comfort.


Engine model	Isuzu 4BG1-TABGC-03-C2	Rated power	98HP(72.7KW)/2200rpm
Max.torque	337.6/1600N.m./rpm	Displacement	4.329L
Emission standard	Tier 2	Operating weight	13545kg
Max. digging height	8326mm	Max. dumping height	5858mm
Max. digging depth	5117mm	Max. vertical digging depth	4125mm
Max. digging reach	7952mm	Min. swing radius	2410mm
Height at min.swing radius	6498mm	Transport length	7766mm
Transport width	2550mm	Transport height	2800mm
Upper width	2490mm	Blade height	2800mm
Tail swing radius	2348mm	Min. ground clearance	425mm
Counterweight ground clearance	909mm	Std. track shoe width	500mm
Bucket capacity	0.72m³	Track shoes(per side)	44
Carrier roller(per side)	1	Lower roller(per side)	7
Track gauge	1990mm	Roller gauge	2930mm
Boom length	4600mm	Arm length	2100mm
Travel speed	5.1/2.9km/h	Swing speed	12rpm
Bucket digging force	93.7kn	Arm digging force	68.9kn
Fuel tank	240L	Hydraulic tank	150L
Engine oil	13.2L	Engine coolant	10L
Boom cylinder bore x stroke	105×990mm	Arm cylinder bore x stroke	115×1175mm

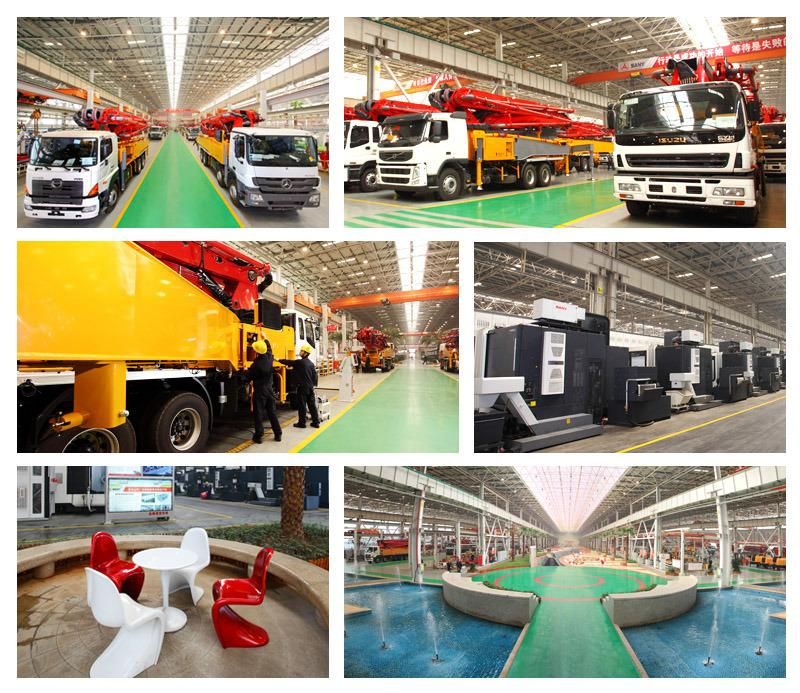

Producing Environment

Company Information

SANY On Exhibition

FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?

A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?

A: 7-20 days after receiving the deposit.

4: What about the warranty time?

A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?

A: The MOQ is 1 pcs
