• Model NO.：FL958H
• Type：Small Loader
• Transport Package：Nude
• Specification：5600 (L) x 2300 (W) x 1400(H)
• Trademark：Lovol
• Origin：China
• Production Capacity：1000unit,Month

ParameterFL958HOperating Weight(kg)16850Bucket Capacity(m3)3.3Rated Load(kg)5000Max. Traction Force(kN)155Max. Breakout Force(kN)165Max. Gradeability(°)30Dumping Angel(°)44Lifting Height(mm)5645Max. Dumping Height(mm)3100Dumping Reach(mm)1160Mini. Ground Clearance(mm)440Wheel Tread(mm)2150Wheel Base(mm)3300Mini. Turning Radius of Outside Tire(mm)7010Dimension(L×W×H mm)8420×2980×3380Engine ModelWeichai WD10G220E23Cylinder No.-Cylinder Dia.×Stroke(mm)6-126*130Max. Torque (N·m)900Rated Power(kW)162Rated Speed (rpm)2000Transmission TypeElectronically controlled shifting and fixed shaftNo. of GearsFront4back3Max. Speed km/h38.0Front 1 (km/h)6.0Front 2 (km/h)10.0Front 3 (km/h)21.5Front 4 (km/h)38.0Back1 (km/h)6.0Back 2 (km/h)10.0Back 3 (km/h)21.5Tire Size23.5-25Ply rating of Tire16Turning Angle38ºBoom Lifting Time(s)5.7Total Cycle Time(s)10.6Brake Air Pressure(Mpa)0.784Oil Tank Capacity(L)320Hydraulic Oil Tank Capacity(L)210Voltage (V)24

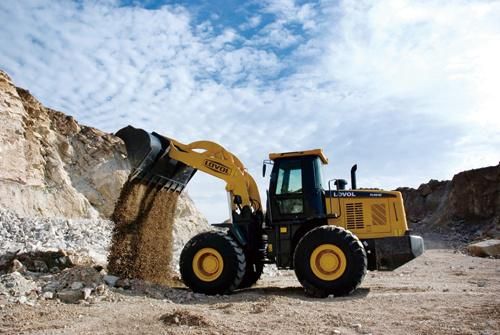

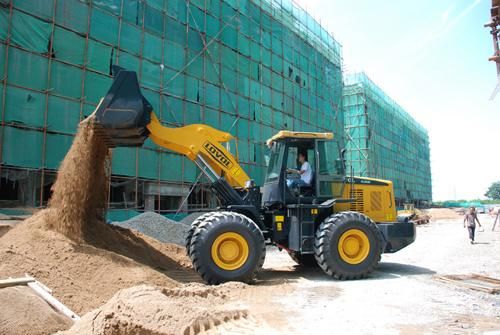

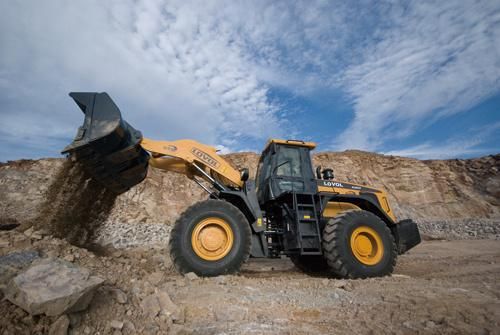

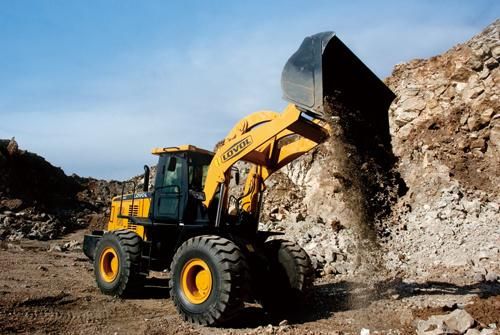

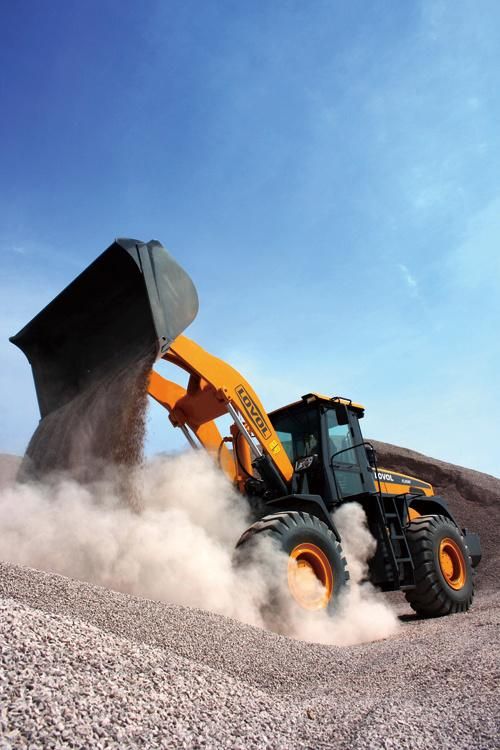

Product Show
