Lovol Mountain Rise Wheel Loader FL956h with Loader System
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO, RoHS, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：Fl956H
- Type：Small Loader
- Transport Package：Nude
- Specification：5600 (L) x 2300 (W) x 1400(H)
- Trademark：Lovol
- Origin：China
- Production Capacity：1000unit,Month
Description
ParameterFL956H Operating Weight(kg) 16970 Bucket Capacity(m3) 3.3 Rated Load(kg) 5500 Max. Traction Force(kN) 160 Max. Breakout Force(kN) 165 Max. Gradeability(°) 30 Dumping Angel(°) 44 Lifting Height(mm) 5645 Max. Dumping Height(mm) 3100 Dumping Reach(mm) 1160 Mini. Ground Clearance(mm) 440 Wheel Tread(mm) 2150 Wheel Base(mm) 3300 Mini. Turning Radius of Outside Tire(mm) 7020 Dimension(L×W×H mm) 8360×2980×3380 Engine Model Weichai WD10G220E24 Cylinder No.-Cylinder Dia.×Stroke(mm) 6-126*130 Max. Torque (N·m) 900 Rated Power(kW) 162 Rated Speed (rpm) 2000 Transmission Type Mechanical shifting planetary No. of Gears Front2back1 Max. Speed km/h 42.0 Front 1 (km/h) 13.0 Front 2 (km/h) 42.0 Back1 (km/h) 17.5 Tire Size 23.5-25 Ply rating of Tire 16 Turning Angle 38º Boom Lifting Time(s) 5.7 Total Cycle Time(s) 10.6 Brake Air Pressure(Mpa) 0.784 Oil Tank Capacity(L) 320 Hydraulic Oil Tank Capacity(L) 210 Voltage (V) 24

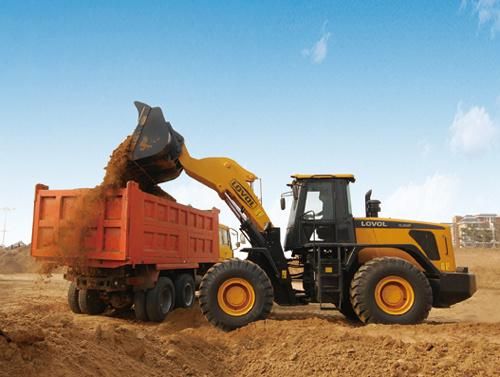

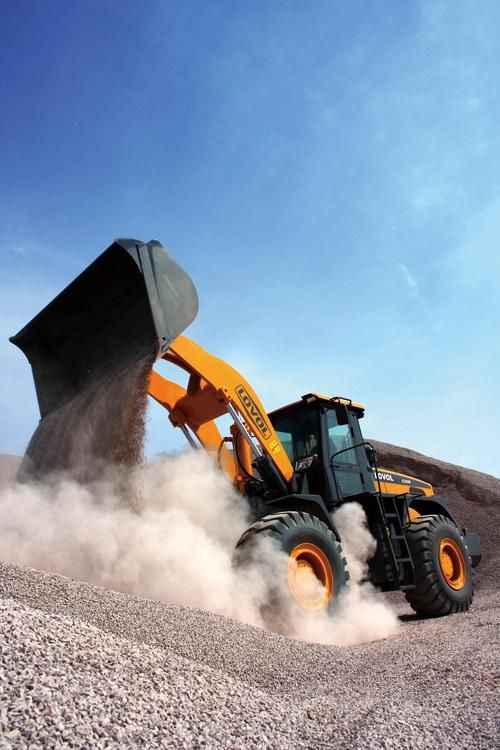

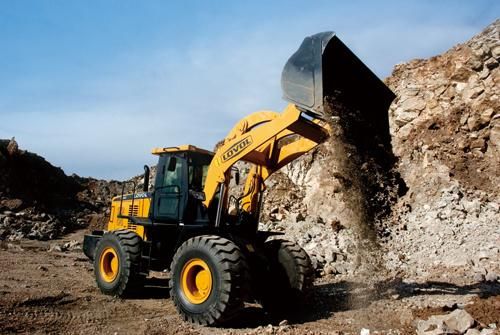

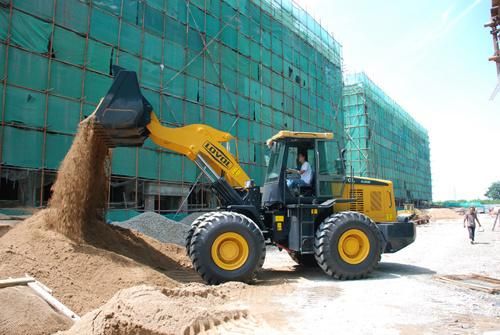

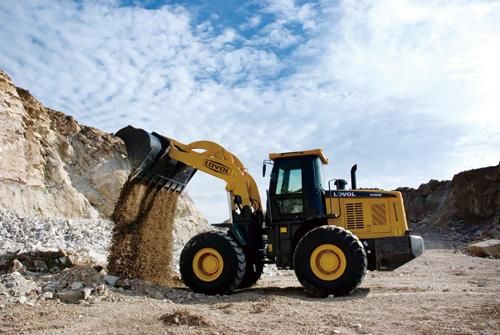

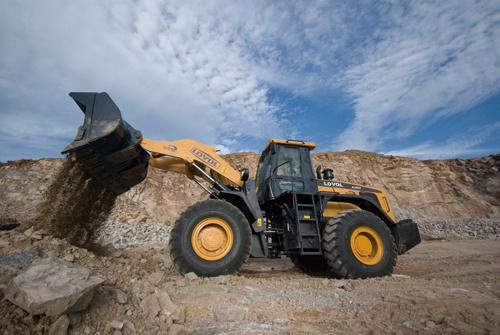

Product Show
