• Model NO.：FL959H
• Type：Small Loader
• Transport Package：Nude
• Specification：5600 (L) x 2300 (W) x 1400(H)
• Trademark：Lovol
• Origin：China
• Production Capacity：1000unit,Month

Complete machine parametersRated load(kg)5000Bucket capacity(m³)2.8Boom lifting time(S)5.57Sum of three items(S)10.2Max. traction force(kN)≥160Max. breakout force(kN)≥175Running systemForward speed range(km/h)42Backward speed range(km/h)17.5Max. gradeability(°)30Steering angle(°)37°+-1°Tire model23.5-25Tire center(mm)5665Outside of bucket(mm)6850Hydraulic systemWorking system pressure(Mpa)18Working system displacement(ml/r)100Steering system pressure(Mpa)16Steering system displacement(ml/r)80Hydraulic oil volume(L)210Working scopeOutline dimension(mm)7700×2980×3430Wheelbase(mm)2920Track(mm)2250Min. grounding distance (at hinge position)(mm)480Max. unloading height(mm)3135Engine parametersModelWeichai WD10G220E23Rated power(Kw/rpm)162/2200Max. torque / speed(N.m/rpm)890//Cylinder bore x stroke(mm)Φ126/130Displacement(L)9.726

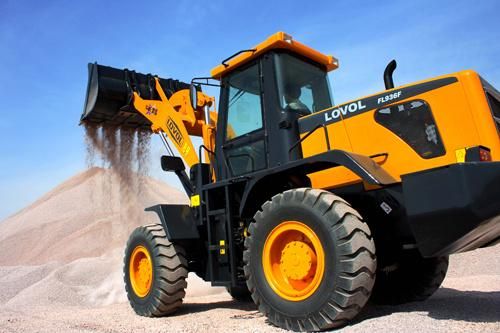

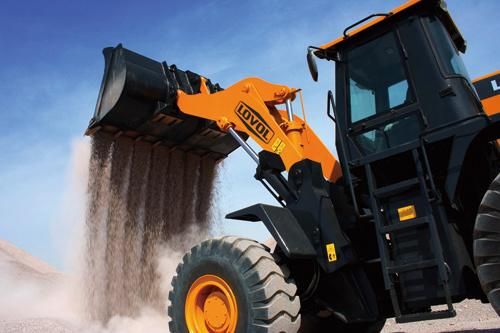

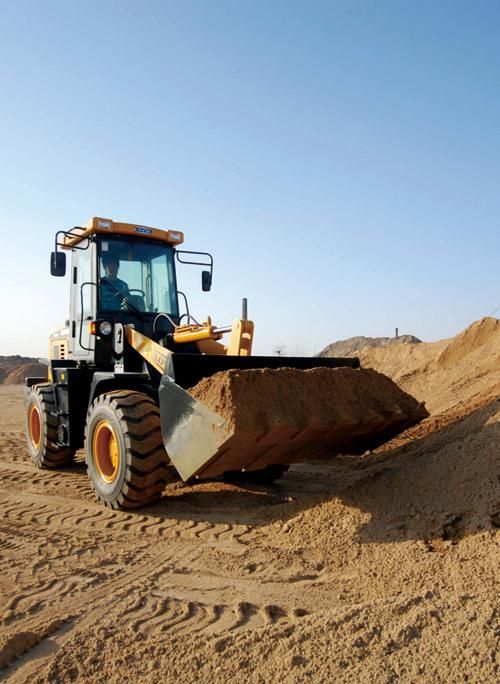

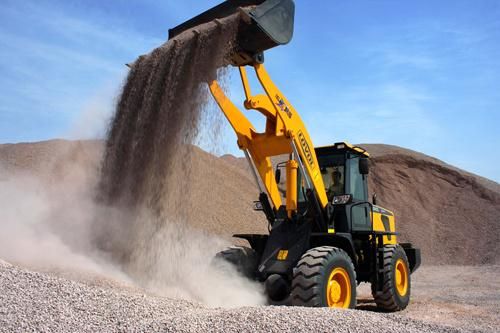

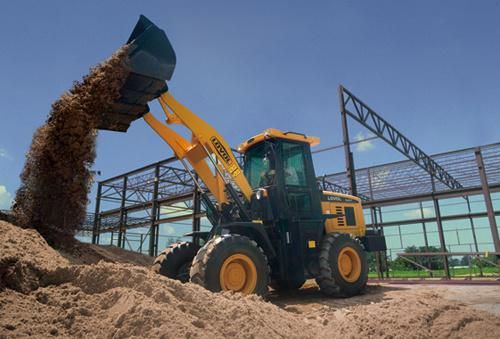

Product Show
