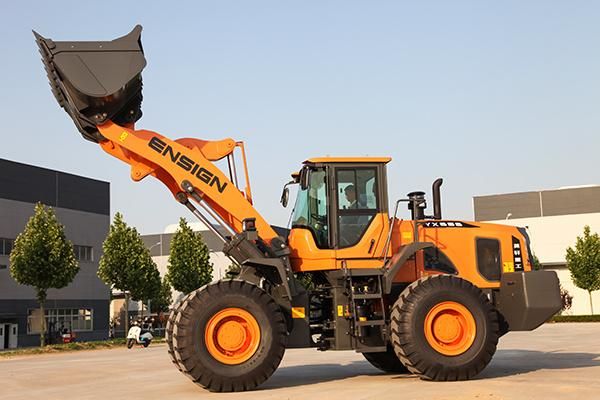

New Front Articulated 5 Ton Wheel Loader Yx656 with Shangchai/Weichai Engine
Ensign Heavy Industries Co., Ltd.- Certification：ISO, CE, Eac
- Condition：New
- Rated Load：5 Ton
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：YX656
- Type：Medium-sized Loader
- Transport Package：Nude Packed
- Specification：7820*3020*3420
- Trademark：ENSIGN
- Origin：Shandong, China
- HS Code：8429510000
- Production Capacity：10000 Units,Year
Description
High Efficiency and Reliability, Energy Conservation and Comfort
Technical Parameters
| Bucket capacity | m3 | 2.4~4.5(standard bucket 3.0) | Total cycle time(lift, dump& lower) | s | <11.3 |
| Rated load | kg | 5000 | Dump height/Dump angle | mm/ ° | 3210/52 |
| Overall operating weight | kg | 16700 | Dump distance/Dump angle | mm/ ° | 1120/52 |
| Max. traction force | kN | >170 | Min. ground clearance | mm | 457 |
| Max. breakout force | kN | >198 | Wheel base | mm | 3200 |
| Grade ability | ° | 30 | Wheel tread | mm | 2190 |
| Min. turning radius(outer side of the bucket) | mm | 6700 | Departure angle | ° | 30 |
| Min. turning radius(outer side of the tire) | mm | 6030 | Steering angle(left & right) | ° | 38 |
Overall dimension (standard configuration) mm 7930*3020*3420
Core components
| Engine | Drive System | ||
| Model | Wei chai WD10G220E23 | Torque converter type | double turbine, 4 elements |
| Type | vertical, in-line, direct injection, water cooling, four-stroke, turbo charged | Transmission type | planetary power shift |
| Rated power | 162KW | Gears | 2 forward,1reverse |
| Main drive type | spiral bevel gear, first reduction | ||
| Hub reduction type | planetary | ||
| Drive axle | dry type axle | ||
| Steering System | Braking System | ||
| Type | load sensing hydraulic | Service brake | Air-over-oil caliper disc |
| Oil pump type | gear pump | Parking brake (emergency brake) | flexible shaft caliper disc |
| Working Device Hydraulic System | Tire | ||
| Control type | joystick | Specification | 23.5-25 |
| Oil pump type | gear pump | Tread pattern | general pattern |

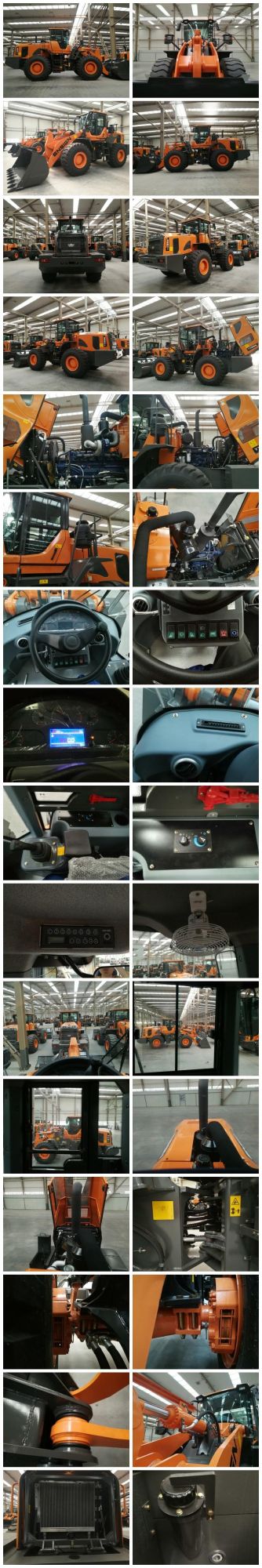

Detailed photos:
Main features:
Strong Power
- Tire
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,high quality component ,advanced production line and strict quality control system.
2). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of ENSIGN' s warm reception, trustworthy and efficient professional services and persistent care.
Other terms:
1). Delivery: 10-30 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF or CFR your destination for your choice
