Product Description

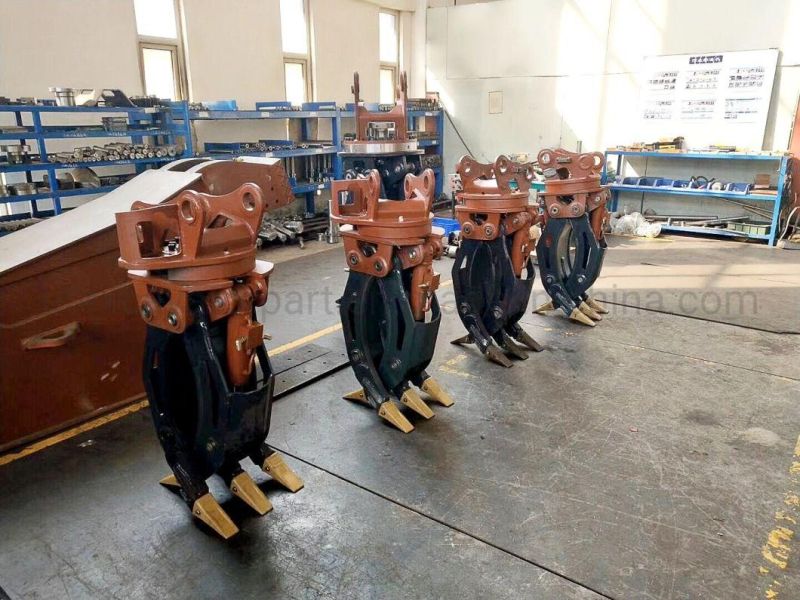

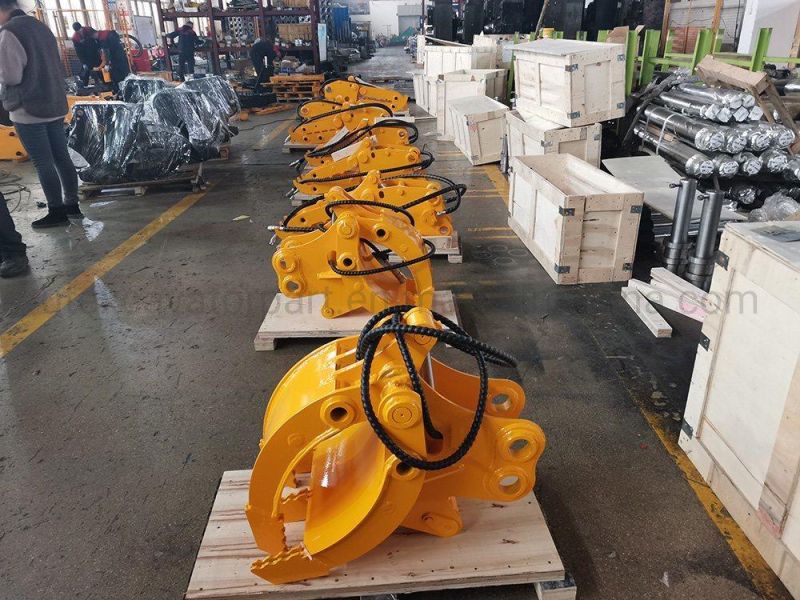

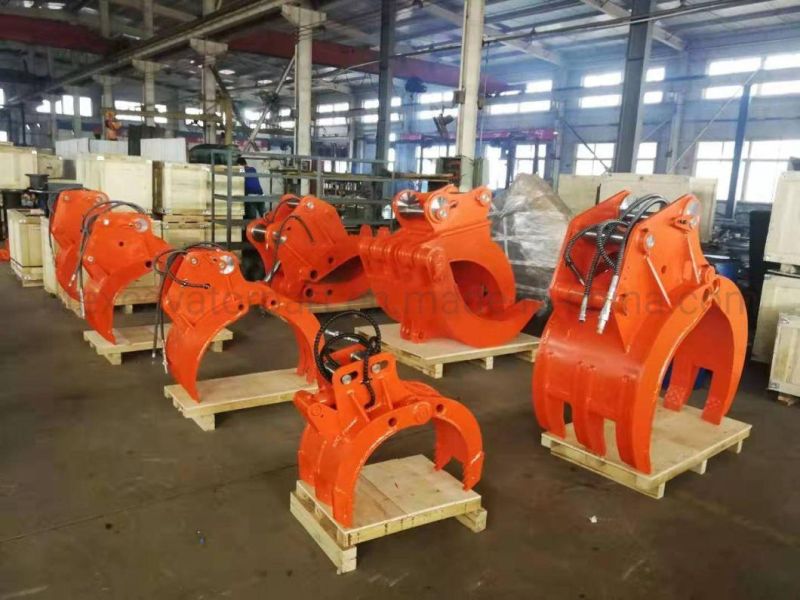

Single-cylinder Grapple

Features :
1.The single-cylinder grapple is a wood grabbing machine specially developed for shrubs. It has the characteristics of light weight, large amount of grasping, flexible operation and so on.
2.It can be used for crops such as straw, reed, fine wood, etc.
3.Throttle, pressure reducing valve, relief valve (all valves are USA SUN brand)are in electrical and hydraulic control
SUN,.,
4.Driven by M+S motor with brake valve ,cylinder with USA safety valve (USA SUN brand) M+S,SUN
5.Custom service is avalilable



Item/Model /	Unit	UTLG03	UTLG04	UTLG06	UTLG08	UTLG10
Weight	kg	200	350	710	1250	1450
Max.jaw opening	M/m	1200	1400	1700	2200	2300
Oil pressure	Kg/cm²	110-140	120-160	150-170	160-180	160-180
Set up pressure	Kg/cm²	120	120	120	120	120
Operating flux	L/min	30-55	50-100	90-110	100-140	130-170
Cylinder volume	ton	4.0x1	8.0x1	8.0x1	9.7x1	12.0x1
Suit Excavator	ton	4-6	7-11	12-16	17-23	24-30

The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
