• Model NO.：TU305
• Production Capacity：200 Units,Year

Basic Info.

Model NO. TU305 Production Capacity 200 Units/Year

Product Description








Technical Data of TU305 Utility Vehicles

1.1 Configuration of the Integrated Equipment
Engine
       Manufacturer              DEUTZ
       Type                     F6L912W
       Design                   air-cooled diesel engine two-stage combustion
       Max power                63 kW/2300 rpm
       Max torque                275 Nm/1600 rpm
       Air intake system           Dry air filter
       Exhaust system             Silencer/exhaust gas catalyst
transmission /Torque converter
       Manufacturer              CLARK
       Type                     1201FT20321
[3] Axles
Manufacturer              Clark
Type                     HURTH112
Design                    rigid planetary axles with differential gear
Rear axle swing angle        ±10⁰
[4] Design of brake system
Design of service brake         multi-disk brake, externally cooled
Design of parking brake          spring brake operated disk brake,
 Hydraulically released
[5] Hydraulic system
Front and rear is articulated
Steering hydraulic system
Number of steering cylinders     1



1.2 Characteristic

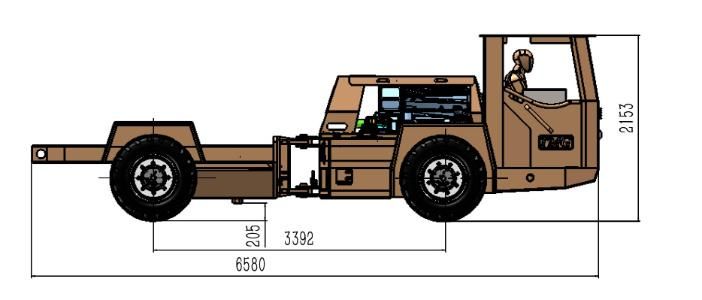

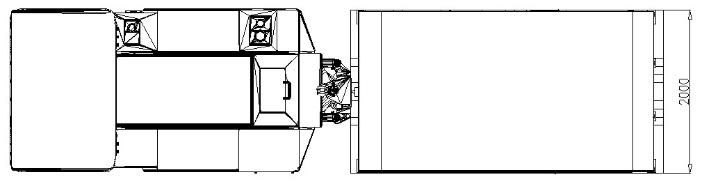

Main dimensions
       Length                       6612 mm
       Width                        1800 mm
       Height (above driver's canopy)    2000 mm
       Distance between shaft:          3412mm
Distance between wheel:         1508mm
Min. distance from ground:       260mm

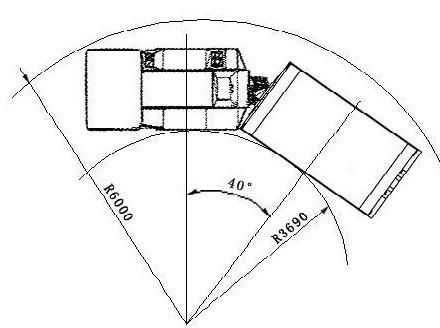

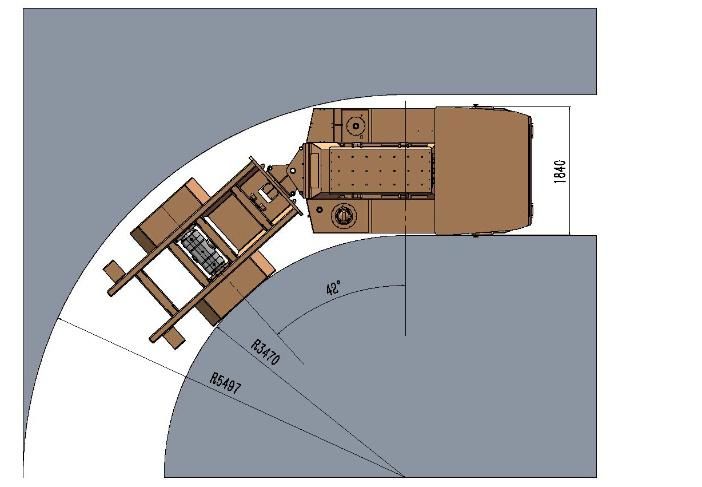

Inner clearance circle            3800 mm
       Outer clearance circle            5780 mm
       Swing angle                   ±10⁰
       Steering angle                  42⁰±2⁰

    Weights
       Operating weight                6600 kg
      Payload                       5000 kg
   Driving capacities
       Maximum driving speed, laden forward/reverse, on a level roadway
       1st gear                       0~4.8 km/h
       2nd gear                      0~10.0 km/h
       3rd gear                       0~22.0 km/h
Maximum admissible gradient     25⁰
