14ton Underground Mining Loader Scooptram Lhds
Qingdao Tunnel Mine Equipment Technology Co., Ltd.- Certification:Msha
- Condition:New
- Rated Load:>9t
- Transmission:Hydraulic - Mechanical
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
Base Info
- Model NO.:WJ7
- Type:Large Loader
- Transport Package:Flat Container
- Specification:12ton
- Trademark:TMG
- Origin:Qingdao
- Production Capacity:200 Units,Year
Description
Basic Info.
Model NO. WJ7 Type Large Loader Transport Package Flat Container Specification 12ton Trademark TMG Origin Qingdao Production Capacity 200 Units/YearProduct Description

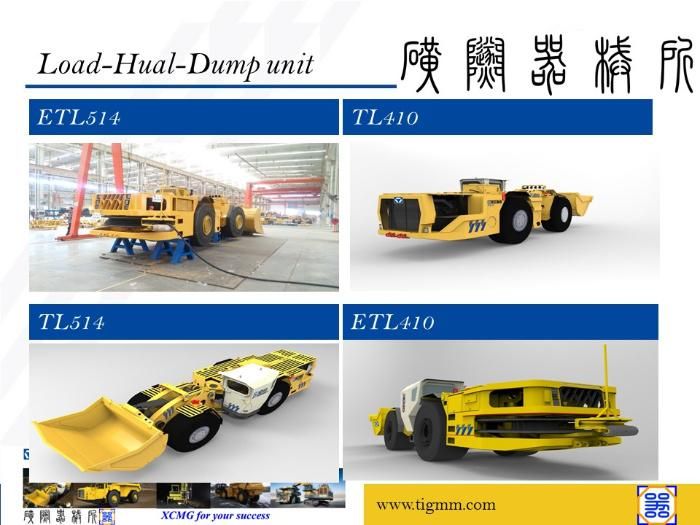

Diesel LHD
Technical Data

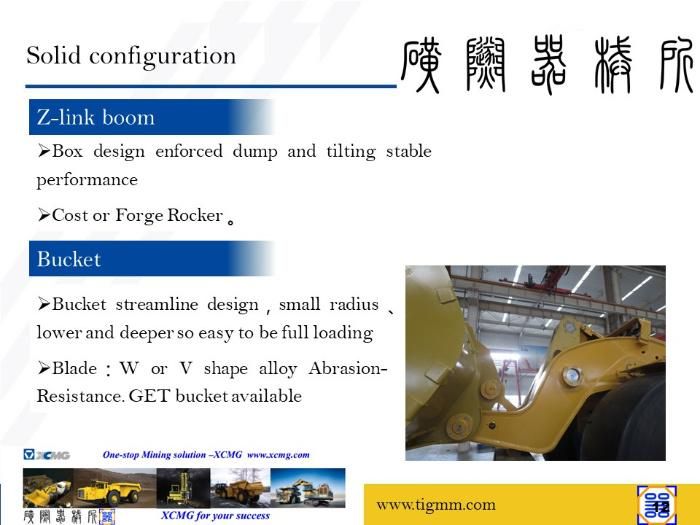

1.1 Configuration of the Integrated Equipment

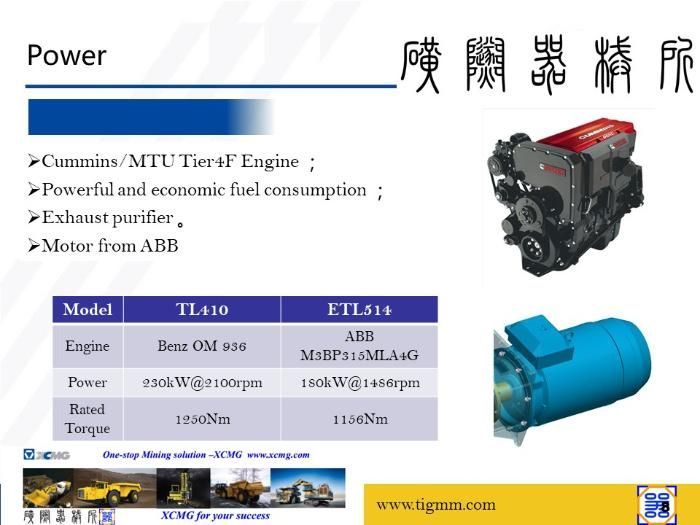

Engine
Manufacturer:DEUTZ
Type:F12L413FW
Design:air-cooled diesel engine two-stage combustion
Max power :204 kW/2300 rpm
Max torque:950 Nm/1500 rpm
Air intake system:Dry air filter
Exhaust system:Silencer/exhaust gas catalyst
Torque converter
Manufacturer:CLARK
Type:Series 8000
Design:single-stage industrial type with auxiliary
drives for steering and dump/hoist
hydraulic systems

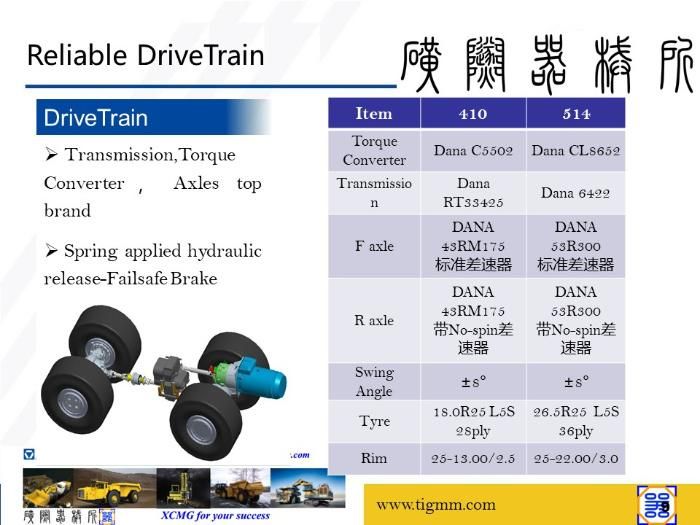

Power shift transmission
Manufacturer:DANA
Type:Series 50000
Design:power shift transmission with 4 forward and 4 reverse gears each

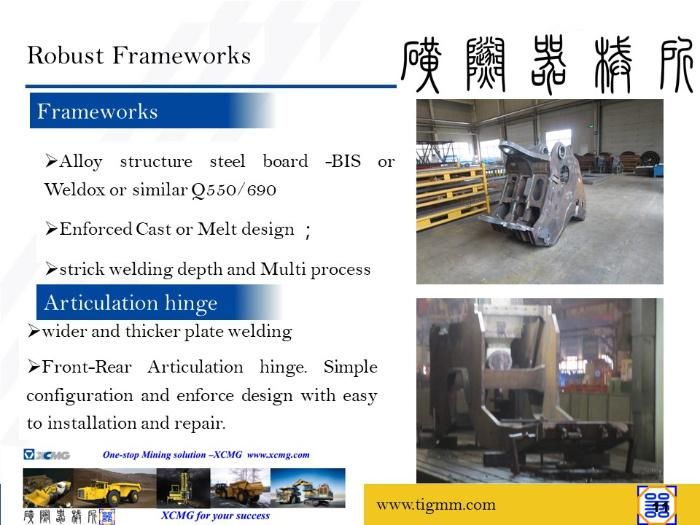

Axles
Manufacturer:DANA
Type:21D4354
Design:rigid planetary axles with differential gear
Rear axle swing angle:±80

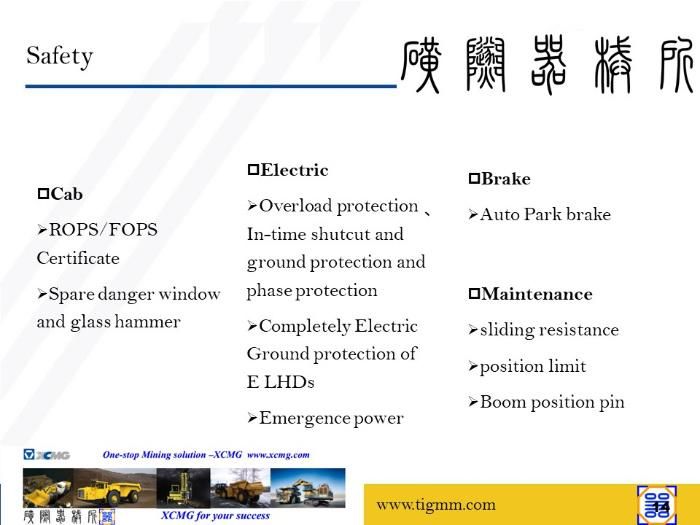

Design of brake system
Design of service brake:multi-disk brake, externally cooled
Design of parking brake:spring brake operated disk brake,
Hydraulically released
SAHR Brake as Optional

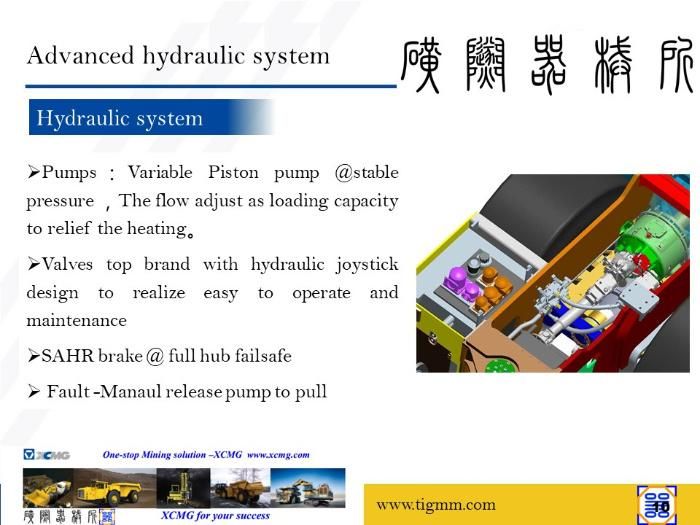

Hydraulic system
Dump/hoist hydraulic system
Pump delivery flow: 88.5+44.2 cm3/U
System pressure:200 bar
Number of hoist cylinders:2
Number of dump cylinders:1
Boom raising:6.1 sec
Bucket raising, from dumping position:5.1 sec
Steering hydraulic system
Pump delivery flow:88.5 cm3/U
System pressure:175 bar
Number of steering cylinders:2
Wheels and tires
Rim:22.00-25
Tires:26.5-25
Tire filling pressure(front/rear):7.0 bar/3.5 bar

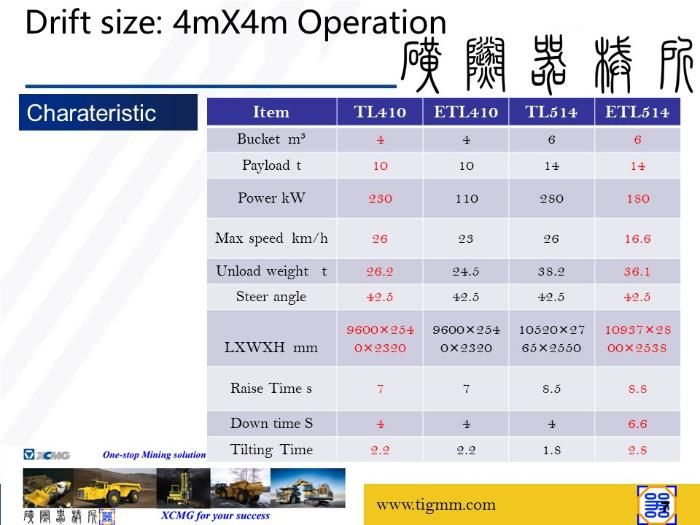

1.2 Performance of the Integrated Equipment
Main dimensions
Length:10455±100 mm /10600±100 mm
Width:2795±50 mm
Height:1825±50 mm
(above driver's canopy):2400 mm
Bucket capacity (SAE, heaped):6 m3
Max hoist height:5225±50 mm
Max unlading height:1630±50 mm
Unlading angle:40°±2°
Inner clearance circle:3690±250 mm
Outer clearance circle:7220±250 mm
Steering angle:420±20
Weights
Operating weight:34450 kg
Payload:14000 kg
Front-axle load, unlade:16600 kg
Rear-axle load, unlade:17850 kg
Front-axle load, laden:38500 kg
Rear-axle load, laden:9950 kg
Driving capacities
Maximum driving speed, laden forward/reverse, on a level roadway
1st gear:0~4.1 km/h
2nd gear:0~7.8 km/h
3rd gear:0~14.6 km/h
4th gear:0~27.1 km/h
Maximum admissible gradient:25%
Maximum tractive force:354 kN

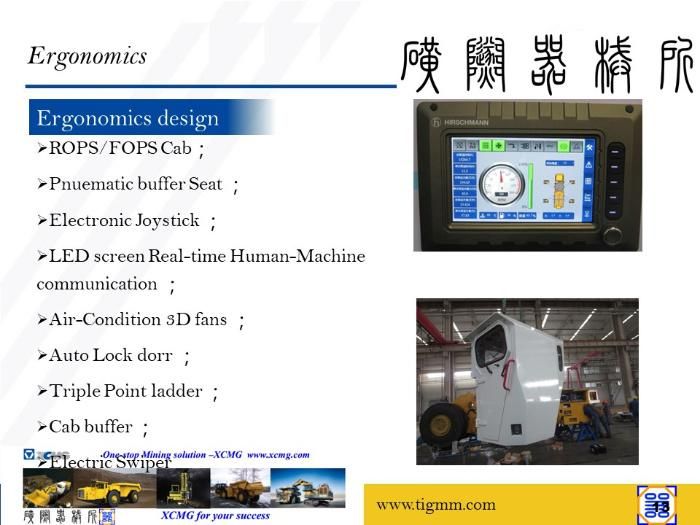

Electrical equipment
Operating voltage:24 V
Alternator:28 V/55 A
Battery:2×12 V/165 Ah
Main/reversing headlights:50 W
Filling volumes
Fuel tank:300 l
Hydraulic tank:275 l
Engine with oil filter:38 l
Torque converter/power shift transmission circuit:58 l
Front axle differential gear:60.5 l
Front axle planetary gear:2x9.5 l
Rear axle differential gear:60.5 l
Rear axle planetary gear:2x9.5 l
