China Fca Fob CIF Price Concrete Pump 30 M 56 M 63 M Syg5340thb Sinotruk Benz Chasis (56X-6RZ)

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：Online Support or Field Maintenance
  • Warranty：One Year Warranty Service
  • Type：Concrete Pump
  • Shotcrete Type：Wet
  • Machining Process：Hydraulic
  • Structure：Cylinder Type

Base Info

  • Model NO.：56X-6RZ
  • Productivity：180m²,h
  • Feeding Height：1400mm
  • Vibrating Amplitude：0.4 M
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Green
  • Max. Theorical Output：180 M3,H
  • Max. Pressure on Concrete：113 Bar
  • Conc. Cylinders (Diam. X Stroke)：260X2100 mm
  • Concrete Hopper Capacity：600 L
  • Maximum Vertical Reach：56 M
  • Transport Package：Roro or Nude Packing
  • Trademark：Zoomlion
  • Origin：Hunan, China
  • Production Capacity：100units,Month

Description

Overview Product Description

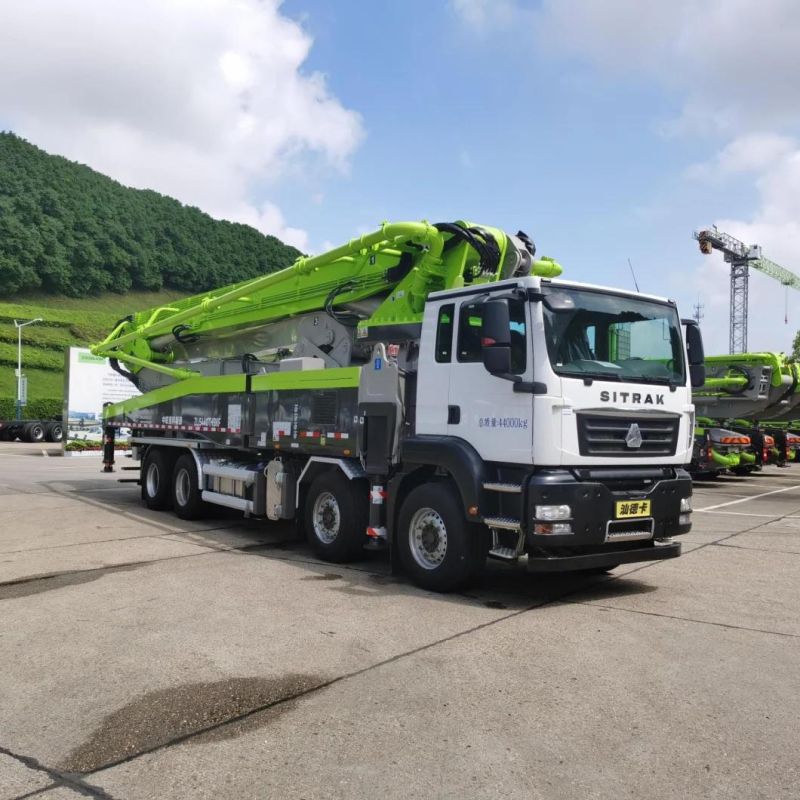

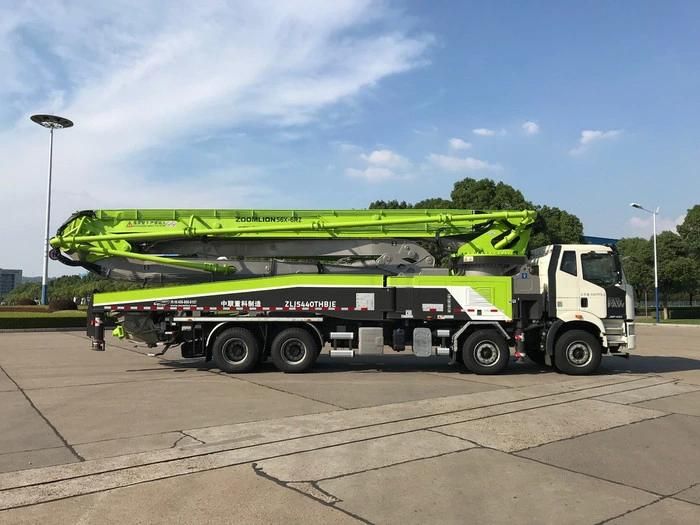

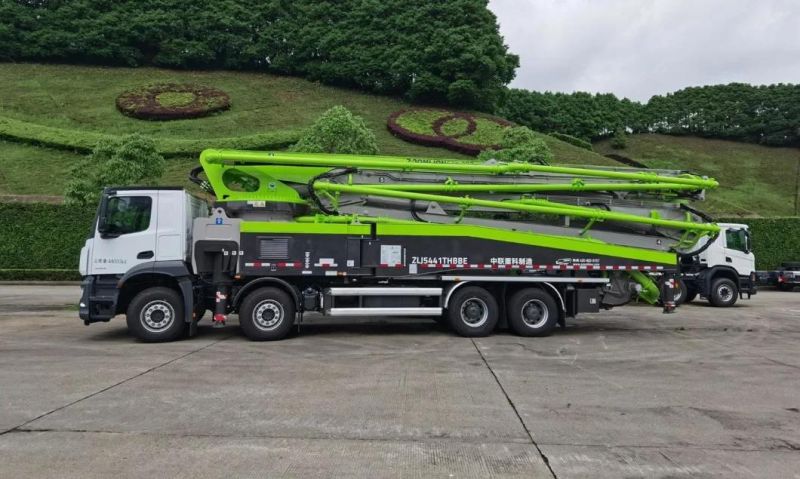

Detailed Photos

China Fca Fob CIF Price Concrete Pump 30 M 56 M 63 M Syg5340thb Sinotruk Benz Chasis (56X-6RZ)China Fca Fob CIF Price Concrete Pump 30 M 56 M 63 M Syg5340thb Sinotruk Benz Chasis (56X-6RZ)China Fca Fob CIF Price Concrete Pump 30 M 56 M 63 M Syg5340thb Sinotruk Benz Chasis (56X-6RZ)

Product Parameters







Pump Unit

Maximum theorical outputm3/h        180Maximum pressure on concrete                 bar113Conc. cylinders (diam. x stroke)mm260x2100Concrete hopper capacityL600Hydraulic circuit closed







Boom Section

Maximum vertical reachm56Maximum horizontal distancem51Minimum unfolding heightm15.8Section numbers 6Rotating angle ±270°End hose lenghtm3Company Profile
