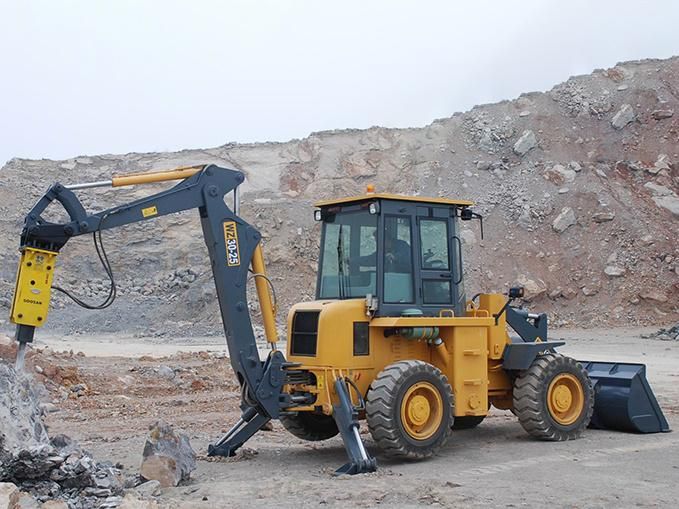

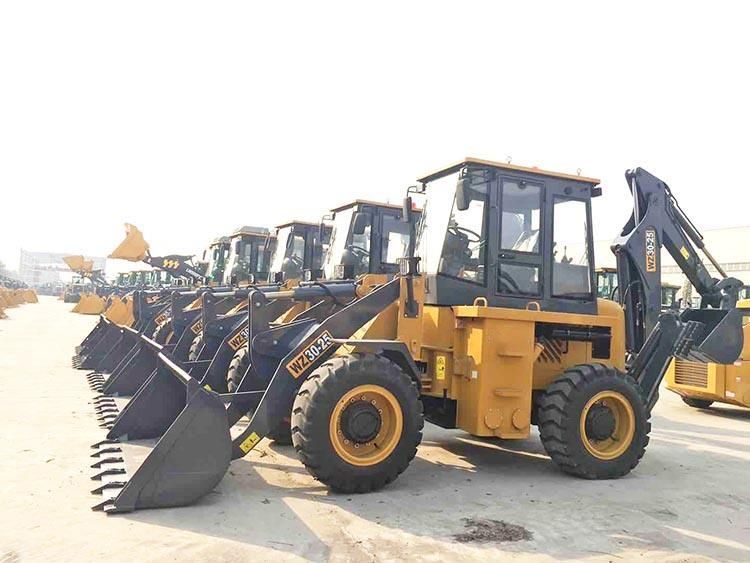

China Tractor with Loader and Backhoe Wz30-25 for Sale
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Provide
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
Base Info
- Model NO.：Wz30-25
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Small Loader
- Transport Package：Sea
- Origin：China
Description
Overview
Contact Information
Product Description
Operating range
Loader part
A
Maximum bucket reach
3850 mm
B
Maximum loading height
3300 mm
C
Maximum loader dumped height
2550 mm
D
Dumping distance from bucket to fender
810 mm
E
Maximum digging depth
20-25 mm
F
Ground clearance
300 mm
Backhoe part
I
Maximum dumping height
4350 mm
J
Maximum bucket reach
5350 mm
L
Maximum digging depth
4010 mm
M
Maximum digging reach from pivot point
5350 mm
N
Maximum digging reach from rear axle
5467 mm
Engine Yunnei
No. of cylinders, type
4 cylinders in line, Turbo-charged. water cooled
Bore and stroke
102x120 (mm)
Displacement
3.261L
Rated power/rotating speed
76 kw / 2200rpm
