China EXW Fca Fob CIF Price Shantui Cable Stacker Pipelayer with Optional Attachments Sp45y Sp70y for Sale (SP25Y)
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Support and Field Maintenance
- Warranty：One Year Warranty
- Type：Special Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：SP25Y
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Orange
- Engine Model：Wd10 Sdec Sc11CB
- Rated Power/Rated Speed (Kw/Rpm)：120,1850
- Suspension Mode：Rigid Crossbeam Structure
- Maximum Lifting Capacity：25 Ton
- Operating Weight (Kg)：22 Ton
- Transport Package：Roro or Bulk-Cargo Vessel
- Specification：4000mm*3050mm*2954mm
- Trademark：Shantui
- Origin：Shandong, China
- HS Code：87169000
- Production Capacity：100units,Month
Description
Overview
Product DescriptionProduct SP25Y Performance parameters Operating weight (Kg) 22000 Maximum lifting capacity(T) 25 Rated power of engine(kw) 120Kw Minimum turning radius (mm) 2950mm Ground pressure (Mpa) 0.07 Engine Engine model WD10SC11CB Number of cylinders× cylinder diameter× stroke(mm×mm) 6-126x1306-121x152.4 Rated power/rated speed (kw/rpm) 120/1850 Maximum torque (N.m/r/min) 746±6%/810±6% Overall dimensions of machine Length (mm) 4000 Width (mm) 3050 Height (mm) 2954 Driving performance Forward gear 1/Reverse gear 1 (km/h) 0-3.29/0-4.28 Forward gear 2/Reverse gear 2 (km/h) 0-5.82/0-7.59 Forward gear 3/Reverse gear 3 (km/h) 0-9.63/0-12.53

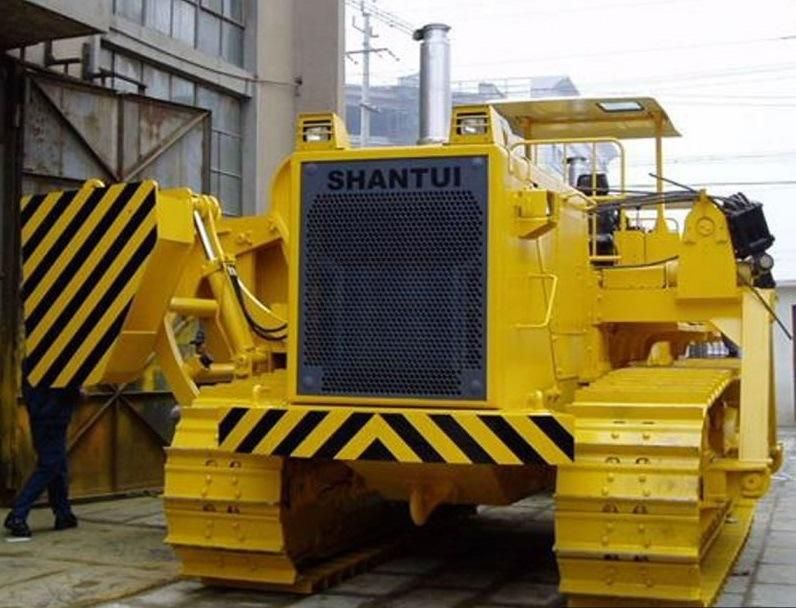

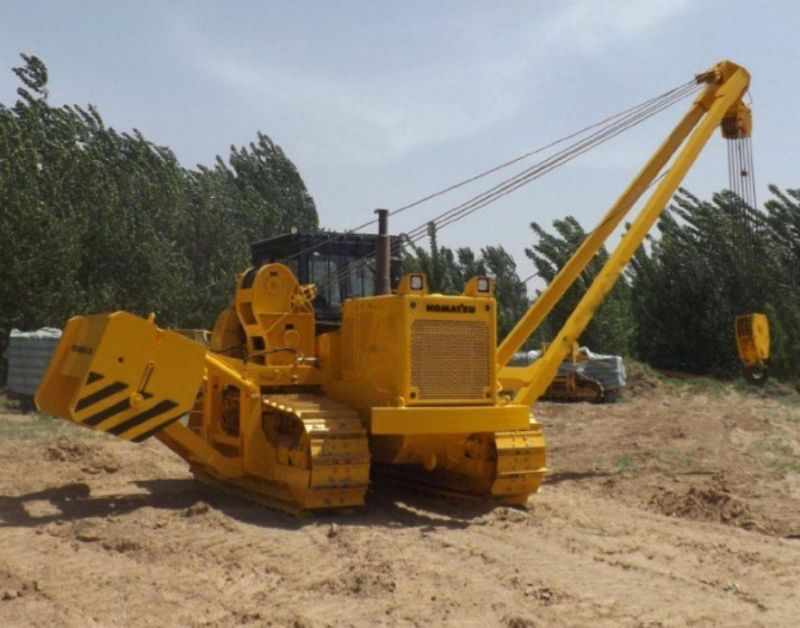

Detailed Photos
