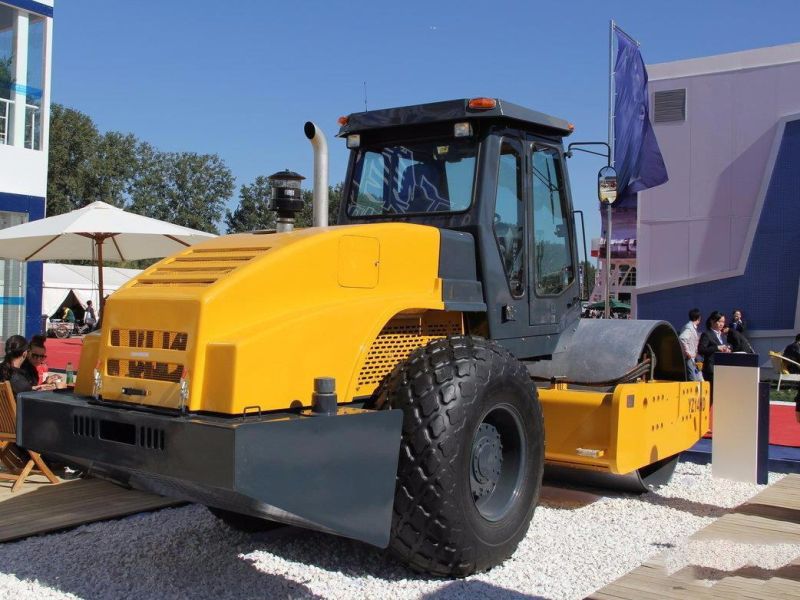

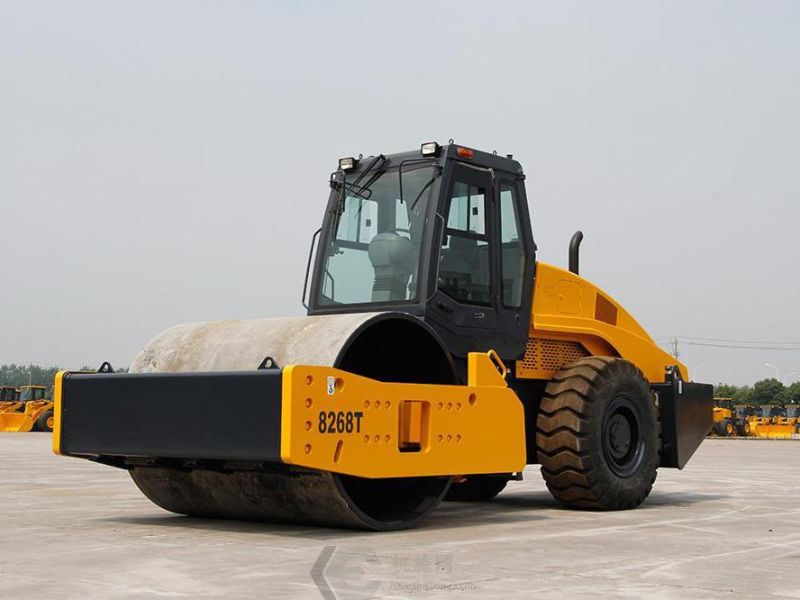

| Main Technical Specification |
| 1 | Static line force | 300N/cm |
| 2 | Dynamic line force | 1174 N/cm |
| 3 | Operating weight | 12000kg |
| 4 | Nominal Amplitude -high -low | 1.75mm 0.85mm |
| 5 | Centrifugal-Force -high -low | 250kN 125kN |
| 6 | Total stress force | 31500(kg) |
| 7 | Static Weight at Drum | 6500kg |
| 8 | Static Weight at Tires | 5500kg |
| 9 | Frequency | 32Hz |
| 10 | Min. turning radius(Outside of rear wheel) | 5880mm |
| 11 | Drum diameter | 1530mm |
| 12 | Drum width | 2130mm |
| 13 | Drum thickness | 25mm |
| 14 | Traveling speed(Km/h) | |
| | Stepless transmission | 0~12.1 |
| 15 | Gradient capacity | 20% |
| Diesel engine |
| 1 | Model | Dongfeng engine 6BT5.9-C150 |
| 2 | Type | Direct injection. Turbocharged. Water cooling |
| 3 | Rated output | 110 kW |
| 4 | Bore and stroke | 102X120mm |
| 5 | Total exhaust of cylinder | 5.9 (L) |
| 6 | Rated speed | 2200(r/min) |
| 7 | Max. Torque | 580(N.M) |
| 8 | Starting type | Electric |
| 9 | Min. specific fuel consumption | 229(g/Kw.h) |
| 10 | Net weight | 430(kg) |
| Driving System |
| 1 | Model | Static Hydraulic stepless driving |
| 2 | Type | Drive pump +drive motor + reducer |
| 3 | Model of drive pump | A4VG90HWDL1/32R |
| 4 | Model of drive motor | AA2FM80/61W |
| 5 | System pressure | 40MPa |
| 6 | Type of reducer | Spur gear parallel shaft constant-mesh |
| 7 | Gear ratio of reducer | 2.94 |
