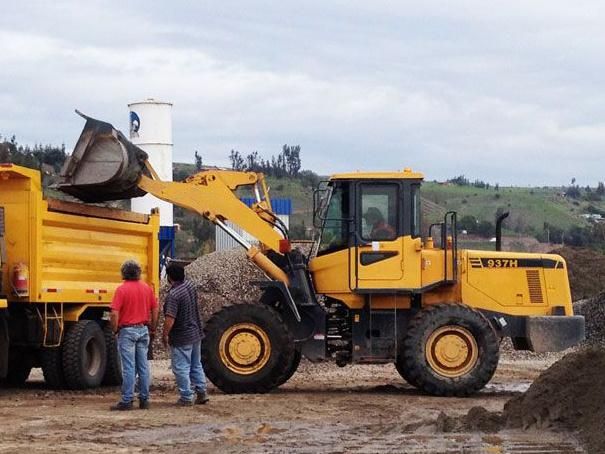

• Model NO.：937H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：One Unit in One 40hq Container or Roro,Bulk Break
• Specification：7425*2305*3095MM
• Trademark：CHANGLIN
• Origin：China

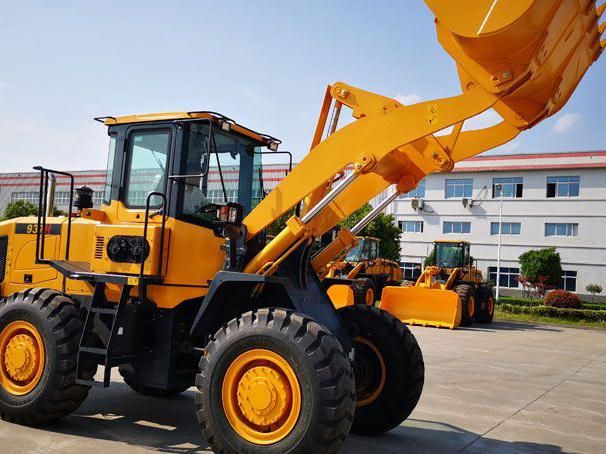

Changlin Wheel Loader

Model

Engine Model

Rated power

Standard bucket capacity

Operating weight

ZL30H

Dongfeng

87KW

1.7m³

10200kg

933

Yuchai YC6B125-T20

92KW

1.7m³

10200kg

947H

Dongfeng

128KW

2.3m³

13200kg

957H

Shangchai C6121

162KW

3.0m³

16700kg

967H

Shangchai

177KW

3.5m³

18600kg

Parameter:

Overall Dimension

1

Length(with bucket on ground)

7425(mm)

2

Width(to outside of wheels)

2305(mm)

3

Bucket width

2462(mm)

4

Height(To the top of the cab)

3095(mm)

5

Wheel base

2750(mm)

6

Tread

1855(mm)

7

Min. ground clearance

370(mm)

Main Technical Specification

1

Rated load

3000(Kg)

2

Operating weight

10200KG

3

Rated bucket capacity

1.7(m³)

4

Max. breakout force

96kN

5

Max. dump clearance

2850(mm)

6

Dump reach

1030(mm)

7

Dump angle at any position

≥45⁰

8

Min. turning radius

(1) Outside of bucket

5600(mm)

(2) Outside of rear wheel

5205(mm)

9

Pivot angle frame

38+1⁰

10

Oscillating angle of rear axle

+11^o

11

Lifting time of bucket

≤5.1(sec.)

12

Lowering time of bucket

≤3.0(sec.)

13

Dumping time

≤1.1(sec.)

14

Traveling speed(Km/h),3 forward and 3 reverse

(1) 1st gear forward

7.3

(2) 2nd gear forward

15.7

(3) 3rd gear forward

35

(1) 1st gear reverse

7.8

(2) 2nd gear reverse

16.8

(3) 3rd gear reverse

36
