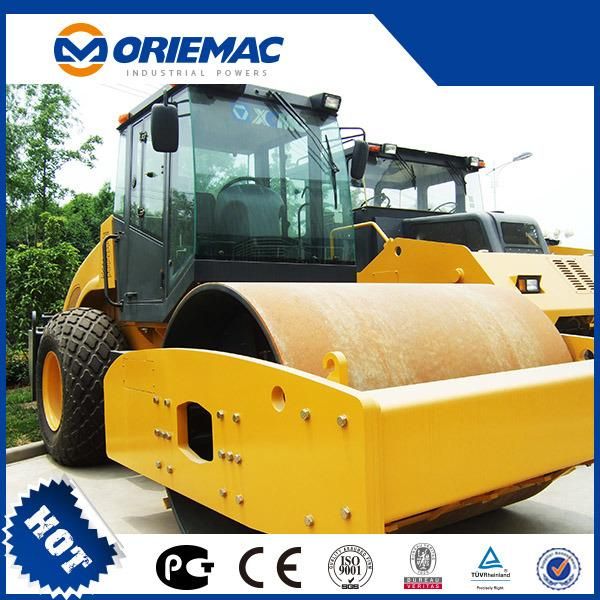

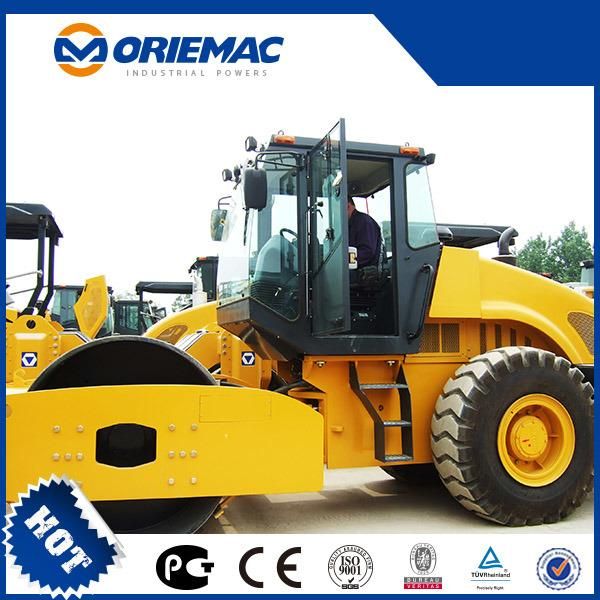

Popular Sale Hydraulic Vibratory Road Roller Xs142
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Steel Wheel
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
- Compaction Depth：30cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：Xs142
- Travel Speed：12km,H
- Centrifugal Force：40KN
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Power(W)：110kw
- Drum Diameter：1523mm
- Compacting Width：2130mm
- Transport Package：Nude Packing
- Specification：CE, ISO
- Origin：Jiangsu, China
- Production Capacity：500,Month
Description
Type
Unit
XS142
Operating weight
kg
14000
Load on front drum
kg
8200
Load on rear wheels
kg
5800
Drum width
mm
2130
Static linear load
N/cm
385
Vibration frequency(Low/High)
Hz
28/35
Nominal amplitude(High/Low)
mm
1.86/0.88
Excitation force(High/Low)
KN
305/225
Travel speed
km/h
0~12
Steering angle
°
±33
Swing angle
°
±10
Theoretical gradeability
%
55
Min. external turning radius
mm
6415
Engine model
B5.9
Engine power
kw
110
Rated engine speed
r/min
2200
Engine oil consumption
g/kW.h
232
Hydraulic oil tank capacity
L
240
Fuel tank capacity
L
240
