Engineering & Construction Machinery

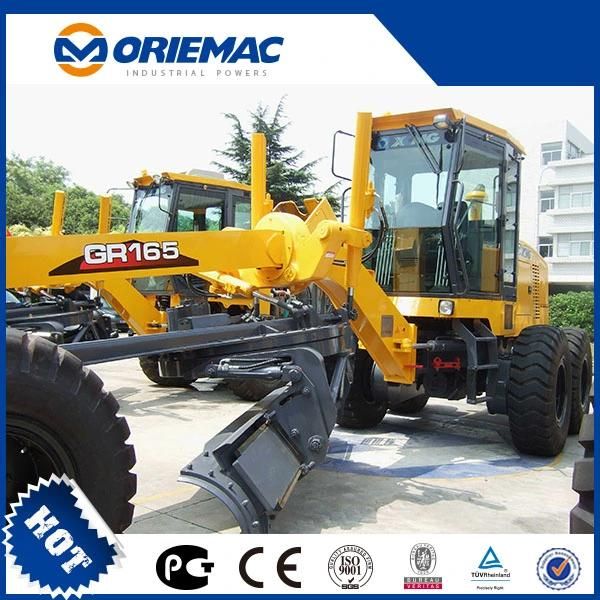

2017 Best Discount Gr165 Grader Price

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Forward Speed:34.2 Km,H
  • Ripper:5 Tooth
  • Engine Model:D6114
  • Transport Package:Nude Packing
  • Specification:CE, ISO
  • Origin:Jiangsu, China

Base Info

  • Model NO.:GR165
  • Production Capacity:500,Month

Description

Basic specification

Engine modelD6114Rated power/speed125kW/2300rpmDimension(LxWxH)8900×2625×3470mmOperating weight(Standard)15000kg

Performance specification

Travelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)77KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3965×610mm2017 Best Discount Gr165 Grader Price
