• Model NO.：XS142J
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Weight on Front Drum：7000kg
• Static Linear Pressure：322n,Cm
• Theoretical Gradeability：30%
• Transport Package：Nude
• Specification：14000 kg
• Origin：Jiangsu, China.
• Production Capacity：200 Units,Month

Basic Info.

Model NO. XS142J Travel Speed 40cm/s Centrifugal Force 40KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Weight on Front Drum 7000kg Static Linear Pressure 322n/Cm Theoretical Gradeability 30% Transport Package Nude Specification 14000 kg Origin Jiangsu, China. Production Capacity 200 Units/Month

Product Description

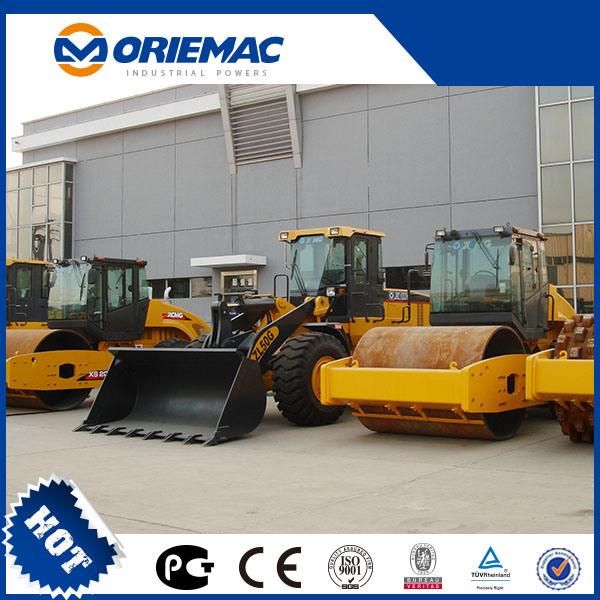

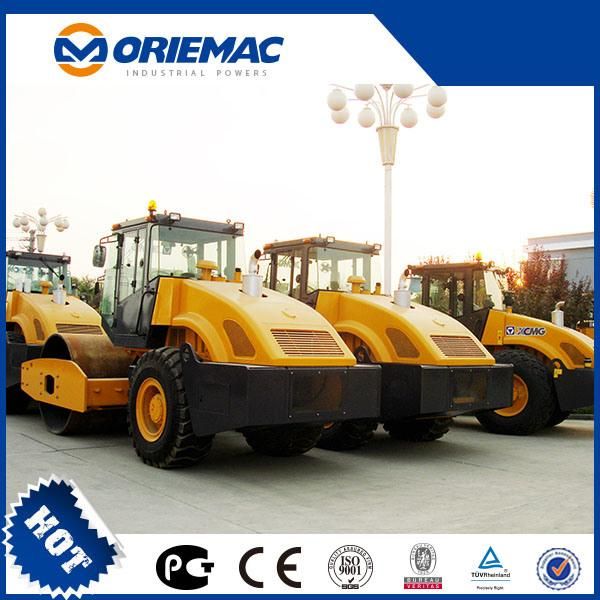

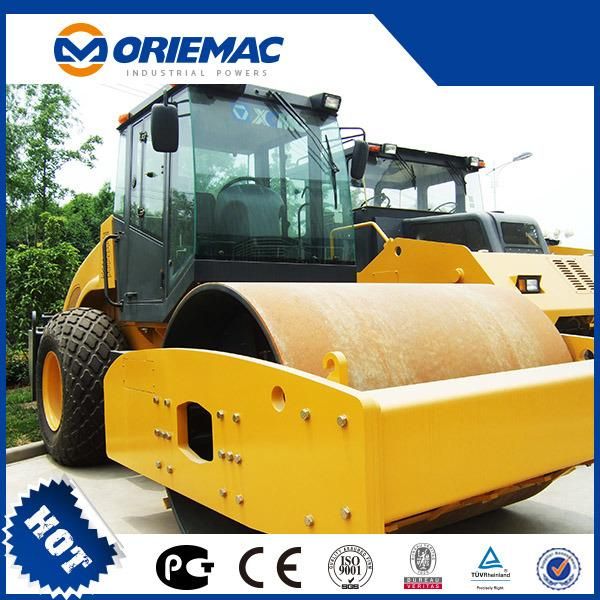

Famous Chinese brand 14 Ton Mechanical Single Drum Road Roller XS142J

1. Drum width 2130mm
2. Engine Cummins 4B3.9 110kw


Feature:
XS142J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.

Performance feature
The spacious and bright cab features wide view and comfort.

Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.

Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.

Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.

Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.


Model	Unit	XS142J
Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		Shanghai Diesel Engine D4114
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180
