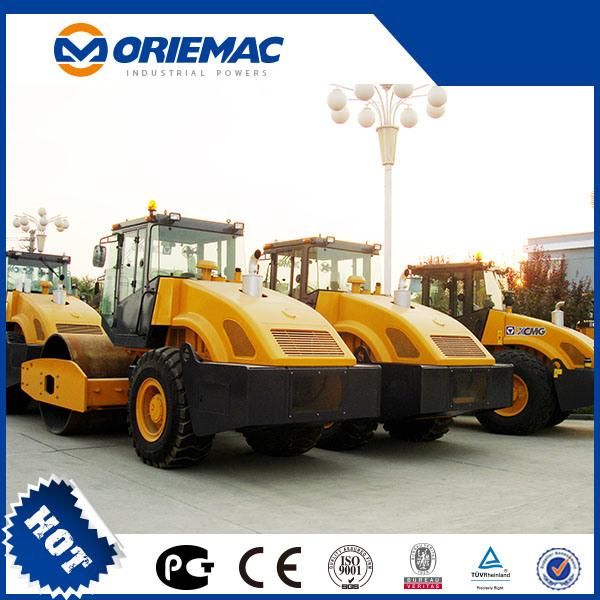

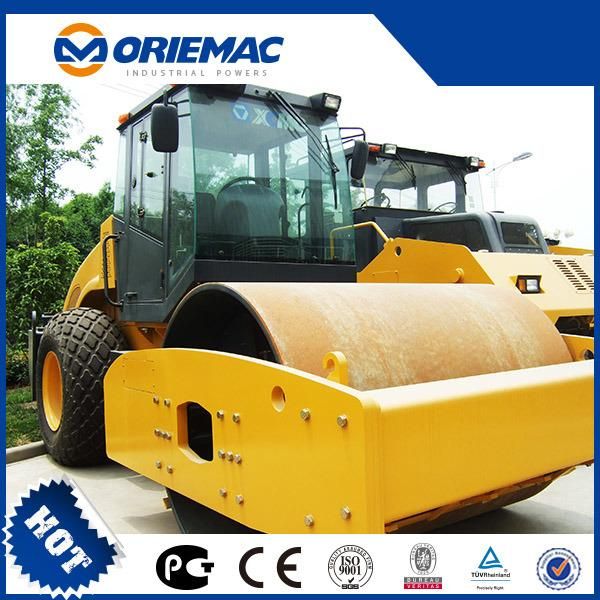

Vibratory Xs143j Compactor Road Roller

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Type：Road Roller
Working Method：Steel Wheel
Axle：Biaxial Dual-Drum
Grinding Wheel Type：Tire Grind
Compaction Depth：40cm
Engine Type：Diesel Engine

Base Info

Model NO.：xs143j
Travel Speed：30cm,s
Centrifugal Force：27KN
Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition：New
Static Linear Load：315n,Cm
Nominal Amplitued：1.9,0.95mm
Drum Diameter：1523mm
Transport Package：Nude
Specification：6010*2340*3200 mm
Origin：Jiangsu, China.
Production Capacity：200 Units,Month

Description

ModelUnitXS143JOperating weightkg14000Weight on front drumkg7000Static linear pressureN/cm322Speed rangekm/h Speed I 2.7Speed II 4.8Speed III 10.5Theoretical gradeability%30Min. external turning radiusmm6800Steering angle°±30Oscillating angle°±11Vibration frequencyHz28Nominal amplitude (high/low)mm1.9/0.95Excitation force (high/low amplitude)kN274/137Engine model SC5D125G2B1TypeWater cooled, pressurizedWater cooled, pressurizedMax. powerkW92@2200r/minEngine oil consumptiong/kW.h230Hydraulic oil tank capacityL170Fuel tank capacityL180

Vibratory Xs143j Compactor Road Roller

Vibratory Xs143j Compactor Road Roller

Vibratory Xs143j Compactor Road Roller

Vibratory Xs143j Compactor Road Roller

Vibratory Xs143j Compactor Road Roller

Vibratory Xs143j Compactor Road Roller

Vibratory Xs143j Compactor Road Roller
