• Model NO.：LW300KN
• Bucket Capacity：1.5~2.5m3
• Dump Clearance at Maximum Lift：2770~3260mm
• Power(W)：92kw
• Specification：7245*2482*3320mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：10000

Basic Info.

Model NO. LW300KN Bucket Capacity 1.5~2.5m3 Dump Clearance at Maximum Lift 2770~3260mm Power(W) 92kw Specification 7245*2482*3320mm Trademark XCMG Origin Xuzhou, Jiangsu, China Production Capacity 10000

Product Description

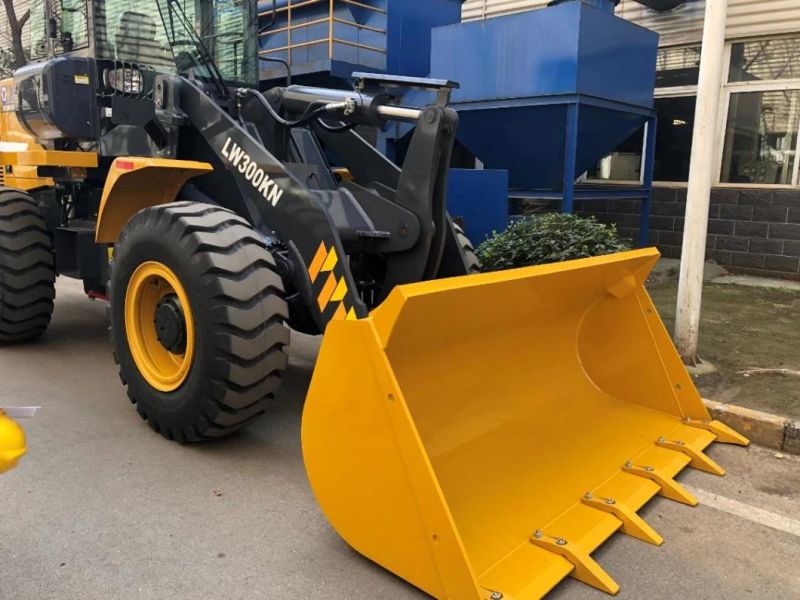

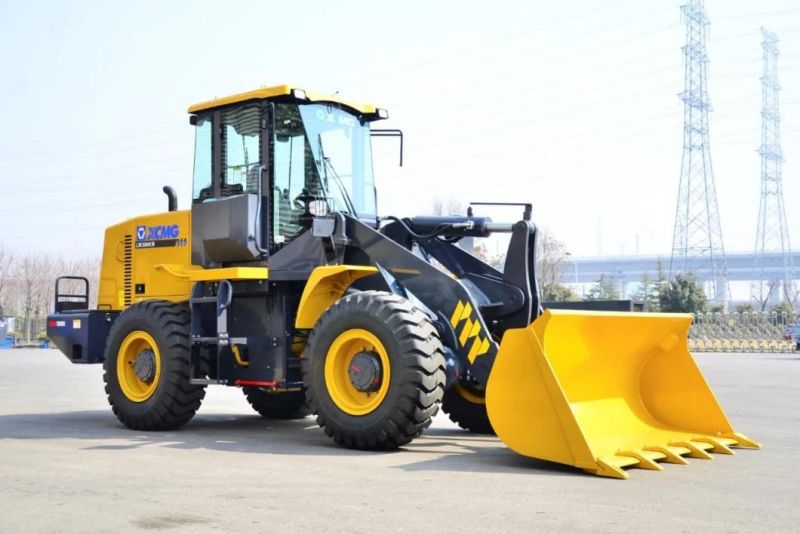

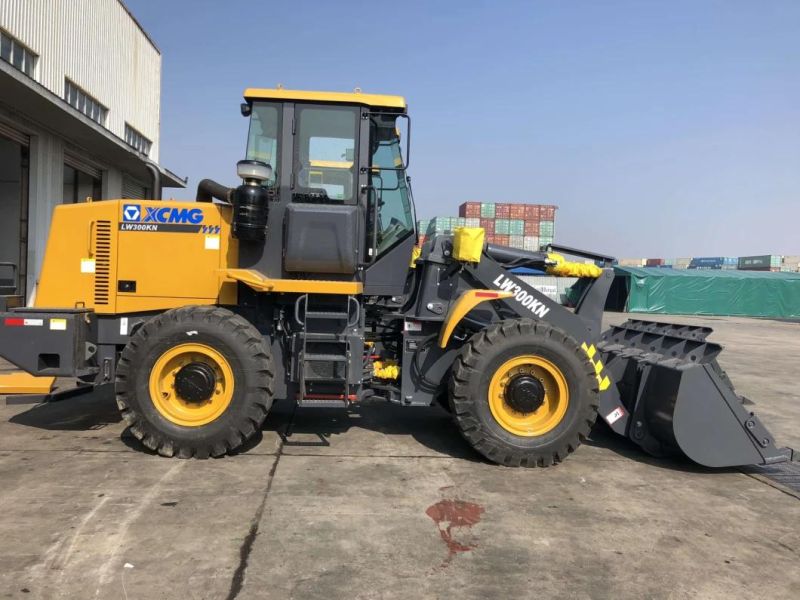

XCMG Front End Loader 3 Ton RC Wheel Loader LW300KN.

Main parameters
Rated load :3 tons
Bucket capacity :1.5-2.5 m3
Dumping height: 2770~3260mm
Operating weight: 10900KG

Main configuration
* DEUTZ engine WP6G125E201(92kw)
* Dry drive axle

Optional parts:
A/C/ 1.8m3 Blade bucket/ 2.1m3 Lignt material Blade bucket/ 2.5m3 Lignt material Blade bucket / 1.8m3 Reinforced bucket.

LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability. With the features of maturity and reliability of the old model, LW300KN is improved all round, and leads in the same kind of product.

The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions. Great strength Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.


Description	Unit	LW300KN
Rated operating load	kg	3000
Bucket capacity	m³	1.5~2.5
Machine weight	kg	10900±200
Dump clearance at maximum lift	mm	2770~3260
Reach at maximum lift	mm	1010~1210
Wheel base	mm	2900
Tread	mm	1850
Height of hinge at maximum lift height	mm	3830
Working height(fully lifted)	mm	4870
Max.breakout force	kN	130
Max.horse power	kN	95
Hydraulic cycle time-raise	s	5.4
Total hydraulic cycle time	s	9.3
Min. turning radius over tyres	mm	5170
Articulation angle	°	38±1
Gradeability	°	28
Tyre size		17.5-25-12PR
Overall machine dimension L×W×H	mm	7245×2482×3320
Model		WP6G125E201
Emission standards		Emission 2
Rated Power/Speed	kW/rpm	92/2000
