• Model NO.：BY800
• Condition：New
• Color：Red
• Transport Package：Retort Stand
• Specification：CE
• Trademark：G-Star
• Origin：China
• HS Code：87161000
• Production Capacity：300PCS,Month

Basic Info.

Model NO. BY800 Condition New Color Red Transport Package Retort Stand Specification CE Trademark G-Star Origin China HS Code 87161000 Production Capacity 300PCS/Month

Product Description

BY800 with CE  advantages:
1.Easy and comfortable operation due to the intuitive controls.

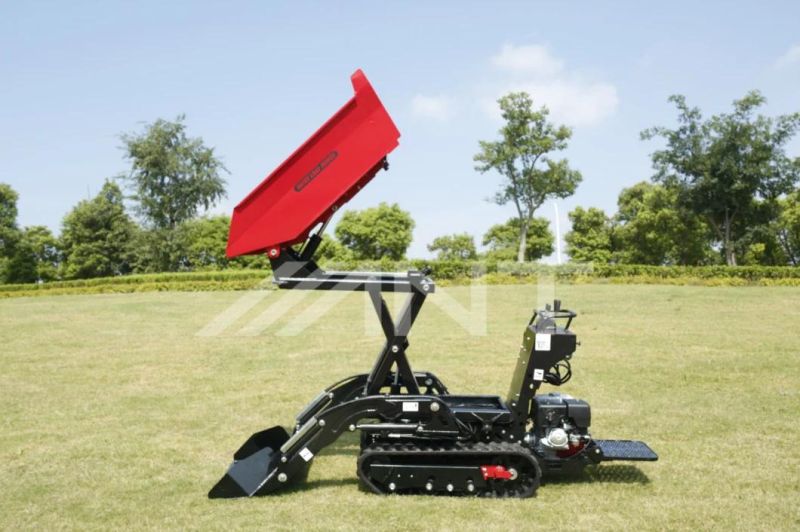

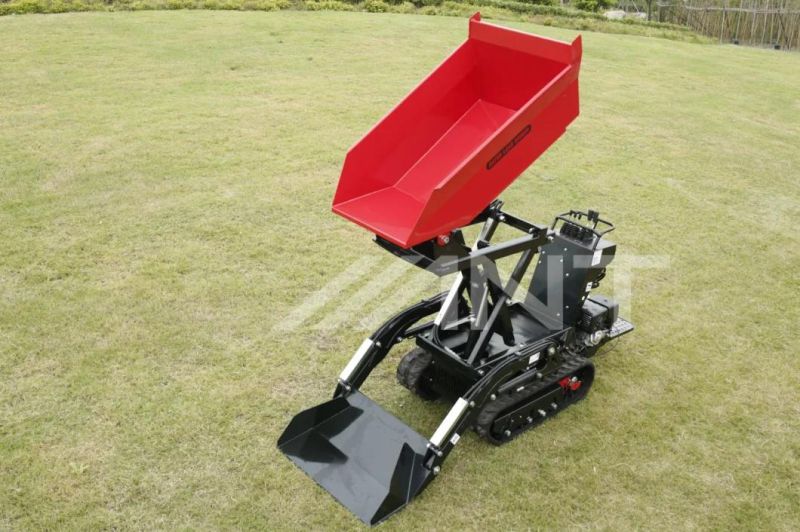

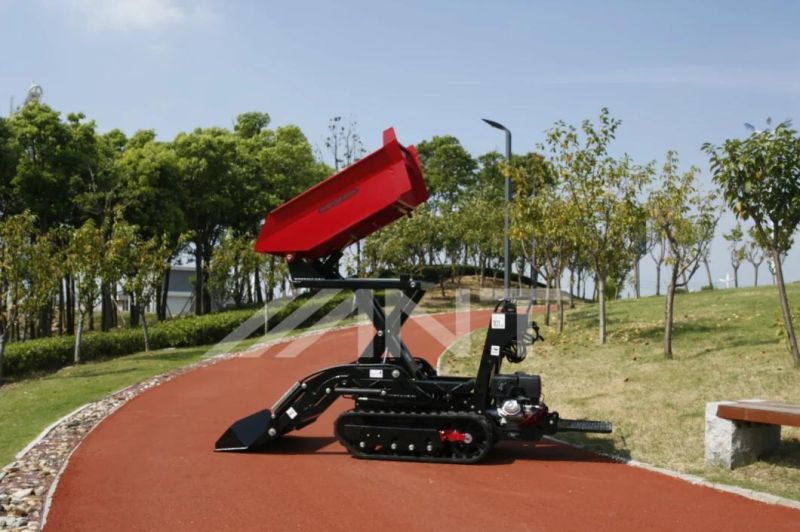

2.Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading. 3.Lifting height reaches to 1.4m by X-support.
4.Easy climbing and stable crossing the obstacles.
5.Spot turning, mini slipping.


Features
1.Exclusive design with more humanized.
2.The main parts imported from Amercian,global warranty
3.Effortless load dumping ,good cares.

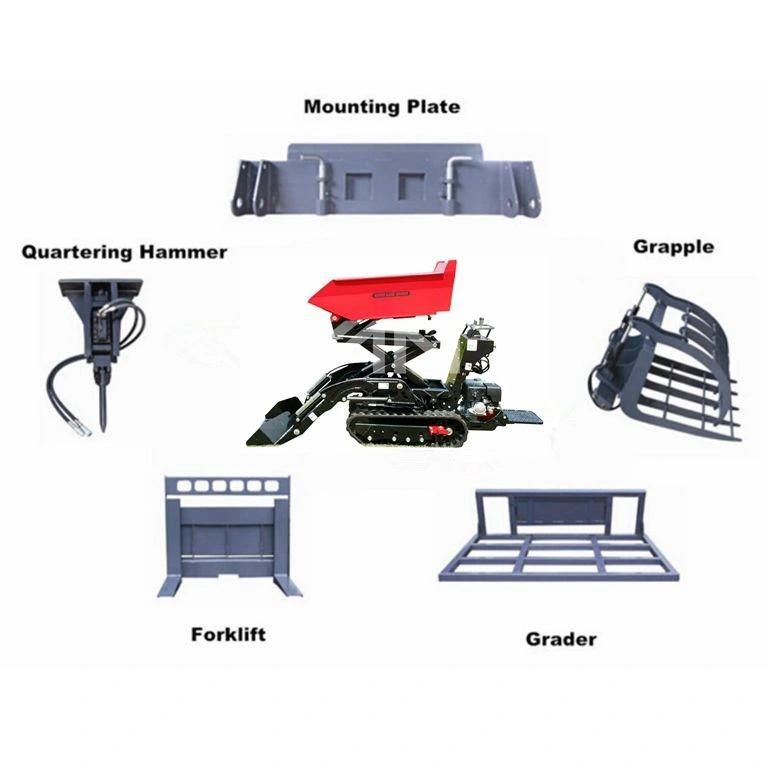

4.Refit to be a multifunction machine

Detailed Description
1.Steers as easily loaded as empty due to the intuitive controls
2.Working time in 150-200 hours
3.Maximum loading weight is 800kg,the drum could be raised up 1.4 meters by the X-lift
4.Exceptionally stable when climb over obstacles and up steep inclines .

Caution
1.Put down the ploughstaff before unloading.
2.Check the oil level,don't over 1/2 when filling the recommend oil.

Model	BY800
Engine	Honda GX390 13HP gasoline
Type	Hydra-static
Operative weight        kgs(lbs)	800 (1762)
Max travel speed        km/h(mph)	0-4.8(0-3.0)
Transmission
Hydraulic pump	2 x variable displ.
Flow                  Vmin(gpm)	2 x 32.4 (2 x 8.5)
Hydraulic motors	2 x orbital
Brake parking	Mechanical
Hydraulic systerm
Hydrauliac pump	Gear pump
Flow                 Vmin(gpm)	1 x 13.5 (1 x 3.5)
Hi-flow               Vmin(gpm)	1 x 22 (1 x 3.5)
Max pressure           bar(psi)	150 (2180)
Main valve	2-3 way
Cooled systerm	air-cooled
Skip tipping systerm	Hydraulic
Tracks
Standard track width     mm(in)	180 (7.1)
Track roller	3
Rocking rollers	Yes
Track tensioning	Yes

Company introduction

Nantong G-Star International Trading Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta

The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields.

Looking forward to your inquiry!
