• Model NO.：XP163
• Dimension(L*W*H)：4715X2055X3258
• Transport Package：Nude Packing
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• Production Capacity：500,Month

Basic Info.

Model NO. XP163 Dimension(L*W*H) 4715X2055X3258 Transport Package Nude Packing Trademark ORIEMAC Origin Jiangsu, China Production Capacity 500/Month

Product Description

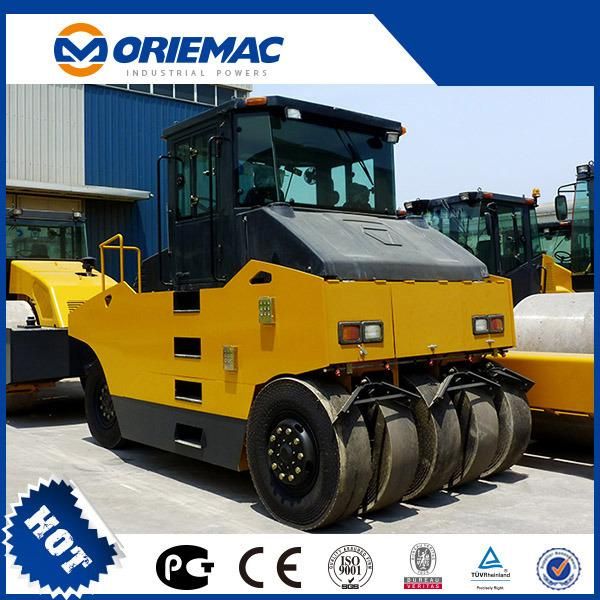

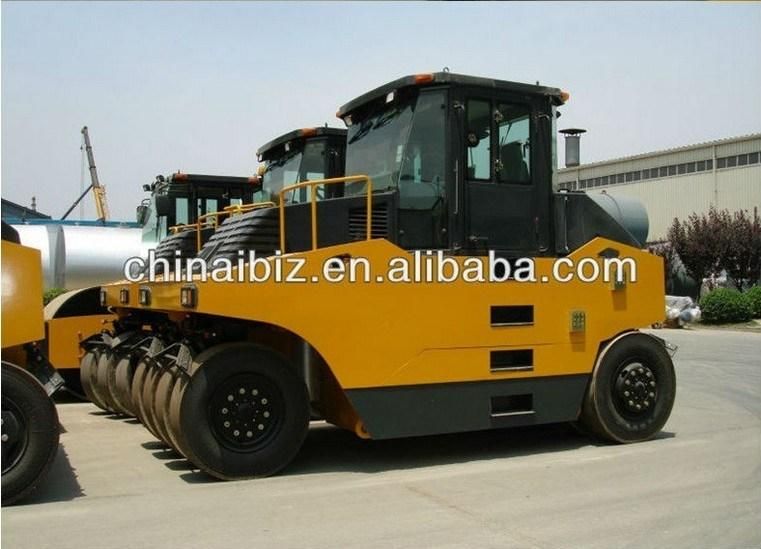

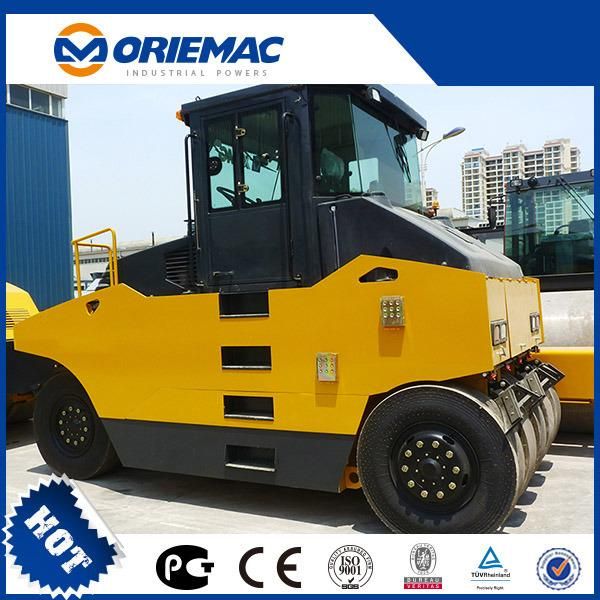

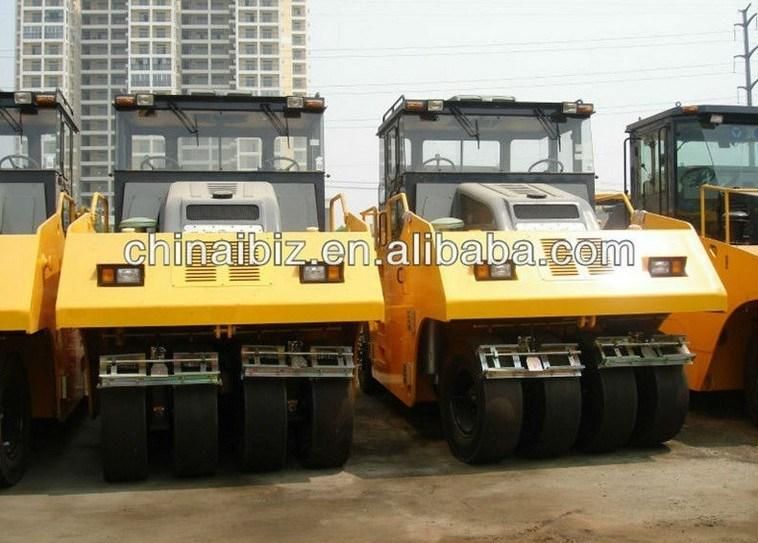

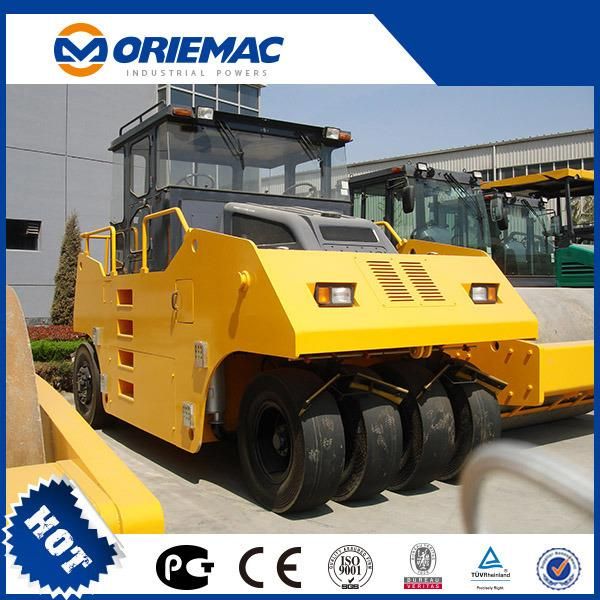

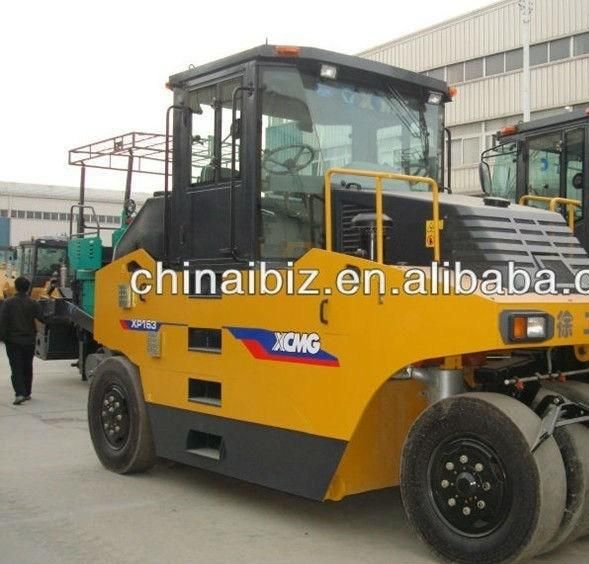

Cheap Price New  XP163 16 ton pneumatic tyre road roller
1. Engine: YC4A125Z
2. Roated Power: 93kw
3. Amount: front 4, rear 5


Cheap Price New XP163 16 ton pneumatic tyre road roller

Max. working mass 16 ton

Max.power : 92kw @2200r/min
Tyre mumbers: front 4,rear 5
Popular tyre roller/tire roller/road roller



XP163/XP203 tyre compactor is the landmark of 3 series products developed on the basis of 2 series products. It leads the development of Chinese tyre compactor due to its high start, high technique, high performance, and high quality. The machine features beautiful appearance, driving comfort, simple operation, excellent performance, safety and reliability, and convenient maintenance. It can be applied in the construction of asphalt road, base layer, hypo-base layer, and fill construction. It is a necessary compact equipment for road construction and water conservancy construction, especially for the high-grade highways.



Model	Unit	XP163
Min. working weight	kg	11100
Max. working weight	kg	16000
Ground pressure	kPa	200-400
Travel speed	km/h
	Speed I	4.2
	Speed II	8.2
	Speed III	17.4
	Reverse speed I	4.17
	Reverse speed II	8.2
Theoretical gradeability	%	20
Min. external turning radius	mm	7230
Min. ground clearance	mm	250
Compaction width	mm	2055
Roller overlap amount	mm	30
Tyre specification		9.00-20-12PR
Amount		Front 4 Rear 5
Engine model		YC4A125Z
Type		Water cooling, pressurizing
Rated power	kw @2200 r/min	92
Engine oil consumption	g.kw/h	≤230
Hydraulic oil tank capacity	L	60
Diesel oil tank capacity	L	130
Overall length	mm	4715
Overall width	mm	2055
Overall height	mm	3258
