Popular 8 Ton Wheel Loader Lw800K/Lw800kn
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Video Support
- Warranty：One Year
- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Rated Load：6-9t
- Transmission：Hydraulic
Base Info
- Model NO.：LW800KN
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Large Loader
- Usage：Construction Earthmoving Work
- Operating Weight：80000kg
- Power Source：Diesel
- Engine Shangchai Sc8d143G2b1：Imported Cum Mins
- Color：Yellow
- Transport Package：Container
- Specification：ISO, CE
- Trademark：EVANGEL
- Origin：Xuzhou, China
- HS Code：84295100
- Production Capacity：50units,Month
Description
Basic Info.
Model NO. LW800KN Load and Unload Mode Front Discharge Walking Mode Wheeled Type Large Loader Usage Construction Earthmoving Work Operating Weight 80000kg Power Source Diesel Engine Shangchai Sc8d143G2b1 Imported Cum Mins Color Yellow Transport Package Container Specification ISO, CE Trademark EVANGEL Origin Xuzhou, China HS Code 84295100 Production Capacity 50units/MonthProduct Description
Popular 8 ton Wheel Loader Lw800kn Lower Price* High performance Cum-mins QSM11 (Tier 3) engine
The imported Cum-mins QSM11 electronic injection, air-air inter-cooled, turbocharged engine with electronic start and stop device and high torque reserve coefficient enables the whole machine to have powerful traction force and rapid hydraulic response.
* Low fuel consumption
The low noise and high torque engine and the high capacity torque converter guarantee the maximum efficiency during low speed traveling to remarkably reduce the fuel consumption.
* High-efficiency hydraulic system
The hydraulic system adopts pilot control, steering flow amplifying, and working and steering confluence technology to realize low hydraulic power consumption, low energy consumption, and improved efficiency of the hydraulic system.
* Low emission
Compliance with environment protection requirements and output of clean emission.

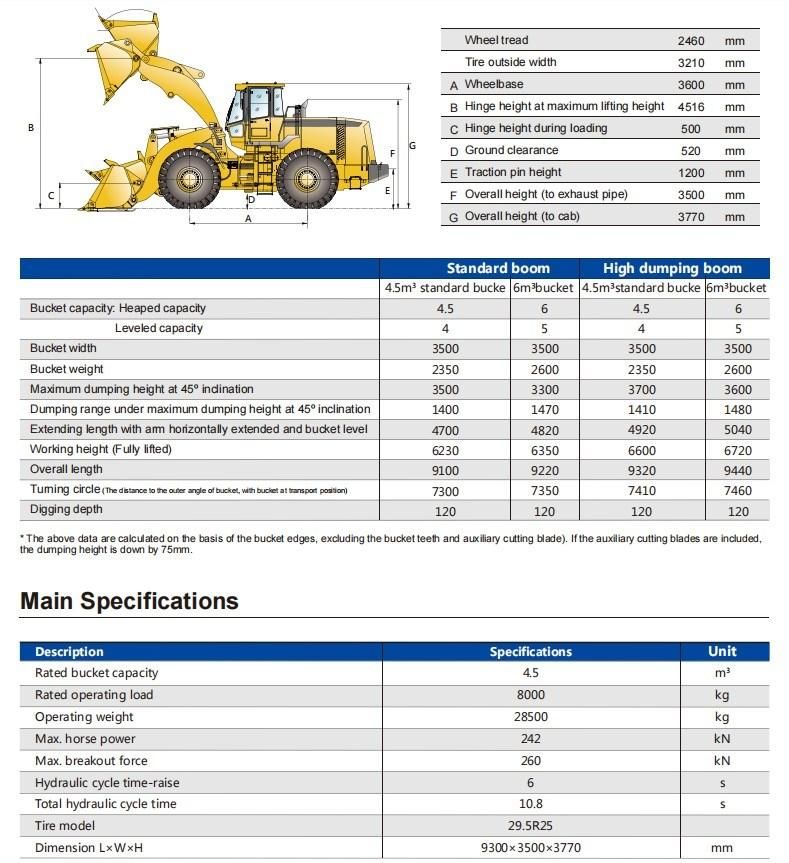

| Description | Unit | Parameter value |
| Rated capacity | kg | 8000 |
| Bucket volume | m3 | 4.5 |
| Operating weight | kg | 28500 |
| Max. horse power | kN | 242 |
| Max. breakout force | kN | 260 |
| Hydraulic cycle time-raise | kN | 6 |
| Total hydraulic cycle time | s | 10.8 |
| Tire model | 29.5R25 | |
| Dimension LxWxH | mm | 9300*3500*3770 |
| Wheelbase | mm | 3600 |
| Hinge height at maximum liting height | mm | 4516 |
| Hinge height during loading | mm | 500 |
| Ground clearance | mm | 520 |
| Traction pin height | mm | 1200 |
