• Model NO.：RPLT-6800
• Power Source：Diesel
• Lamp Power：7.6kw,50Hz, 8.4kw,60Hz
• Fuel Capacity：2.0L,Hr(100 Litres,Tank)
• Engine Speed：1500rpm,50Hz
• Power Generation：7.2kw Continuous (DC)
• Voltage：110V-240V
• Light Power：4*480W LED Lamp,4*1000W Metal Halide Lamp
• IP Grade：IP65,IP54
• Lumen Output：4*64800,4*110000lm
• Guarantee：3year,2000h
• Transport Package：Plywood Case, Plywood Tray
• Specification：Iron pallet 2100x1300x2400mm
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250 PCS, Month

LightingTypeMobile Lighting TowerLighting panels per unit4*480W LED lamps
4*1000W Metal Halide Lamp          Optional color temperature2100K-5700KHousing MaterialGalvanization Reflector HousingLongevity3 years/2000 HrsLumen Output4*57600lm/ 4*110,000lm ( total )Connection Protection IndexIP54MastMast typeTelescopicMast section6Mast extension8mRotation360 degreeEngineBrandKubota, 3 cylinder, in-line, water cooledModelD1105-BG DieselFuel Consumption2.0L/hrFuel capacity100LMaximum Working Hours50HControl systemGU3303 Digital controllerEngine Shutdown ProtectionLow oil pressure, over speed, over current,
high temperature detection, low fuel levelAlternatorTypeStamford PI044F/4-pole, Brushless, excitationPrime Power6.7KW/50Hz  8.4KW/60HzTrailerStabilier Supports4*Manual   4*HydraulicTow HitchRing/ball hitchTire Size13 inchBrakesManualPacking
Dimension & WeightNet weight890kgDimention2650X1400X3250 MM

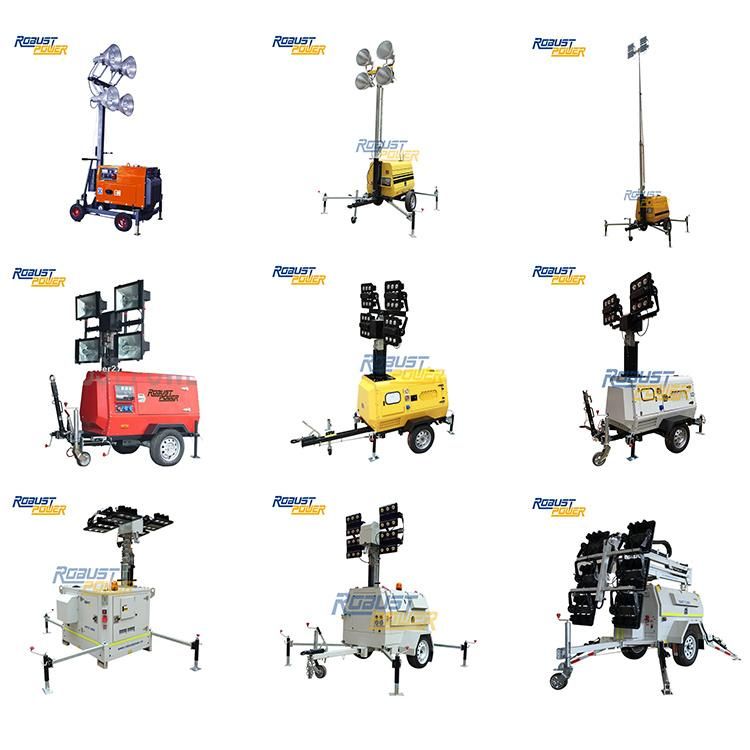

Robust Power Models:

No.	Model	Mast	Power of Lamps	Engine Model
1	RPLT1600	4.8M Manual	4*400W Metal Halide Lamp	RP186FA
2	RPLT1600	4.8M Manual	4*160W LED	RP186FA
3	RPLT1600	4.8M Manual	2*1000W Metal Halide Lamp	RP186FA
4	RPLT6000	9M Manual	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
5	RPLT6000	9M Manual	4*240W LED	Kubota D905 (Japan)
6	RPLT6800	8.6M Hydraulic	4*1000W Metal Halide Lamp	Kubota D1105 (Japan)
7	RPLT6800	8.6M Hydraulic	4*1500W Metal Halide Lamp	Kubota D1105 (Japan)
8	RPLT6800	8.6M Hydraulic	4*480W LED	Kubota D905 (Japan)
9	RPLT3800	7M Hydraulic	4*480W LED	Kubota Z482 (Japan)
10	RPLT6900	8.5M Hydraulic	4*480W LED	Kubota D1105 (Japan)
11	RPLT7200	10M Hydraulic	6*480W LED	Kubota D1105 (Japan)
12	RPLT7200	10M Hydraulic	4*720W LED	Kubota D1105 (Japan)
13	RPLT7600	9M Hydraulic	6*480W LED	Kubota D1105 (Japan)
14	RPLT7600	9M Hydraulic	4*720W LED	Kubota D1105 (Japan)
