• Overall Length：3420
• Overall Width：1740
• Overall Height：2120
• Wheel Base：991
• Total Height (mm)：2160
• Hinge Pin Height (mm)：3100
• Rated Operating Capacity(Kg)：850
• Tipping Load (Kg)：1700
• Transport Package：Container
• Trademark：TOPWIN
• Origin：China
• HS Code：8429590000
• Production Capacity：5000

Basic Info.

Overall Length 3420 Overall Width 1740 Overall Height 2120 Wheel Base 991 Total Height (mm) 2160 Hinge Pin Height (mm) 3100 Rated Operating Capacity(Kg) 850 Tipping Load (Kg) 1700 Transport Package Container Trademark TOPWIN Origin China HS Code 8429590000 Production Capacity 5000

Product Description

Product Details

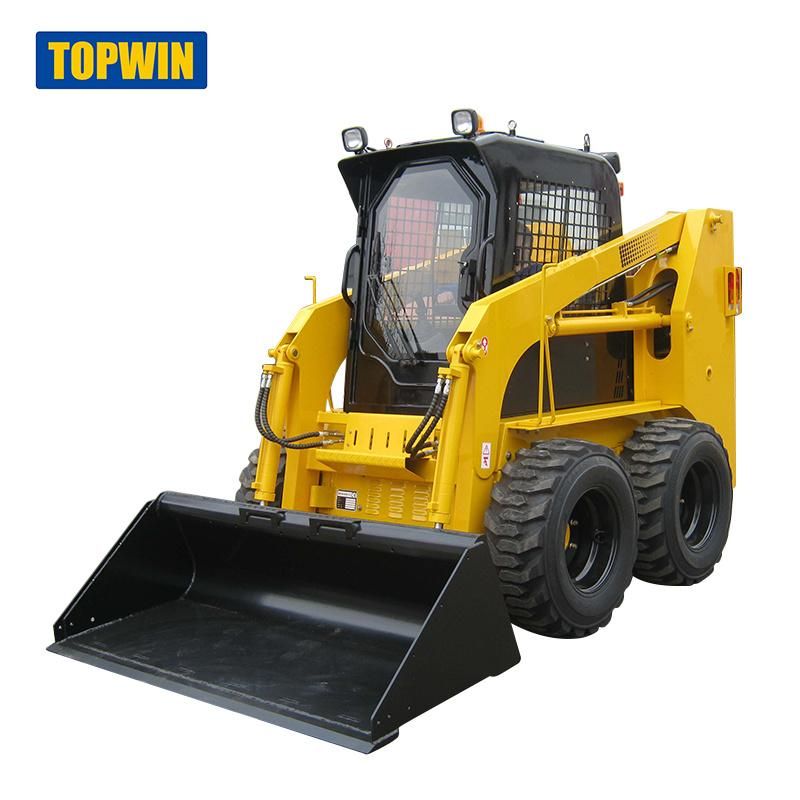

TOPWIN Skid Steer Loader TPS35TPS45 TPS50 TPS60 TPS70 TPS75 Multifunction loader skid steer.

TPS35TPS45 TPS50 TPS60 TPS70 TPS75 with strong power and rich attachments, the topwin skid-steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.

Advantages and Highlights:

1. Strong and Efficient Power Transmission System
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high strength chains feature automatic lubrication and maintenance-free.

2. Incomparable Multi-Functionalities
The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

3. Solid and Reliable Design
The integral frame adopted features compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realizereasonable stress distribution.

4. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent scattering of material and improve working efficiency.



Item	Description
Rated operating capacity(kg)	850
Tipping load (kg)	1700
Bucket capacity(m3)	0.5
Hydraulic pump flow (L/min)	75
Engine power (hp)	60
Weight(kg)	3240
Max travel speed (km/h)	12
Grade ability	20
Tire	12-16.5
Fuel/hyd oil capacity (L)	80/80
Height at maximum extension	4000
Hinge pin height (mm)	3100
Total height (mm)	2160
Length with bucket (mm)	3490
Length without bucket(mm)	2750
Width with bucket (mm)	1880
Track width (mm)	1500
Wheelbase (mm)	991
Ground clearance (mm)	205
Dumping angle	40
Dumping height (mm)	2400
Maximum reach (mm)	750

Skid Steer Loader details

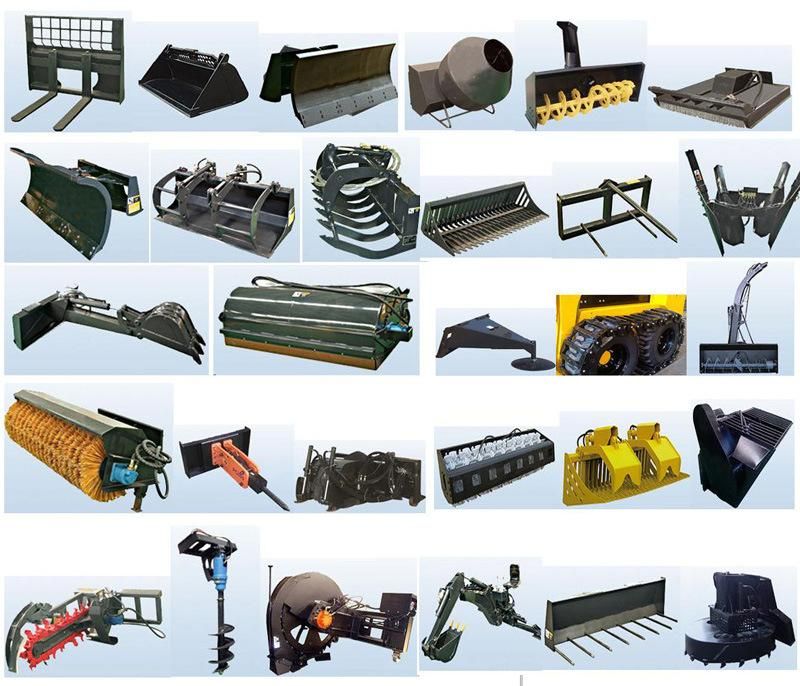

 Skid Steer Loader Attachment
Company details:
Shandong Topwin Machinery Co.,Ltd. (TOPWIN for short) is the one-stop solution provider for construction machinery, mining machinery, agricultural machinery and logistic machinery in China.

With more than 10 years experience in this field, TOPWIN has served various clients from USA, Canada, Mexico, Brazil, Argentina, Australia, Indonesia, Kazakhstan, Russia, Zimbabwe, Mozambique, Zambia, South Africa, etc.. We are helping our clients to succeed in every project by offering high cost-effective and reliable machines.

TOPWIN has enjoyed great reputations in road constructions, mining operations, farming, fertilizer manufacturing, etc.. That's why we get repeat purchases and more new clients from different countries and regions.

TOPWIN values high quality products and immediate response to clients' demand. We know how important it is for client to have a product that not only keeps on doing its job throughout the day, but also keeps on doing so for many years.

We offer full guidance to service and maintenance to make sure the machines are running normally with maximum productivity. To achieve that, we provide the clients with full support from day one.
