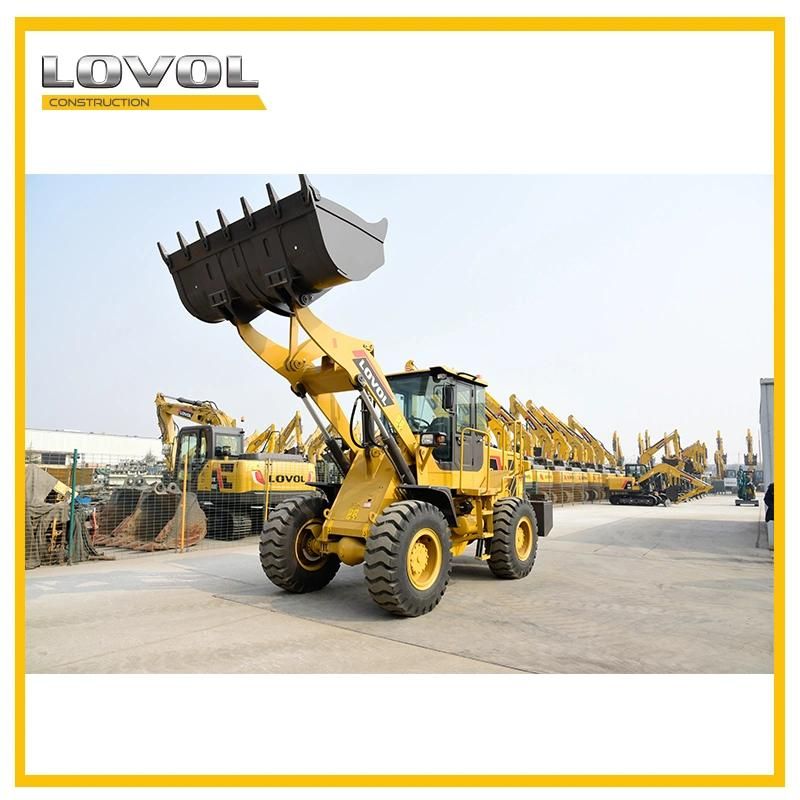

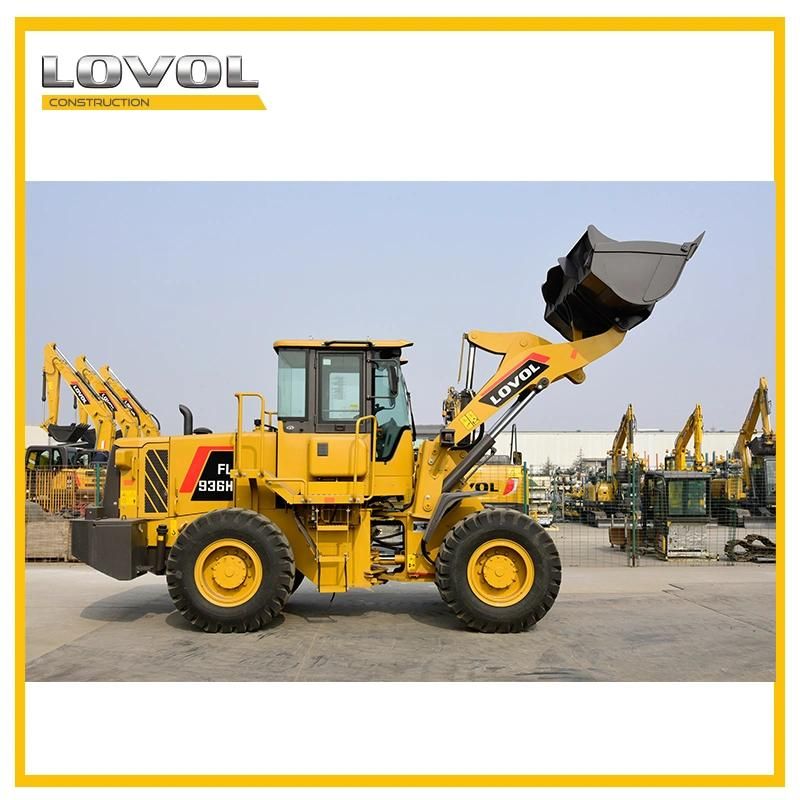

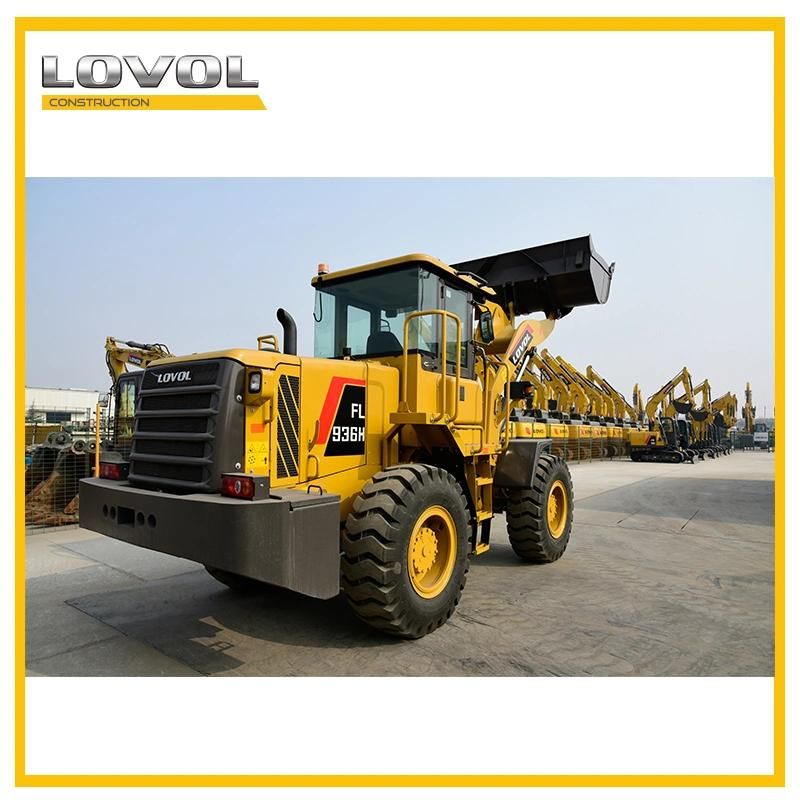

• Model NO.：FL936F
• Type：Small Loader
• Bucket Capacity：1.8cbm
• Engine：Yuchai
• Operating Weight：10000kg
• Engine Power：92kw
• Transport Package：N,P
• Specification：CE
• Trademark：LOVOL
• Origin：Shandong
• HS Code：84295100
• Production Capacity：60sets, Month

Complete machine parametersRated load(kg)3000Operating mass (standard)(kg)10300Bucket capacity(m³)1.8Boom lifting time(S)5.7Sum of three items(S)10.5Max. traction force(kN)92Max. breakout force(kN)120Running systemForward speed range(km/h)0-37Backward speed range(km/h)0-31.5Gearbox shiftFront : 4 gears rear: 2 gearsMax. gradeability(°)30Steering angle(°)36Tire model17.5-25-12PRService brakecaliper disc brakeParking brakeflexible shaft control caliper disc brakeTire center(mm)5131Outside of bucket(mm)5980Hydraulic systemWorking system pressure(Mpa)16Working system displacement(ml/r)63Steering system pressure(Mpa)14Steering system displacement(ml/r)63Hydraulic oil volume(L)110Working scopeOutline dimension(mm)7250×2420×3220Wheelbase(mm)2750Track(mm)1850Min. grounding distance (at hinge position)(mm)375Max. unloading height(mm)2990Unloading distance at max. unloading height(mm)1100Engine parametersModel(Yuchai)YC6B125-T20Type(Yuchai)Six-cylinder, in-line, direct injection, natural inspiration, and water coolingRated power(Kw/rpm)(Yuchai)92/2200Max. torque / speed(N.m/rpm)(Yuchai)463/1400-1600Cylinder bore x stroke(mm)(Yuchai)Φ108×125Displacement(L)(Yuchai)6.871Fuel consumption rate at rated working condition(g/Kw.h)(Yuchai)235Fuel tank capacityt(L)140Model(Weichai)Weichai WP6G125E22Type(Weichai)Six-cylinder, in-line, direct injection, turbocharging, and water coolingRated power(Kw/rpm)(Weichai)92/2200Max. torque / speed(N.m/rpm)(Weichai)500/1400-1600Cylinder bore x stroke(mm)(Weichai)Φ105×130Displacement(L)(Weichai)6.754Fuel consumption rate at rated working condition(g/Kw.h)(Weichai)225Model(DCEC)DCEC 6BT5.9-C130Type(DCEC)Six-cylinder, in-line, direct injection, turbocharging, and water coolingRated power(Kw/rpm)(DCEC)97/2200Max. torque / speed(N.m/rpm)(DCEC)560/1500Cylinder bore x stroke(mm)(DCEC)Φ102×120Displacement(L)(DCEC)5.9Fuel consumption rate at rated working condition(g/Kw.h)(DCEC)235Fuel tank capacityt(L)/
We supply all kinds of Machinery & Equipment of most Chinese big brands like  LIUGONG, LOVOL , ZOOMLION, SINOTRUK etc to global market with reasonable
price and best service. Most of products are meet with ISO,CE,EPA,GOST standards.
Our advantages are as following:

1. Professionally export construction machinery and spare parts for more than 12  years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.

1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)

2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

3) All machines spare parts.

Please contact us freely to get best price and service.
