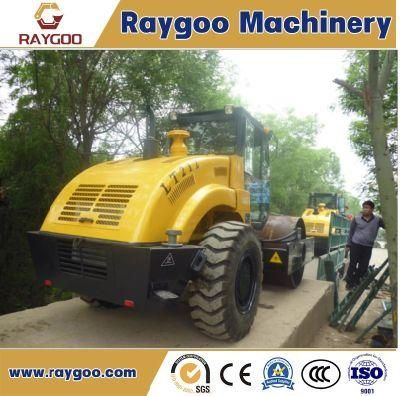

Road Roller Machine Official Single Drum Vibratory Road Roller Machine
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year Warranty
- Type：Road Roller
- Working Method：Wheeled

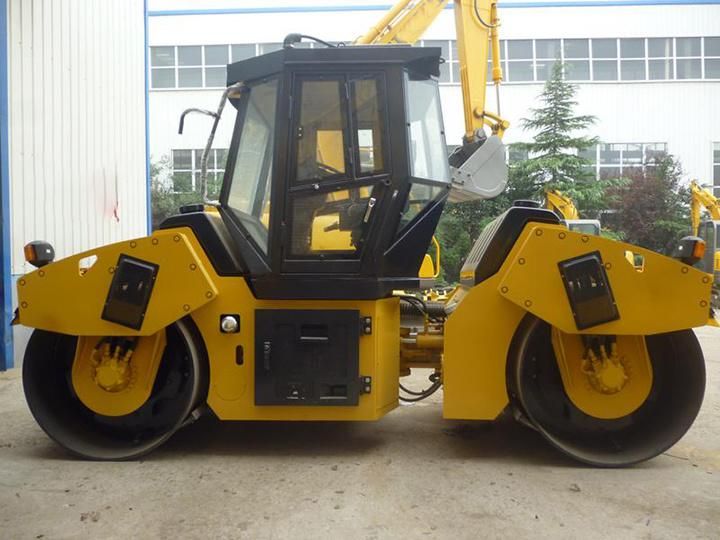

- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info

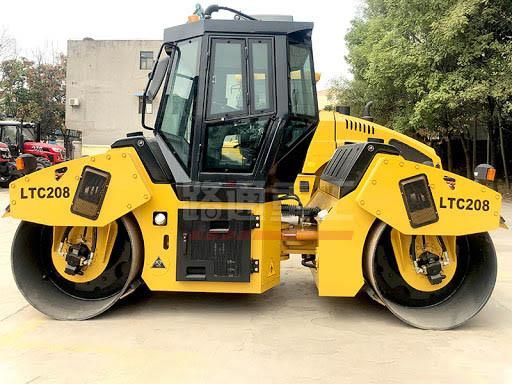

- Model NO.：LTC208
- Compaction Depth：35cm
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Centrifugal Force：15KN
- Certification：CE
- Condition：New
- Transport Package：Cartons
- Trademark：Sinomada
- Origin：China
- HS Code：8429521200
- Production Capacity：500000
Description
MODLE
LTC214
LTC212
LTC210
LTC208
Operating mass
kg
14000/12000
10000/8000
Front axle load
kg
7000/6000
5000/4000
Rear axle load
kg
7000/6000
5000/4000
Static linear load
N/cm
333/286
238/231
Form of frame
Fork-type
Fork-type
Water tank capacity
L
2×600
2×400
Fuel tank capacity
L
154
80
Hydraulic tank capacity
L
65
65
Vibration frequency
mm
High ampl.
0.8
0.67
Low ampl.
0.4
0.34
Vibration frequency
Hz
High ampl.
40
45
Low ampl.
46
50
Centrifugal force
kN
High ampl.
160×2
90×2
Low ampl.
90×2
69×2
Travel speed
km/h
0-12
0-10
Turning radius
mm
7000
6000
Grade ability
%
40
40
Steering angle
°
±30
±30
Drum diameter
mm
1350
1150
Drum width
mm
2100
1730
Transverse swing angle of the vibrating wheel
°
±8
±8
Type of water spray
mm
Pressure
Pressure
Wheelbase
mm
3717
3217
Overall length
mm
5060
4558
Overall width
mm
2250
1840
Overall height
mm
3300
2674
Ground clearance
mm
324
258
Diesel power
kw
110
75
Diesel speed
r/min
2300
2400
