• Model NO.：Lw180fv
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Rated Bucket Capacity：0.9-1.1m3
• Engine Power：58,2400kw,Rpm
• Engine：Weichai & Shangchai
• Maximum Breakout Force：58kn
• Total Weight：6200 Kgs
• Rated Operating Load：1800kg
• Wheel Base：2300mm
• Min. Turning Radius Over Tyres：4470mm
• Transport Package：Container, RO-RO
• Specification：5980*2060*2950mm
• Trademark：Raygoo
• Origin：Fujian, China
• HS Code：87059091
• Production Capacity：5000

Overview Product Description

LW180FV is the latest generation of loaders introduced. The product adopts the international mainstream modelling, the best matching of the power train, and the working device is fully optimized. It is a high-quality, high-efficiency, cost effective small-sized loader widely used in housing construction, road maintenance, agriculture, forestry, water conservancy, sand and gravel yards and other fields. Small construction work.

1. With reasonable design, the machine adopts hydraulic mechanical drive, and four-wheel drive, featuring larger drive force and digging force; with small turning radius and convenient and agile operation, it is suitable for narrow working area.

2. Z type bucket linkage, single arm, lifting cylinder of high pivot, strong digging force and short working cycle time, and higher working efficiency.

3. Priority of on-demand oil supply for all hydraulic load-sensing steering and priority of single pump valve working hydraulic system, economic in energy-saving.

4. With openable rear hood side door and full visibility, the cab provides the comfortable working environment and advantaged maintenance condition.

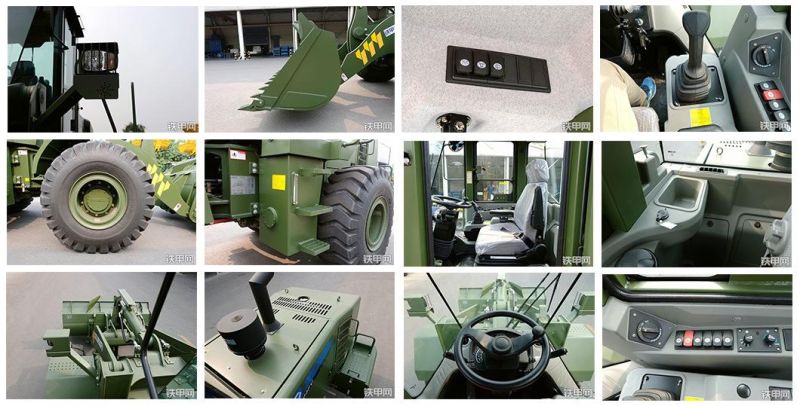

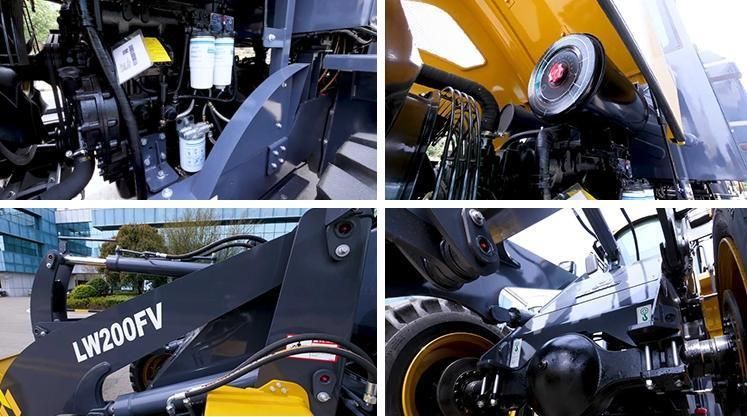

Product ParametersDescriptionUnitParameter valueRated operating loadkg1800Bucket capacitym³0.9-1.1Machine weightkg6200Dump clearance at maximum liftmm2650-2970Reach at maximum liftmm900-1000Wheel basemm2300Treadmm1550Max. breakout forceKN≥58Hydraulic cycle time-raises5Total hydraulic cycle times≤8.5Min. turning radius over tyresmm4470Articulation angle°35Gradeability°28Tyre size 16/70-20Overall machine dimension L*W*Hmm5980*2060*2950Model YC4D80-T20Rated Power/SpeedkW/rpm58/2400Travel speedI-gear(F/R)km/h0-9/0-9II-gear(F/R)km/h0-26/0-26Detailed Photos

Our machines advantages

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....

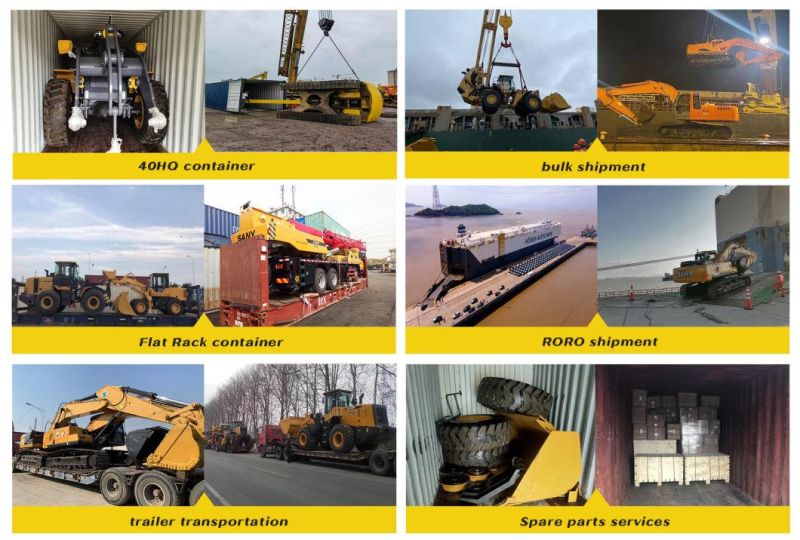

3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.

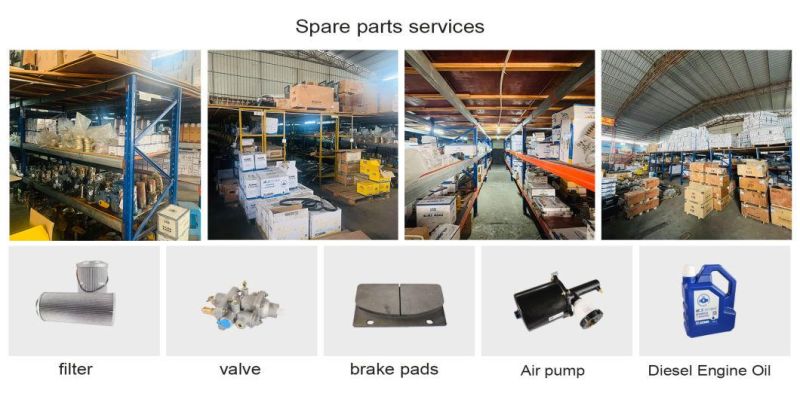

4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.

5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.


7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support
