• Model NO.：SWLLS285
• Type：Small Loader
• Model：Swssl825
• Boom Breakout Force：18.9 Kn
• Bukcet Breakout Force：20.8 Kn
• Static Tipping Load：1590 Kg
• Bucket Width：1630 mm
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 Unit Per Year

Basic Info.

Model NO. SWLLS285 Type Small Loader Model Swssl825 Boom Breakout Force 18.9 Kn Bukcet Breakout Force 20.8 Kn Static Tipping Load 1590 Kg Bucket Width 1630 mm Warranty One Year Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 Unit Per Year

Product Description

Product Feature

*Yanmar engine,
*67 hp,
*Hydraulic drive,
*0.4m³ bucket capacity
*Rated payload 795kg

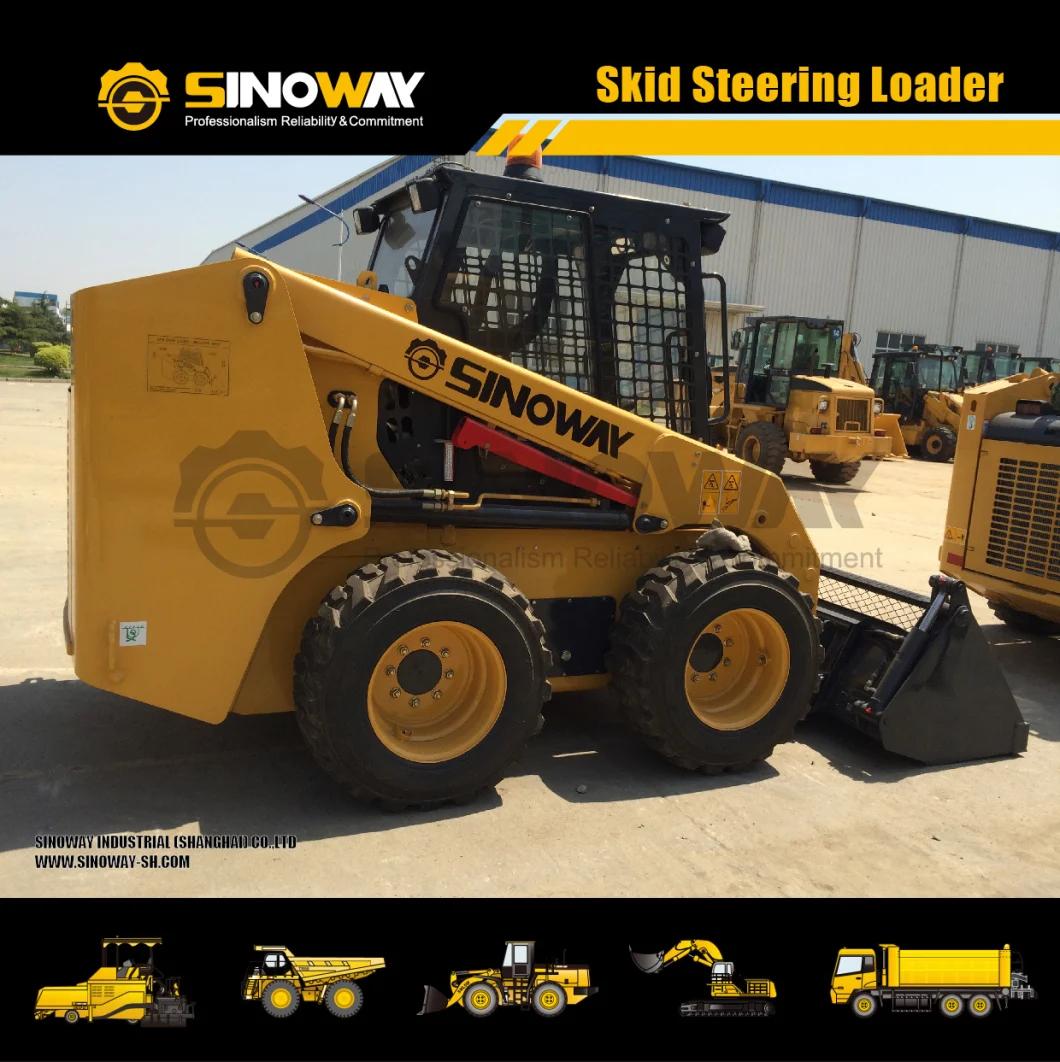

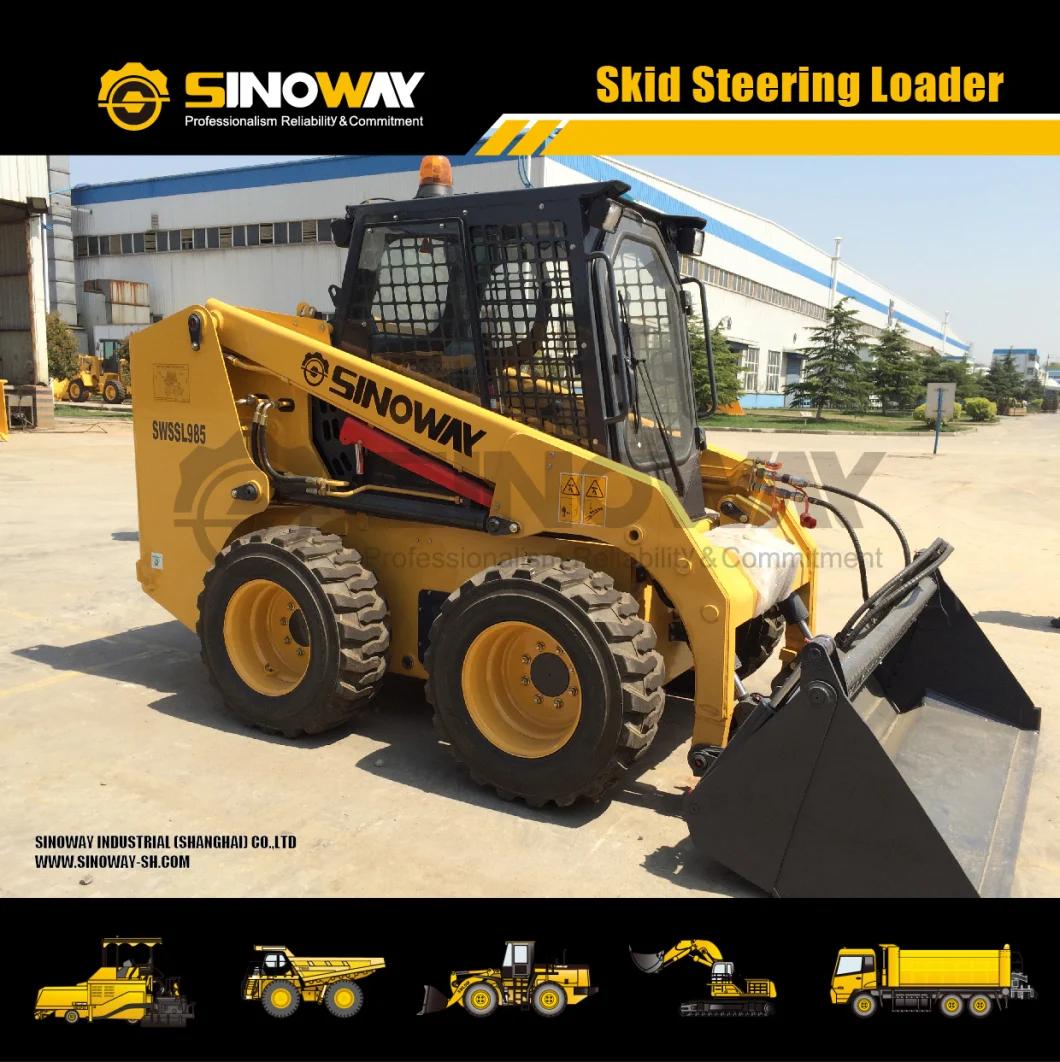

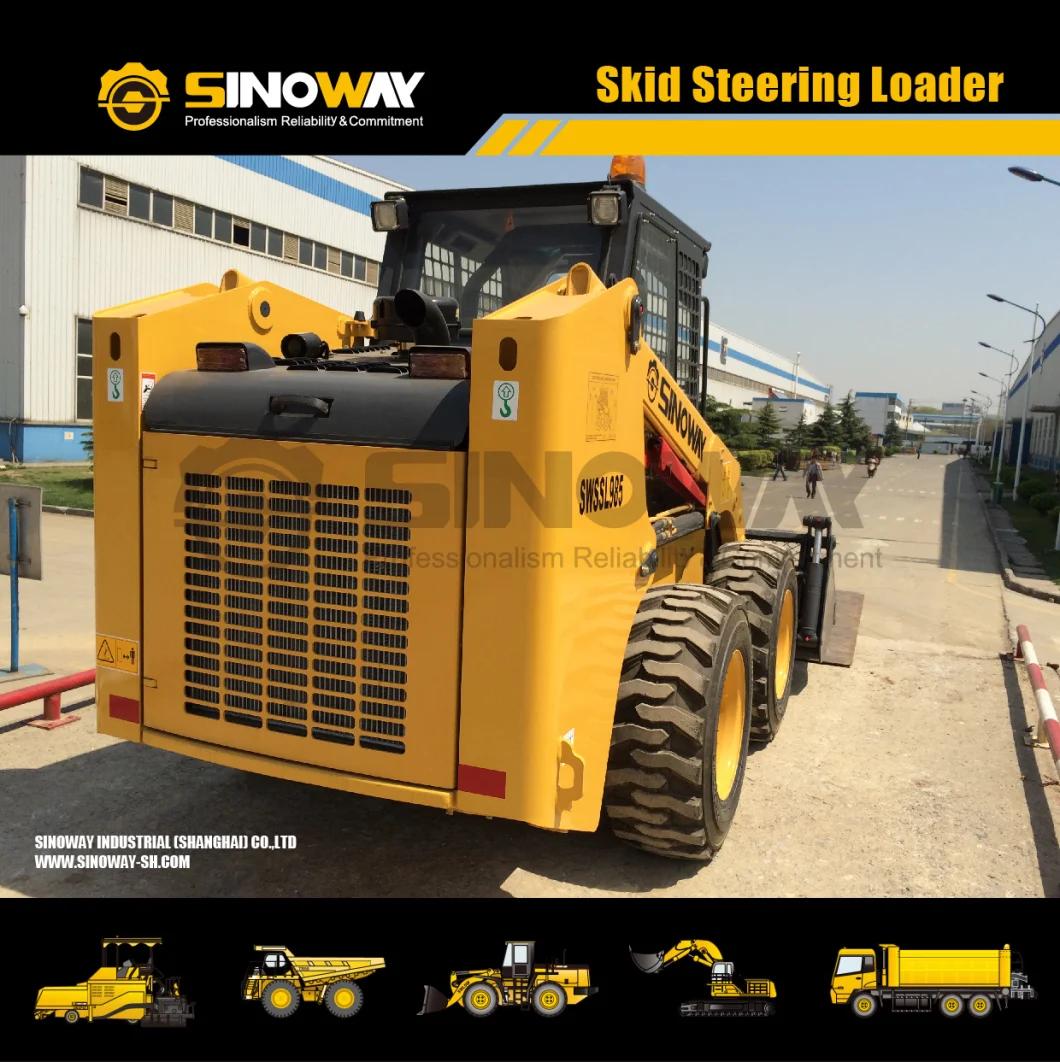

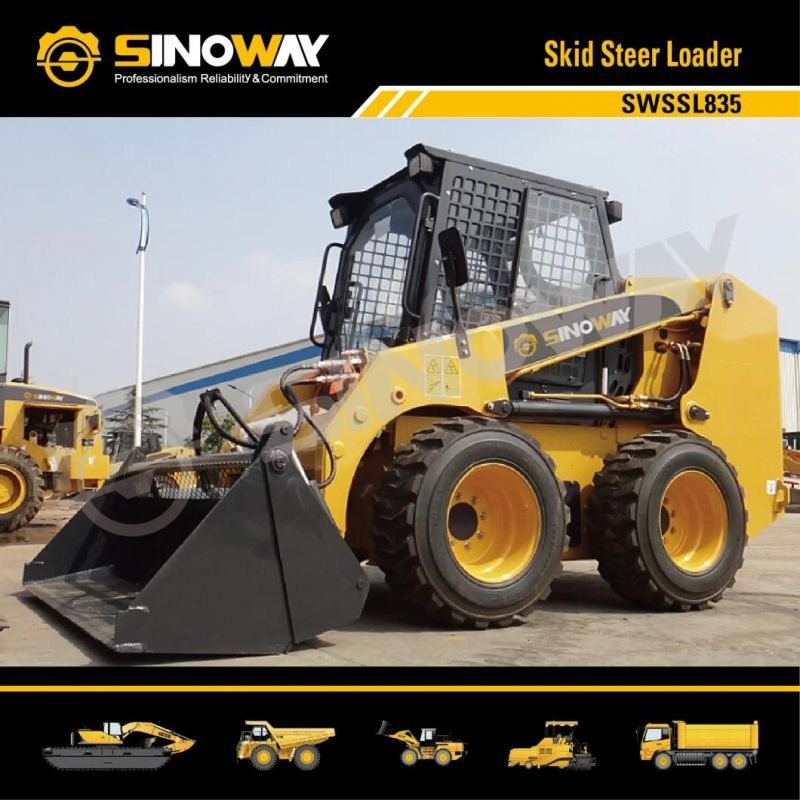

Machine Show





Specification

Engine
Engine Model	YANMAR
Gross Power	50.3kW(67hp)@2400rpm
Net Power	47.8kW(64hp)@2400rpm
Peak Torque	238.8N·m@1550rpm
Number of Cylinders	4
Displacement	3.3L
Cooling Type	Water
Main Technical Specification
Bucket Capacity	0.4m³
Operating Weight	2950kg
Static Tipping Load	1590kg
Rated Load	795kg
Boom Breakout Force	18.9kN
Bucket Breakout Force	20.8kN
Dump Clearance at Full Height Discharge	2220mm
Dump Reach at Full Height Discharge	540mm
Maximum Dump Angle at Full Height	40°
Maximum Hinge Pin Height	2923mm
Bucket Rollback at Ground Level	30°
Ground Clearance	204mm
Angle of Departure	26°
Front Clearance Radius	1800mm
Service Capacity
Fuel Tank	80 L
Engine Oil	10.4 L
Cooling System	18 L
Hydraulic Reservoir	52 L
Hydraulic System Total	56 L
Chain Tanks, Each	7L
Dimensions
Overall Length(with bucket on ground)	3360mm
Overall Width	1580mm
Overall Height(to the top of cab)	1940mm
Wheel Base	1040mm
Tread	1325mm
Bucket width	1630mm
Electrical System
System Voltage	12 V
Alternator Output	55 amps
Hydraulic System
System Type	Closed
Standard Flow	79.2L/min
Optional High Flow	120.2L/min
Traveling Hydrostatic Pressure	32MPa
Working Hydrostatic Pressure	20.7MPa
Hydraulic Cycle Time, total	8.7s
Raise	4.1s
Dump	2.4s
Lower (empty, float down)	2.2s
Tires
Ply Type	Pneumatic
Tire Size	10-16.5
Ply Rating	8
Drive Chain Size	80HS
