• Model NO.：Xe215c
• Size：Medium-Sized
• Certification：ISO9001: 2000
• Condition：New
• Max.Digging Height：9640mm
• Max.Digging Depth：6655mm
• Output Power：128.5,2100kw
• Rotating Speed：13.3r,Min
• Max.Digging Radius：9925mm
• Transport Package：Comply with Export Packaging Requipment
• Specification：9525*3990*3000mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295212
• Production Capacity：10000 Units,Year

ModelOperating weightKg21450Bucket capacityM³0.8-1.0EngineEngine model/ISUZU BB-68G1TRPDirect injection/√4×Strokes/√Water cooling/√Turbocharging/√Cylinders/6Output power of engineKw/rpm106.5/1950Max. Torque/engineN. M/rpm551/1600DisplacementL6.494Mian pertormanceTravel speedKm/h5.5/3.3Slewing speedR/min13.3Gradient capability°≤35°Ground pressureKPa45.5Digging capacity of tcuketKN138Digging capacity of tcuket rodKN103Max. TractionKN184Hydraulic systemMain pump/Tow plunger pumpsRated flow of main pumpL/min2×206Pressure of main safety valveMPa31.5/34.3Pressure of traveling systemMPa34.3Pressure of swing systemMPa28Pressure of pilot systemMPa3.9Oil volumeFuel tank capacityL360Hydraulic tank capacityL220Engine oil volumL25Apperance sizeA Total lengthmm9525B Total widthmm2990C Total heigthmm3000D Width of rotary tablemm2710E Length of trackmm4270F Total width of chassismm2990G Width of trackmm600H Wheelbase of trackmm3462I Track gaugemm2390J Counterweight ground clearancemm4050K Min. Ground clearancemm470L Min. Tail swing radiusmm2750Working scopeA Max. Digging heightmm9640B Max. Unloading heightmm6800C Max. Digging depthmm6655D Digging depth at the range of 8feets horizontallymm6470E Max. Vertical digging depthmm5695F Max. Digging radiusmm9925G Max. Swing heightmm3530

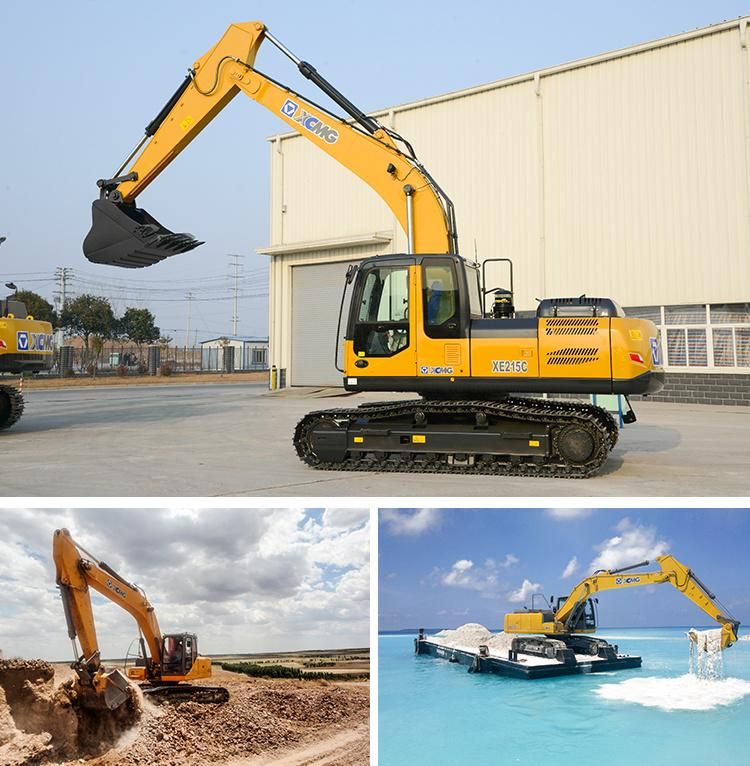

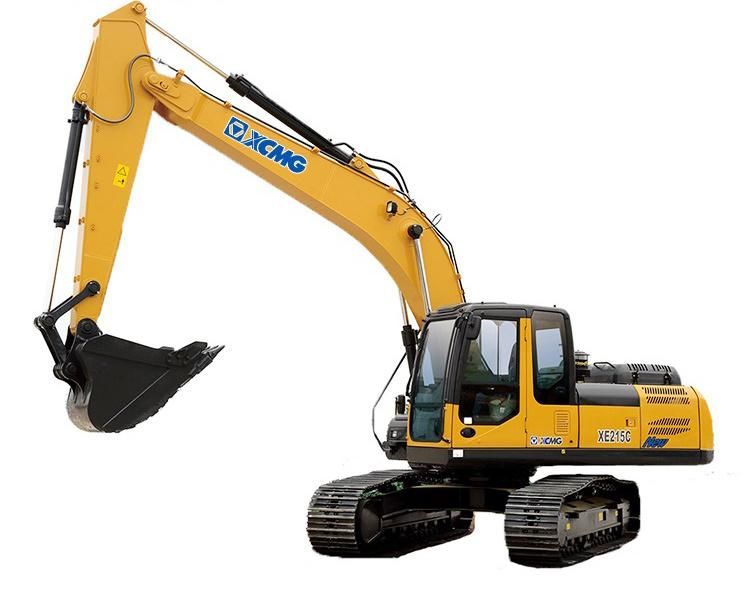

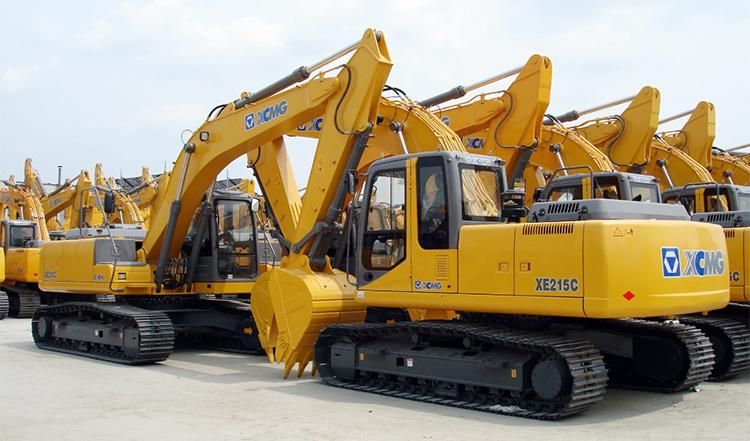

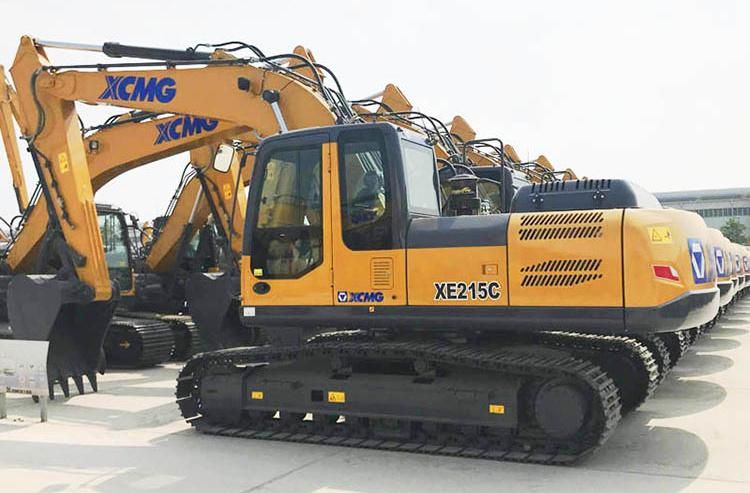

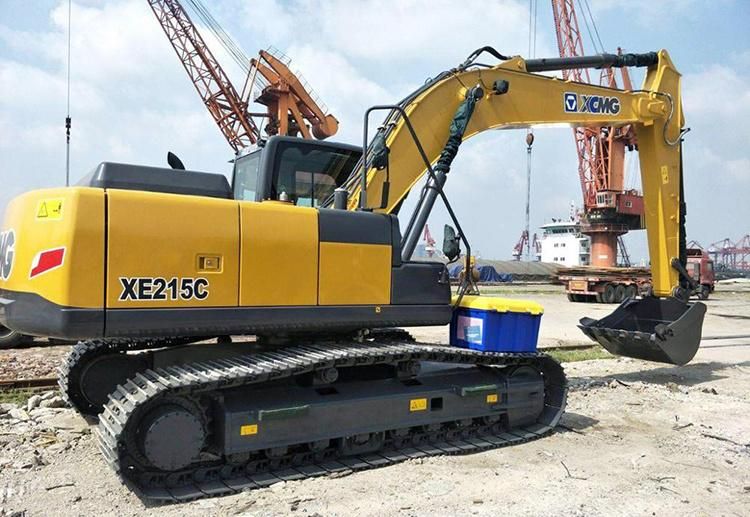

[Product Picture]






[Company Information]






[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
