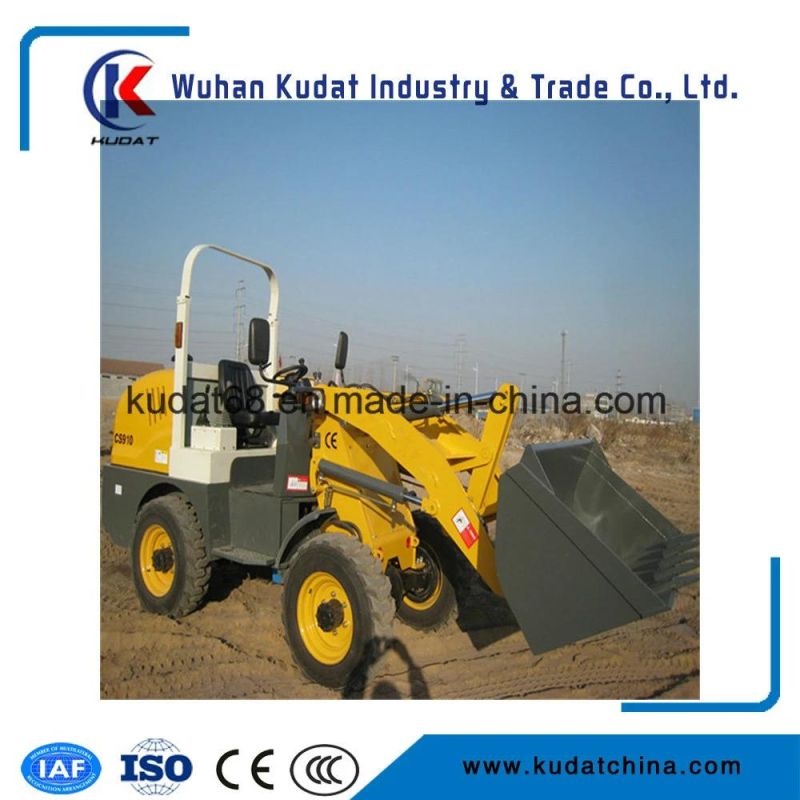

1tons Mini Wheel Loader (CS910)
Wuhan Kudat Industry & Trade Co., Ltd.- Type:Universal Type
- Transmission:Hydraulic Transmission
- Walking Mode:Wheeled
- Load and Unload Method:Front Discharge
- Engine Power:<74kw
- Certification:CE, ISO9001: 2000
Base Info
- Model NO.:CS910
- Condition:New
- Color:Yellow
- Rated Bucket Capacity:0.54m3
- Rated Loading Weight:1000kgs
- Engine Model:490bt
- Overall Dimension:4450X1430X2370mm
- Operating Weight (Kg):2690kgs
- Grade Ability:30 Degree
- Rated Power:32.4kw
- Dump Clearance(Mm):850
- Rated Speed:2400rpm
- Dump Height:2420mm
- Transport Package:One Unit Can Be Loaded in One 20gp
- Specification:CE
- Trademark:Kudat
- Origin:China
- HS Code:8459
- Production Capacity:500PCS,Per Month
Description
Basic Info.
Model NO. CS910 Condition New Color Yellow Rated Bucket Capacity 0.54m3 Rated Loading Weight 1000kgs Engine Model 490bt Overall Dimension 4450X1430X2370mm Operating Weight (Kg) 2690kgs Grade Ability 30 Degree Rated Power 32.4kw Dump Clearance(Mm) 850 Rated Speed 2400rpm Dump Height 2420mm Transport Package One Unit Can Be Loaded in One 20gp Specification CE Trademark Kudat Origin China HS Code 8459 Production Capacity 500PCS/Per MonthProduct Description
1. Using direct injection diesel engine as power, with easy startup and low oil consumption2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
MODEL | CS910 |
(Length*width*height)mm | 4450/1430/2370(2000)mm |
Loading weight | 1.0t |
Operating weight | 2690kg |
Max.traction force | 35KN |
Min.ground clearance | 230mm |
Turning angle | 35° |
Min turning radius | 3750mm |
Speed | |
Forward 1 gear | 0-7km/h |
Forward 2 gear | 0-24km/h |
Reverse 1 gear | 0-7km/h |
Reverse 2 gear | 0-24km/h |
Engine mode | 490BT |
Rated speed | 32.4/2400kw/r/nin |
Cylinder/dirameter/stroke | 4/108/125 |
Bucket capacity | 0.54 m3 |
Circulating time | 9S |
Dump height | 2420mm |
Dump clearance | 850mm |
tire | 10/12.5 |
Tire width | 270mm |
track base | 1160 mm |
wheel base | 1710 mm |
