• Model NO.：M915
• Type：Small Loader
• Category：Construction,Farming,Forestry Machine
• Engine：Yanmar,Kohler,Chinese
• Power：30-70HP
• Power Source：Diesel
• Bucket Capacity：0.5-1.5m3
• Driving Speed：0-24km,H
• Weight：1600-3000kg
• Common Choice for Normal Use：Loader with Bucket and Forklift
• Common Choice for Forestry：Loader with Log Grabber
• Common Choice for Construction：Loader with Hammer and Concrete Mixer
• Transport Package：Nude Packing
• Specification：3400X1500X2350mm
• Trademark：STEEL CAMEL
• Origin：Shandong
• HS Code：8429510000
• Production Capacity：800 Sets Per Year

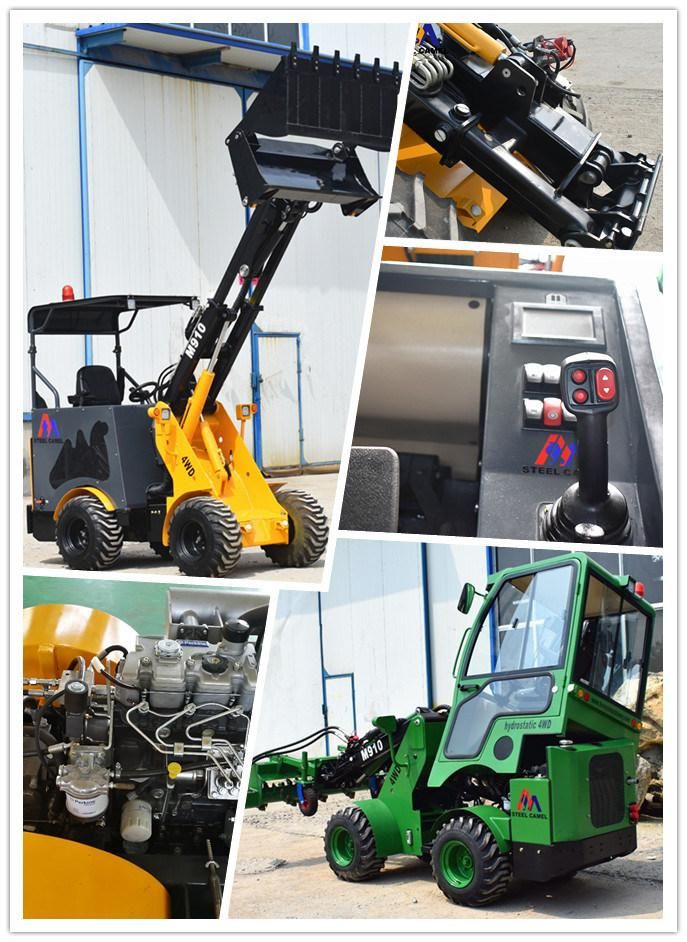

M915 multifunction wheel loaderDimension with cabin (LxWxH)3400X1500X2300mmMax. lifting height (boom retract) 3000mmMax. lifting height (boom extend) 3562mmPulling force 18kNBucket capacity0.8cbmMax. loading capacity1500kgMin. turning radius2800mmTurning angle45⁰Min. ground clearance 330mmSpeed0-12~24 km/hWeight with bucket and counterweight2300 kgStandard tire31X15.5-15Tire pressure2.8 barOil tank capacity80LPressure200barWorking oil flow41L/minx2Tracking oil flow120L/minOil model(mineral oil)L-HL46Fuel tank capacity42LBattery60Ah, 12VEnginePerkins 404D-22, 50hp, 4 cylinder, diesel Standard configuration: Closed cabin with heating and fan, hydraulic quick coupling, telescopic boom, boom floating, self levering, flexible articulation, standard bucketOptions Open ROPS canopy3 point hitch with hydraulic ptoNormal boom without telescopic 8/16km/h two speed wheel motorRear hydraulic output with separate controlTrailer hook3 point hitch Bobcat coupling plateAir conditionerMulti-way couipler

Advantages of M915 multifunction wheel loader:

Items	STEEL CAMEL loader	Other loader
Driving system	Full hydostatic 4WD One piston pump+4 hydraulic motors combine its driving system	Hydraulic/Mechanical driving Axle+torque converter+transmission shaft axle+gearbox motor
Working system	Twin pump for working devices Can choose the flow to be one pump's or twin pumps'	Single pump, no option
Independent system	Yes. The driving system and working system are independent closed system, can give max. output even when the loader is steady	No. The driving system and working system share some circuit, the output is relative with the driving speed
Boom	Telescopic	No-telescopic
Boom floating	Standard	Option for extra charge
Hydraulic quick coupling	Standard	Depends
Electric output on boom	Standard	Not available
Components	Perkins/Cummins engine, Italy pump and valves, UK seals	At most have an oversea engine, the rest are all local parts
Rear hydraulic output	Standard	Not available
3 point hitch	Available as option	Not available
Tiltable cabin	Standard	Not availabl

Loader+Tractor, one Multi-purpose helper for all your works

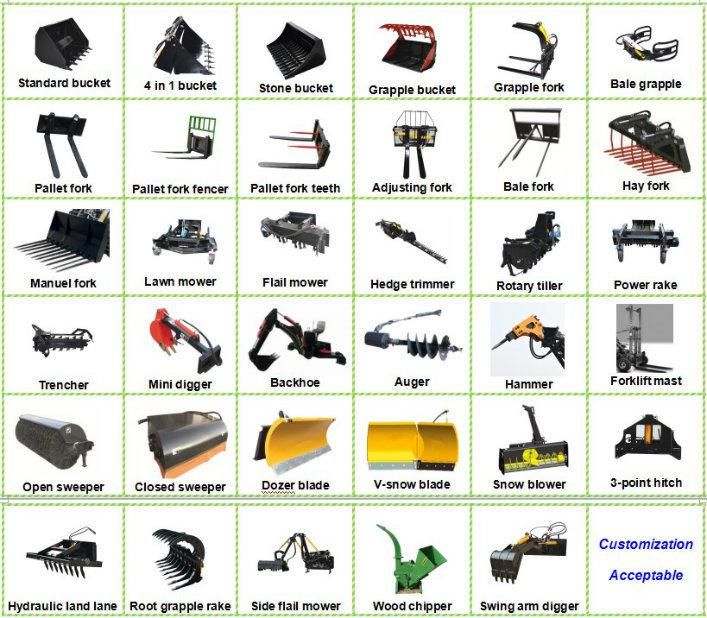

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.

STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
