• Model NO.：M630-60
• Type：Medium-sized Loader
• Categoery：Multifunction Farming & Construction Machine
• Name：Telescopic Handler Loader
• Similar Products：Jcb, Manitou, Dieci, Merlo, Genie,Gehl
• Engine：Yanmar,EPA Kohler
• Rated Power：75~100HP
• Bucket Capacity：1.5cbm
• Max. Lifting Height：6000mm
• Weight：5700kg
• Transmission System：Hydrostatic 4 Wheel Drive
• Steering System：All Wheel Steering
• Speed：12,24km,H Two Speed
• Min. Turning Radius：3220mm
• Dimension：3970X2090X2150mm

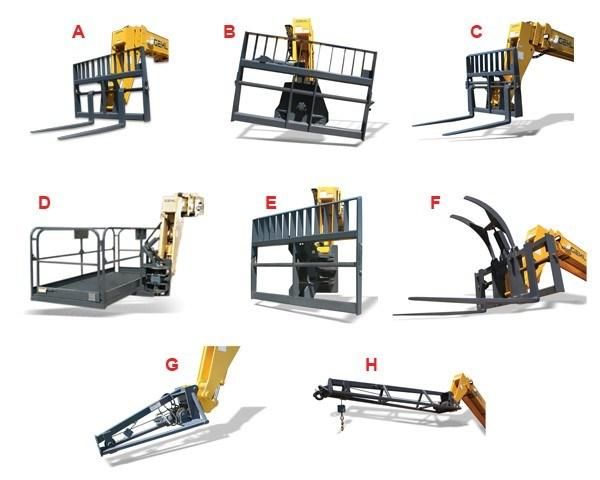

• Attachments：Quick Hitch, Forklift, Bale Clamp, 4 in 1 Bucket,
• Usage：Multipurpose, Agricultural, Bee Keeping, Farming
• Transport Package：Container
• Specification：3 ton telescopic loader
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Type Medium-sized Loader Categoery Multifunction Farming & Construction Machine Name Telescopic Handler Loader Similar Products Jcb, Manitou, Dieci, Merlo, Genie,Gehl Engine Yanmar/EPA Kohler Rated Power 75~100HP Bucket Capacity 1.5cbm Max. Lifting Height 6000mm Weight 5700kg Transmission System Hydrostatic 4 Wheel Drive Steering System All Wheel Steering Speed 12/24km/H Two Speed Min. Turning Radius 3220mm Dimension 3970X2090X2150mm Attachments Quick Hitch, Forklift, Bale Clamp, 4 in 1 Bucket, Usage Multipurpose, Agricultural, Bee Keeping, Farming Transport Package Container Specification 3 ton telescopic loader Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 600 Sets/ Year

Product Description

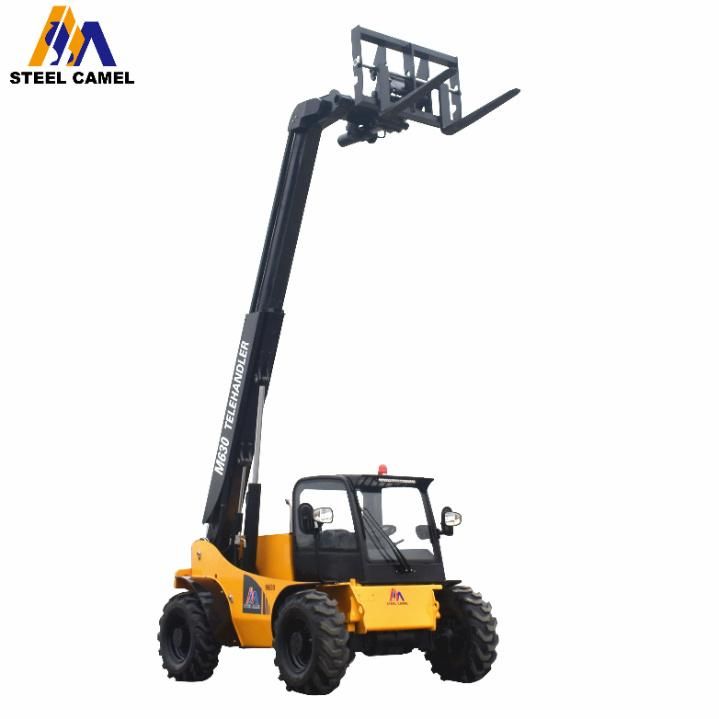

4x4 telehandler 3 ton capacity side boom telescopic handler loader

Good features of STEEL CAMEL brand telescopic forklift handler:

1.Hydrostatic transmission, 4 wheel drive and all wheel steering, have fantastic manuverability in the rough farming and construction terrain. 2.Three driving mode switchable from inside cabin (4 wheel steering/front wheel steering/crab steering) 3.Hydraulic quick coupling system can hook various attachments for different work 4.3ton capacity, 6m reach, most needed size for material handling work 5.ROPS cabin, electrical loading indicator guarantee the operating safety. 6.One hand joystick control, simple and convenient 7.Heavy duty engine and drive axle, powerful and strong 8.Wide view luxuary cabin, best operating comfort. 9.Engine speed regulation, never power off.


Main specification:


Engine	Yanmar/Chinese/Kohler EPA Tier 4
Rated power	55~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	6000mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

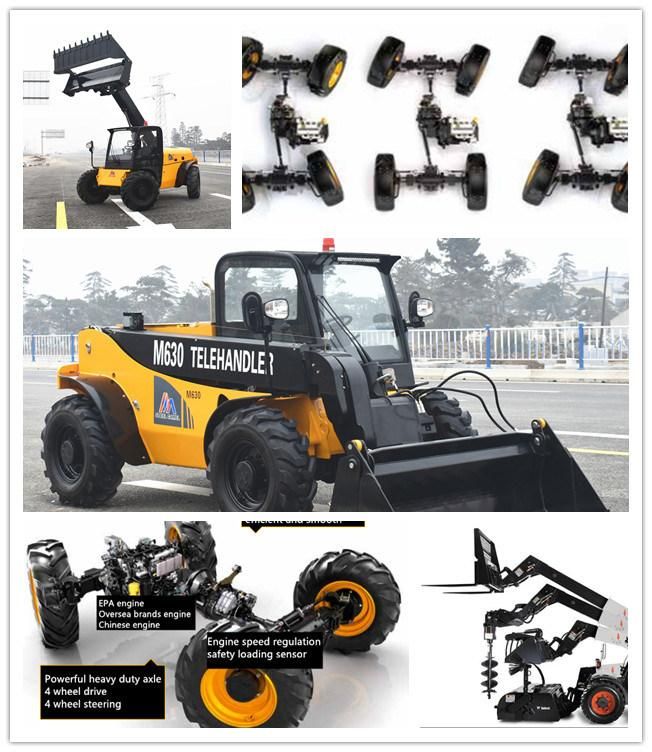

Detailed images:

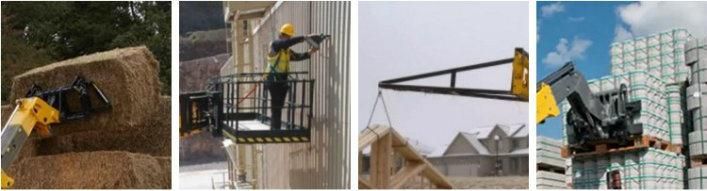

Applications:

The Telescopic handler forklift is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-mechanical transmission, hydraulic power steering, hydraulic brake, rear-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

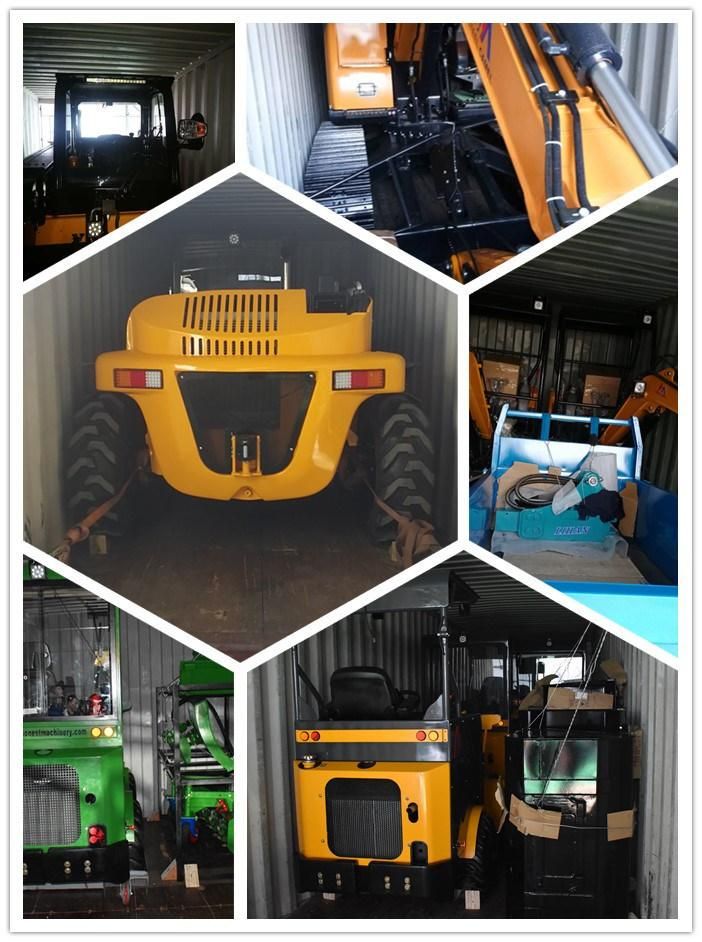

Packing & Delivery:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......


Our service:

Contact us:
 With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director
