• Model NO.：300*52.5*74N
• Link：80
• Overall Length：4200mm
• Weight：115kg
• Warranty：12 Months Under Normal Use
• Material：Rubber and Steel
• Delivery Time：5-15 Days
• Transport Package：Wooden Pallet
• Specification：300*52.5*80N
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China(Mainland)
• HS Code：8431499900
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. 300*52.5*74N Link 80 Overall Length 4200mm Weight 115kg Warranty 12 Months Under Normal Use Material Rubber and Steel Delivery Time 5-15 Days Transport Package Wooden Pallet Specification 300*52.5*80N Trademark No Marks or As Buyer′s Requests Origin Shanghai, China(Mainland) HS Code 8431499900 Production Capacity 1000 Pieces Per Month

Product Description

Excavator AUSA HANIX HYUNDAI NEUSON Rubber track 300*52.5*74N:


Applicable machines	Excavators
Material	rubber and steel
Specification	300*52.5*74N
Installation position	Installed on the excavators

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Adaptation Models:

Model	Original Size	PUYI Size
MH25 | AUSA	300X52,5X74	300X52,5X74N
X325 |	300X52,5X74	300X52,5X74N
X328 |	300X52,5X74	300X52,5X74N
X328E |	300X52,5X74	300X52,5X74N
ES300 | EUROCOMACH	300X52,5X74	300X52,5X74N
TS27S | EUROTOM	300X52,5X74	300X52,5X74N
H22A | HANIX	300X52,5X74	300X52,5X74N
N220.2 | HANIX	300X52,5X74	300X52,5X74N
N26B | HANIX	300X52,5X74	300X52,5X74N
ROBEX 28.5 | HYUNDAI	300X52,5X74	300X52,5X74N
ROBEX 28.7 | HYUNDAI	300X52,5X74	300X52,5X74N
2600 | NEUSON	300X52,5X74	300X52,5X74N
2702 | NEUSON	300X52,5X74	300X52,5X74N
2702RD | NEUSON	300X52,5X74	300X52,5X74N
2702RD SLR | NEUSON	300X52,5X74	300X52,5X74N
2800 | NEUSON	300X52,5X74	300X52,5X74N
2902 | NEUSON	300X52,5X74	300X52,5X74N
2902RD FORCE | NEUSON	300X52,5X74	300X52,5X74N
HR4A | SCHAEFF	300X52,5X74	300X52,5X74N
D20X22 | VERMEER	300X52,5X74	300X52,5X74N

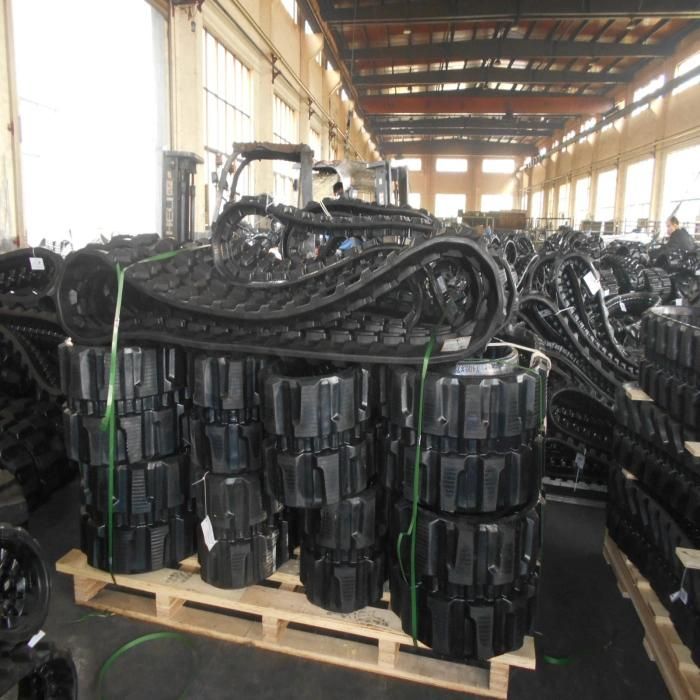

Warehouse:
