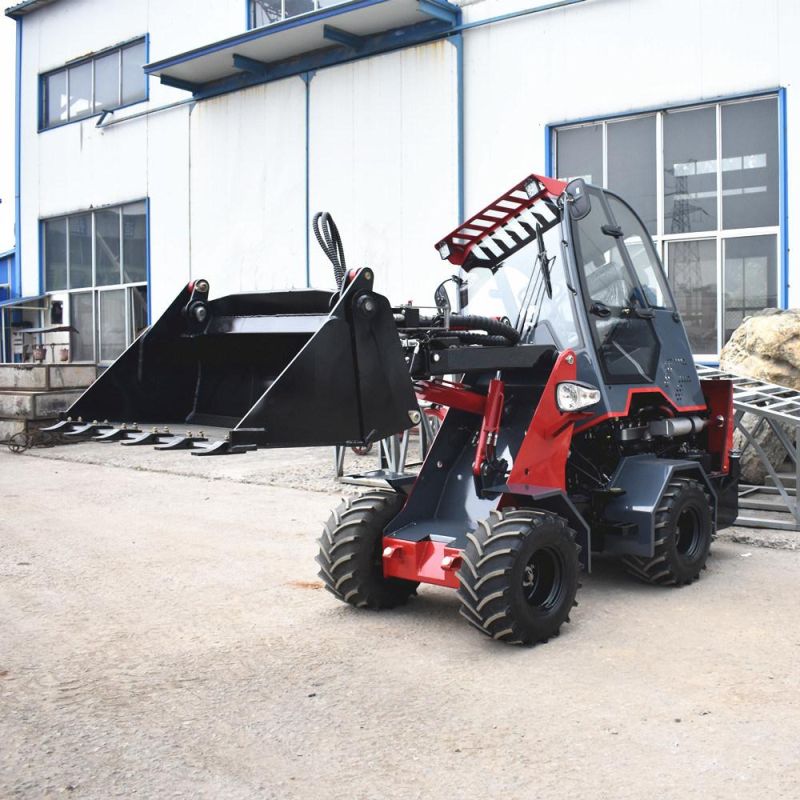

Construction Machinery Equipment Steel Camel 920 Two Speed Loader with Rock Grapple Bucket
Shandong Honest Machinery Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, Rops Fops EPA
- Condition：New
- Rated Load：1-3t
- Transmission：Hydrostatic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：M920
- Type：Medium-sized Loader
- Product Name：Telescopic Wheel Loader
- Engine：Perkins,Yanmar,Kohler,Chinese
- Power：30-70HP
- Bucket Capacity：0.5-1.5m3
- Lifting Height：3m-4m
- Weight：1600-3000kg
- Wheel Drive：4WD
- Oil Flow：30-100L,Min
- Heater：Standard
- Air Conditioner：Optional
- Transport Package：1 Set,20′gp; 3 Sets,40′hq
- Specification：3650X1500X2350mm
- Trademark：STEEL CAMEL
- Origin：Shandong
- HS Code：8429510000
- Production Capacity：800 Sets Per Year
Description
M910 M915 M920 Dimension with cabin (LxWxH) 2690x1300x2285mm 3400x1500x2300mm 3650x1500x2350mm Max.lifting height (boom retract) 2512mm 3000mm 3200mm Max.lifting height (boom extend) 3030mm 3562mm 3900mm Pulling force 12kN 18kN 19kN Bucket capacity 0.5cbm 0.8cbm 1 cbm Max. loading capacity 1000kg 1500kg 2000kg Min. turning radius 2120mm 2800mm 3100mm Turning angle 450 450 450 Min. ground clearance 268mm 330mm 330mm Speed 0-10 km/h 0~12~24km/h, two speed 0~12~24km/h, two speed Operating weight 1850 kg 2300kg 2600kg Standard tire 26X12-12 31X15.5-15 31X15.5-15 Tire pressure 2.8 bar 2.8 bar 2.8 bar Oil tank capacity 45L 80L 80L Pressure 190bar 190 bar 190bar Working oil flow 33.5L/minx2 41L/min x 2 50L/min x 2 Tracking oil flow 78L/min 120L/min 120L/min Oil model(mineral oil) L-HL46 L-HL46 L-HL46 Fuel tank capacity 30L 42L 52L Battery 60Ah, 12V 60Ah, 12V 60Ah, 12V Engine Perkins/Yanmar Perkins/Yanmar/Kohler Yanmar/Kohler/Chinese Rated power 33hp 50hp 68hp-74hp
Detailed images:

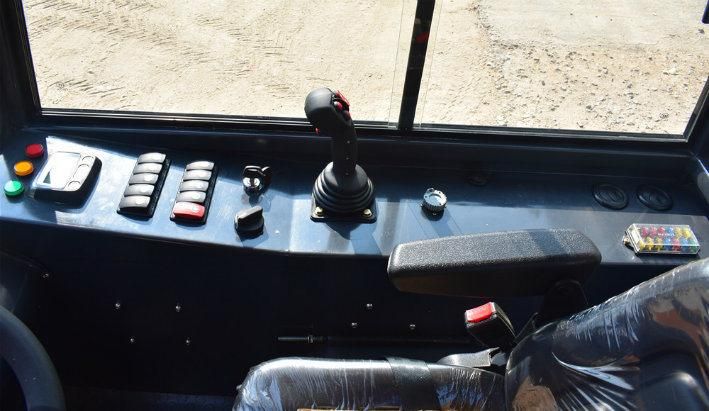

Inside cabin

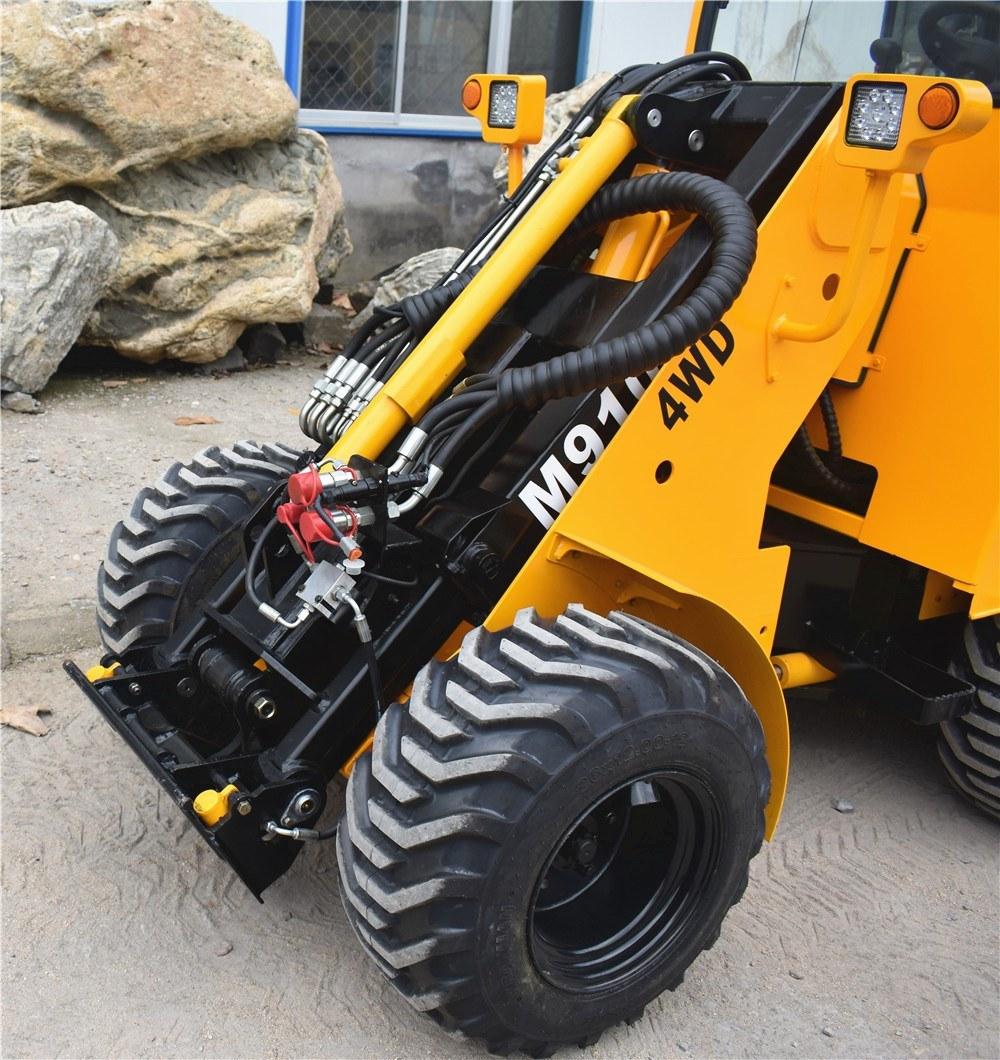

Telescopic boom
Tipping cabin

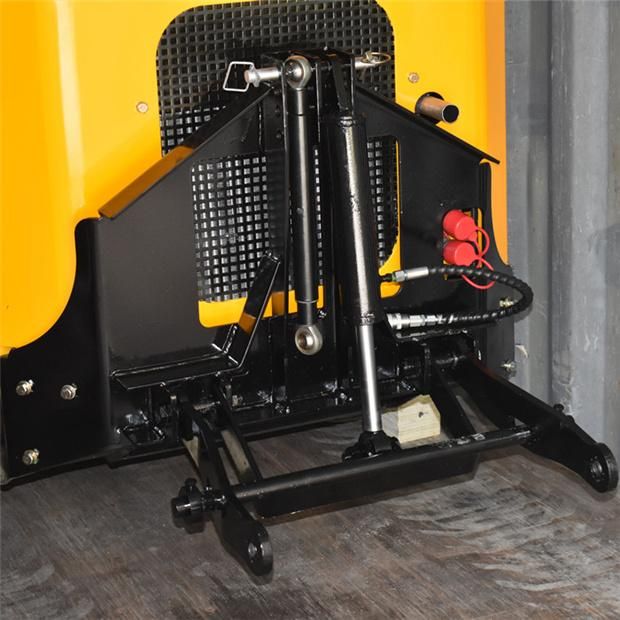

Rear hydraulic output and 3 point hitch

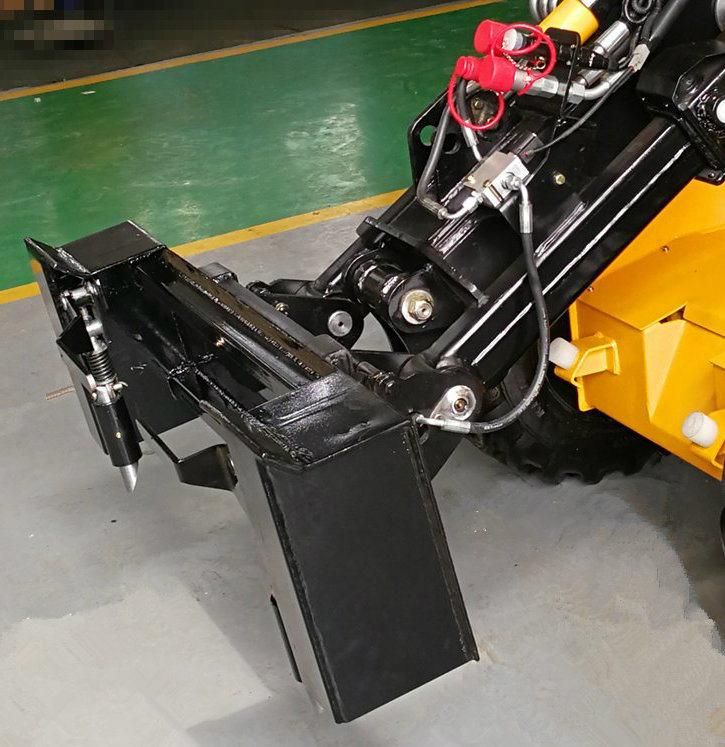

Bobcat type skid steer loader adapter plate (optional). Customers who had some bobcat attachments can choose this option to save money buy new ones

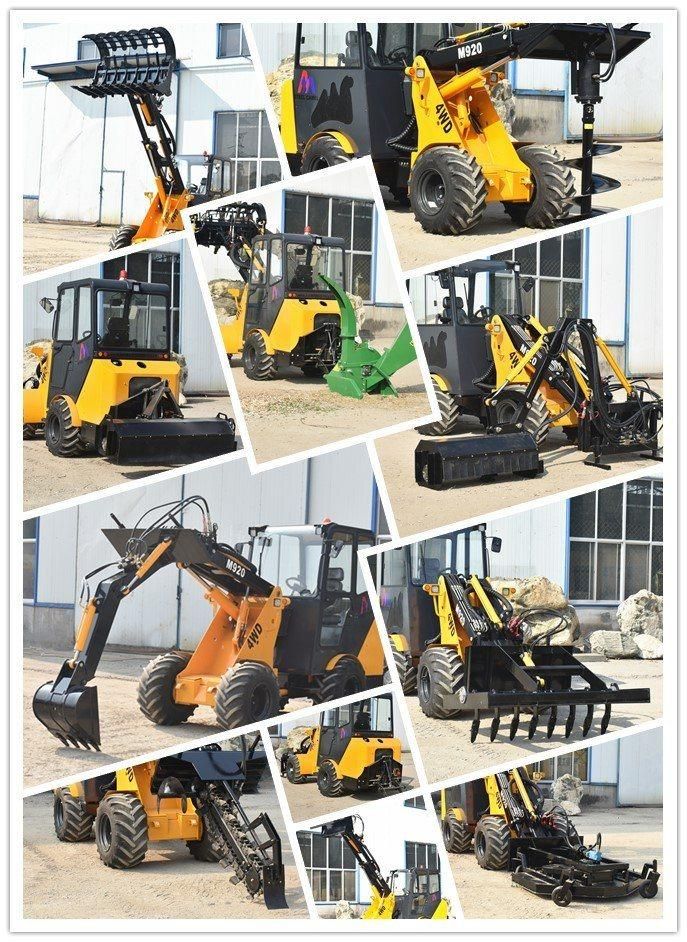

Applications:
Loader+Tractor, one Multi-purpose helper for all your works

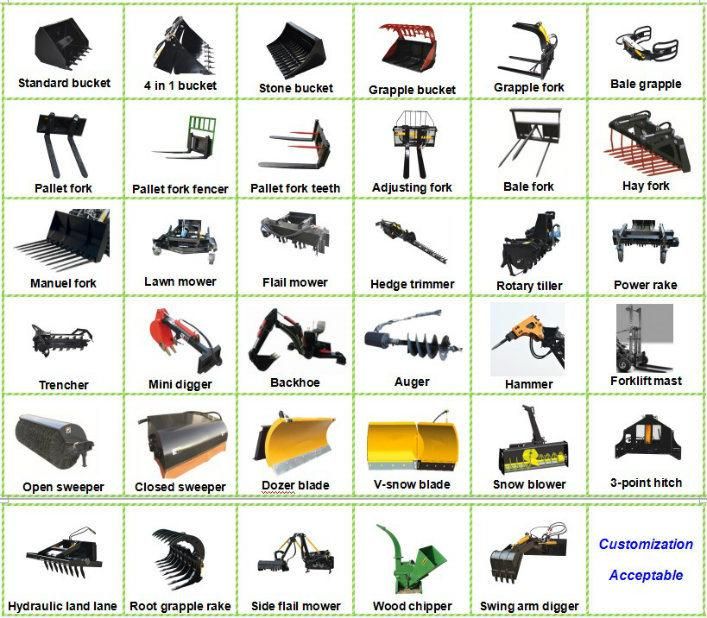

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

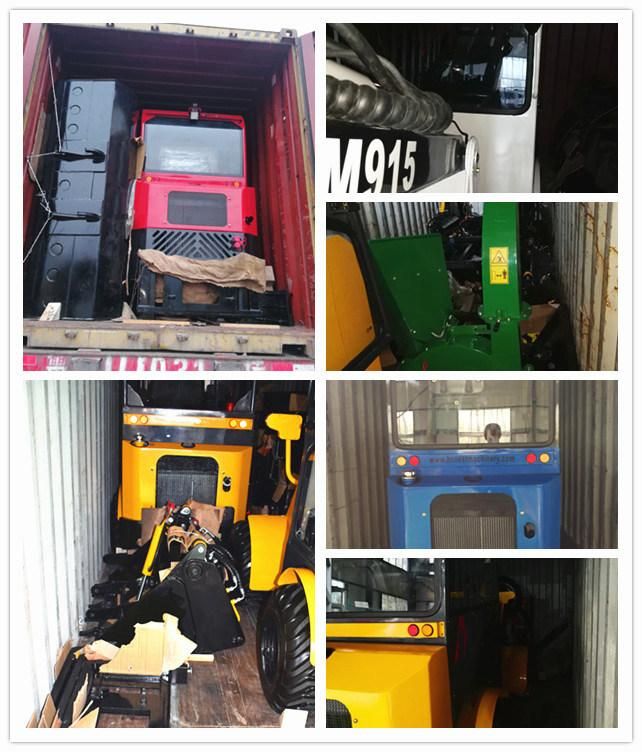

Packing and loading:
Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......
