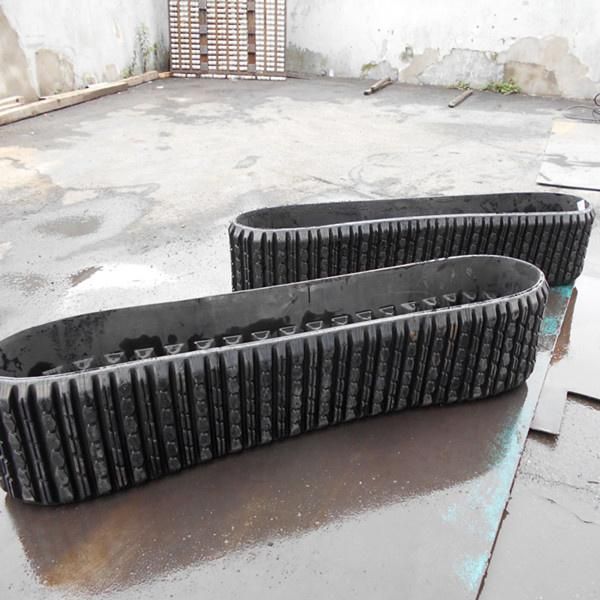

Terex Asv RC50 RC60 PT50 PT60 257 257b Loader Rubber Track 15"*4"*42 with No Teeth
Shanghai Puyi Industrial Co., Ltd.- Type:Crawler
- Application:Skid Steer Loader
- Certification:ISO9001: 2000
- Condition:New
- Material:Rubber and Fiber
- Width:380mm
Base Info
- Model NO.:15"*4"*42
- Pitch:102mm
- Link:42
- Length:4284mm
- Warranty:12months
- Weight:79.2kg
- Transport Package:Wooden Pallet
- Specification:380*102*42
- Trademark:POOYERT
- Origin:Shanghai, China
- HS Code:8431499900
- Production Capacity:5000 Pieces,Month
Description
Basic Info.
Model NO. 15"*4"*42 Pitch 102mm Link 42 Length 4284mm Warranty 12months Weight 79.2kg Transport Package Wooden Pallet Specification 380*102*42 Trademark POOYERT Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Pieces/MonthProduct Description
We passed ISO9001 and some produts with CCC certification .Replacement Terex ASV RC50 RC60 PT50 PT60 257 257B loader rubber track
1.Continuous rubber track
2.Conventional type or interchangeable type rubber track
3.Warranty: guarantee one year under normal use
4. rubber tracks for trucks for japanese market
5.excellent quality and low price
6.strong resistance to wear
7.warranty:12 months
8.sizes from 150mm-900mm
9.Products based on GB/T20786-2006
10.Application: mini-excavator,loading machine,bulldozer, dumper, crawler loader, crawler crane, crawler,carrier vehicle, agriculture machinery,snow rubber track,paver and other special machine.
VOLVO. CATERPILLAR. KOMATSU. HITACHI. KATO. SUMITOMO. KOBELCO. CASE. JCB. . KUBOTA. TAKEUCHI. IHISCE. TEREX. LOVOL. SANY. LIUGONG. XGMA. ZOOMLION. SUNWARD.
The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
More Parameters:
Size | Weight for Each Link | Size | Weight for Each Link | Size | Weight for Each Link |
130*72 | 0.36 | WD300*72 | 1.459 | 400*144 | 7.75 |
150*60 | 0.52 | B300*84 | 2.88 | 400*144Y | 7.41 |
150*72 | 0.55 | T300*86 | 3.13 | 420*100 | 5.3 |
170*60 | 0.48 | 300*109KW | 3.38 | 450*71 | 4.45 |
180*60 | 0.56 | K300*109 | 3.56 | DW450*71 | 4.82 |
180*72 | 0.64 | 300*109N | 3.32 | 450*73.5 | 4.57 |
180*72K | 0.87 | 300*109W | 3.21 | 450*76 | 5.27 |
H180*72 | 0.77 | 320*52.5 | 1.69 | 450*81.5 | 5.24 |
190*60 | 0.59 | 320*54 | 1.81 | 450*81N | 5.19 |
190*60 | 0.59 | B320*84 | 2.95 | 450*81W | 5.02 |
190*72 | 0.72 | B320*86 | 2.99 | 450*83.5 | 5.47 |
200*72 | 0.84 | B320*86SB | 2.99 | 450*83.5Y | 5.67 |
200*72K | 1.07 | B320*86C | 3.01 | 450*84 | 4.22 |
230*48 | 0.87 | B320*86Z | 3.12 | B450*86 | 4.33 |
230*48K | 1.06 | B320*86CM | 3.01 | B450*86SB | 4.3 |
230*72 | 1.09 | B320*86R | 2.99 | B450*86C | 4.31 |
230*72K | 1.34 | T320*86 | 3.22 | B450*86Z | 4.51 |
230*96 | 1.77 | T320*86MB | 3.3 | B450*86CM | 4.37 |
230*101 | 1.92 | T320*86SB | 3.27 | B450*86R | 4.3 |
250*47 | 1.11 | T320*86C | 3.25 | 450*90 | 4.07 |
250*48.5 | 1.13 | T320*86Z | 3.53 | KU450*90 | 3.9 |
250*52.5 | 1.04 | 320*90 | 2.85 | 450*110 | 6.9 |
250*52.5K | 1.31 | 320*100 | 2.67 | T450*100MB | 5.3 |
250*72 | 1.17 | 320*100W | 3.01 | T450*100 | 5.09 |
B250*72 | 1.03 | 320*106 | 3.63 | T450*100SB | 5.16 |
250*96 | 2.21 | 350*52.5 | 1.85 | T450*100C | 5.2 |
250*109 | 2.39 | 350*54.5 | 2.31 | T450*100Z | 5.55 |
260*55.5 | 1.48 | 350*56 | 2.05 | 450*163 | 10.47 |
260*96 | 1.91 | 350*75.5 | 3.58 | 485*92W | 7.62 |
260*109 | 2.16 | 350*90 | 1.85 | 500*71 | 7.5 |
280*72 | 1.43 | 350*100 | 3.69 | 500*90 | 5.38 |
280*106 | 3.05 | 350*108 | 3.92 | 500*92 | 7.81 |
300*52.5KB | 1.67 | 350*109 | 4.12 | 500*92W | 8.6 |
300*52.5KW | 1.71 | 370*107 | 4.68 | 500*100 | 6.34 |
300*52.5N | 1.44 | 400*72.5KB | 3.44 | 500*146 | 9.97 |
300*52.5W | 1.56 | 400*72.5KW | 3.72 | 600*100 | 8.3 |
JD300*52.5N | 1.54 | 400*72.5N | 3.48 | 600*125 | 10.39 |
K300*52.5 | 1.72 | 400*72.5W | 3.85 | 650*110 | 13.34 |
KB300*52.5N | 1.55 | 400*72.5Y | 3.62 | 650*120 | 13.75 |
300*53 | 1.81 | 400*74 | 3.4 | 650*125 | 15.8 |
300*55 | 1.88 | 400*75.5 | 4.09 | 700*100 | 10.9 |
300*55.5 | 1.95 | 400*86 | 4.14 | 700*125 | 14.29 |
300*71 | 3.31 | 400*90 | 2.22 | 750*150 | 21.34 |
300*72 | 1.77 | 400*107 | 4.95 | 800*125 | 19.14 |
400*142 | 7.12 | K800*150 | 21.55 | ||
ASV TRACK | M800*150 | 20.05 | |||
280*102*37 | 1.36 | PAVER TRACK | 900*150 | 31.23 | |
380*102*42 | 1.9 | 356*152.4*46 | 4.81 | 1000*150 | 33.3 |
460*102*51 | 2.41 | 483*152.4*52 | 6.07 | ||
460*102*56 | 2.49 | 460*225*36 | 7.79 | SPECIAL TRACK | |
460*102C*51 | 2.44 | 160*87.63*28 | 0.41 | ||
510*102*51 | 2.6 | 240*87.63*28 | 0.51 |
