• Model NO.：WR212
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Engine：Cummins
• Operating Weight：120,000kg
• Load Applied on Front Drum：10000kg
• Load Applied on Rear Wheels：6500kg
• Compacting Width：2130mm
• Static Linear Load：529n,Cm
• Vibration Frequency(Low/High)：28,33
• Nominal Amplitude(High/Low)：1.86,0.93mm
• Exiting Force(High/Low)：340,240kn
• Transport Package：Nude Packing
• Specification：8225*3016*3515
• Trademark：Shantui
• Origin：China
• HS Code：8401200000
• Production Capacity：1000,Per

Basic Info.

Model NO. WR212 Certification ISO9001: 2000, CE Condition New Color Yellow Engine Cummins Operating Weight 120,000kg Load Applied on Front Drum 10000kg Load Applied on Rear Wheels 6500kg Compacting Width 2130mm Static Linear Load 529n/Cm Vibration Frequency(Low/High) 28/33 Nominal Amplitude(High/Low) 1.86/0.93mm Exiting Force(High/Low) 340/240kn Transport Package Nude Packing Specification 8225*3016*3515 Trademark Shantui Origin China HS Code 8401200000 Production Capacity 1000/Per

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang
Mobile: +86 1350 639 0903





Product Description

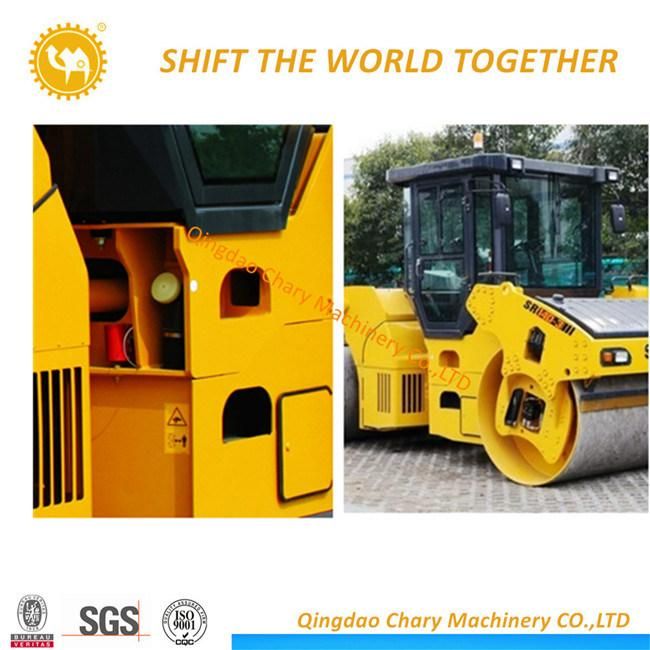

Shantui Double Drum Vibratory Compactor Road Roller for sale

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.











MODEL		WR212	WR214	WR216
Operating mass	Kg	12000	14000	16000
Static linear load	N/cm	276	342	378
Vibration frequency	Hz	30	30	30
Vibration amplitude	mm	1.8	1.8/0.9	2.0/1.0
Centrifugal force	kN	270/140	200/150	320/180
Travel speed	km/h
1st gear		1.8	2	2
2nd gear		3.7	4	4
3rd gear		9.7	10.5	10.5
Grade ability	%	35	35	35
Turning angle		35	35	35
Ground clearance	mm	360	432	432
Bectrical voltage	v	24	24	24
Turning radius	mm	7000	7000	7500
Vertical oascill ation		8	8	8
Tyre size		17.5-25	23.1-26	23.1-26
Overall length	mm	5640	5820	5820
Overall width	mm	2258	2278	2278
Overall hieght	mm	2970	3000	3000
Vibration round width	mm	2100	2100	2100
Drum diameter	mm	1400	1600	1600
Drum rim thickness	mm	24	24	32
Wheel base	mm	3080	3160	3160
Diesel model		Cummins 6BT5.9	Cummins 6BT5.9	Cummins 6BT5.9
Diesel power	kW	88	88	110
Diesel speed	r/min	2000	2000	2000
Fuel tank capacity	L	180	180	180
Hydraulic tank capacity	L	150	150	150

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU


WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

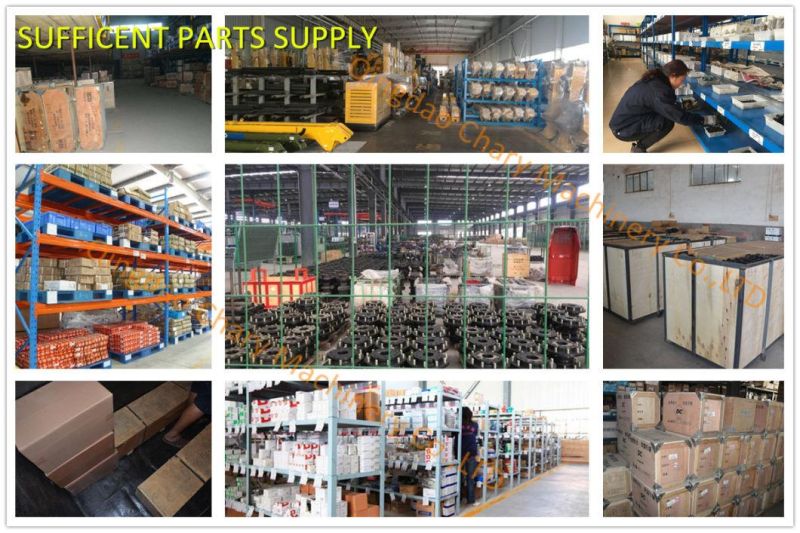

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.



WELCOME TO CONTACT US

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang
