• Model NO.：SL20W
• Type：Small Loader
• Color：Yellow
• Rated Operating Load：2000kg
• Bucket Capacity：2.4m3
• Machine Weight：17500+300kg
• Wheel Base：3300mm
• Dump Clearance at Maximum Lift：3100~3780mm
• Reach at Maximum Lift：1100~1220mm
• Tread：2250mm
• Max.Breakout Force：175±5kn
• Hydraulic Cycle Time-Raise：6s
• Transport Package：Nude Packing
• Specification：6225*3016*3515
• Trademark：Shantui
• Origin：China
• HS Code：8429510095
• Production Capacity：5000 Per Month

Basic Info.

Model NO. SL20W Type Small Loader Color Yellow Rated Operating Load 2000kg Bucket Capacity 2.4m3 Machine Weight 17500+300kg Wheel Base 3300mm Dump Clearance at Maximum Lift 3100~3780mm Reach at Maximum Lift 1100~1220mm Tread 2250mm Max.Breakout Force 175±5kn Hydraulic Cycle Time-Raise 6s Transport Package Nude Packing Specification 6225*3016*3515 Trademark Shantui Origin China HS Code 8429510095 Production Capacity 5000 Per Month

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang
Mobile: +86 1350 639 0903



Product discription:

                        Shantui 2T Mini Wheel Loader SL20W with Best Price








SL20W Loader

SL20W loader is a low power fixed shaft loader product developed with the application of latest technologies and modern design methods and adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, light and flexible operations, and reliable quality. The speed choice of four forward gears and two reverse gears and the high dumping height make the machine especially suitable for shoveling, loading, and handling of bulk


Technical Features

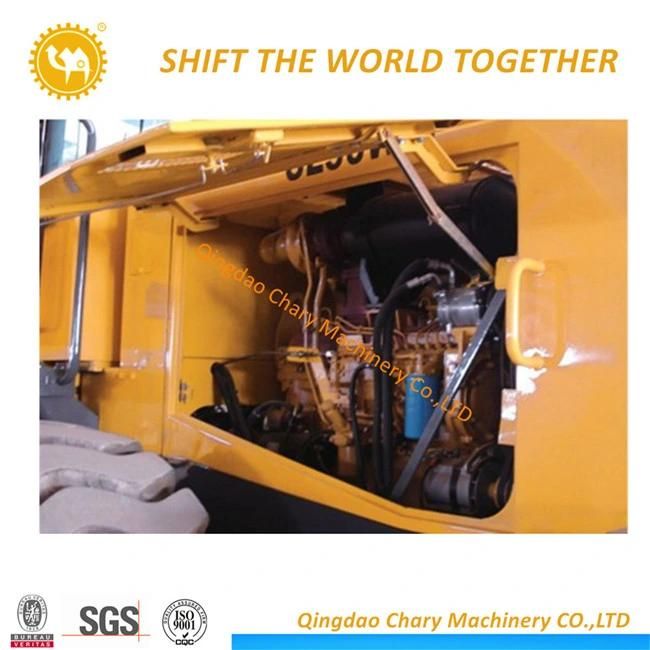

The environmental-friendly YTO LR4B3-24 engine is equipped, featuring strong power, reliable performance, and high efficiency and energy-saving.
The split installation is adopted for the fixed shaft transmission and single turbine torque converter. The transmission adopts Hangzhou Advance BS428 power shift transmission with four forward gears and two reverse gears, featuring adaptability to different working conditions, more powerful operations, and faster movement.

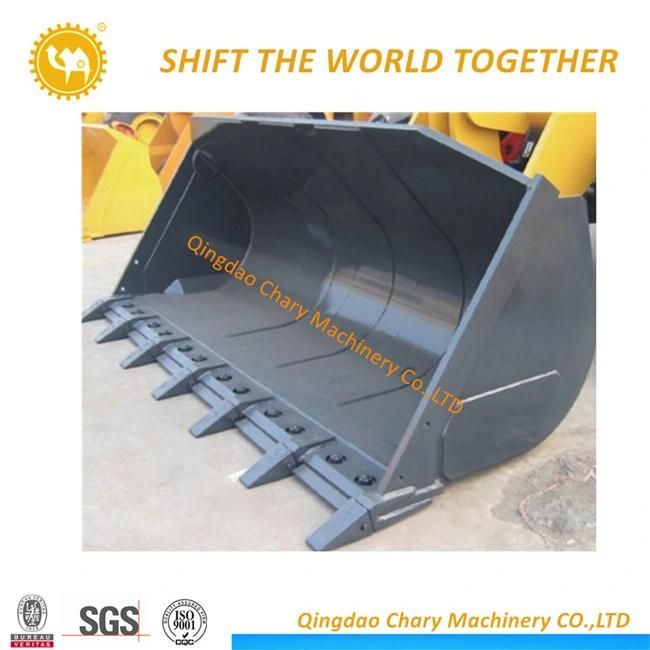

The optimized 2,850mm loading and unloading height and the extended boom design guarantees outstanding loading performance and the carrying capacity against high torsional torque. The bucket is capable of automatic leveling to achieve high loading and unloading efficiency.
The optimized 2,270mm wheelbase guarantees outstanding site adaptability and the operation stability to fulfill the loading and unloading operations with ease.
With the adoption of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine feature high resistance against load and distortion, high firmness and compactness, and good stability.
With the 12º vertical swing design for swing frame, the loader can ensure more effective ground touch while driving on rugged roads, featuring higher adhesion and better stability and trafficability.

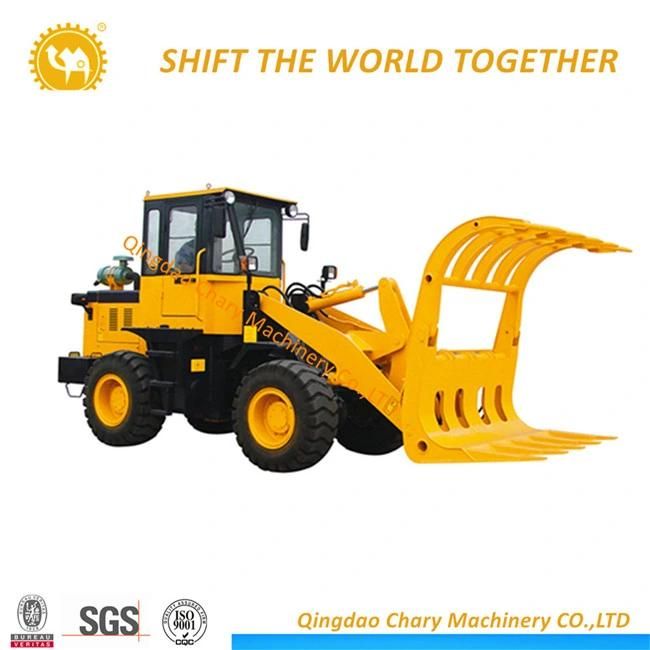

Multiple working devices, including bale grab, underground attachment, and side dumping bucket, are at your choice.

Performance Parameters

Length × width × height(mm)	5930×2078×2850	Engine model	YTO LR4B3-24
Rated power/speed(kW/rpm)	60/2400	Operating weight(kg)	6200
Wheelbase(mm)	2270	Operating weight(t)	2
Standard bucket capacity(m3 )	1	Dumping reach(mm)	Standard boom:850 Long boom:865
Dumping height(mm)	Standard boom:2460 Long boom:2850





MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU


WHY CHOOSE US?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE

(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

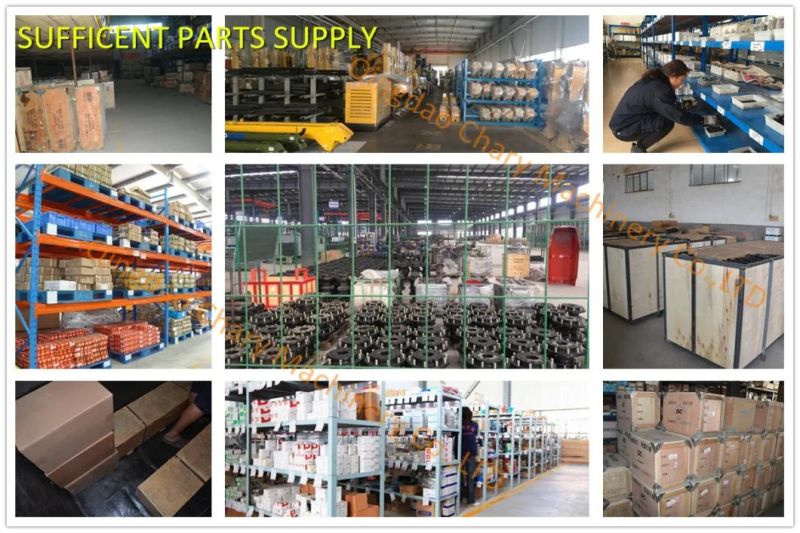

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
