• Model NO.：SARRD
• Grinding Wheel Type：Tire Grind
• Compaction Depth：35cm
• Engine Type：Honda
• Travel Speed：25cm,s
• Centrifugal Force：13.5KN
• Certification：CE, ISO 9001:2000
• Condition：New
• Drive Mode：Hydraulic Drive
• Engine Model：Honda 9.0HP,Gasoline Engine
• Vibration Frequency(Hz)：60
• Walking Mode：Forward & Back
• Turning System：Hydraulic RAM
• Veneer Pack(L*W*H)：155X94X108cm
• Capacity of Water Tank(L)：40
• Static Linear Pressure：54
• Climbing Capacity：25%
• Power(W)：9.0HP
• Transport Package：Wooden Case or as Your Request
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000PC,Month

Model

SARRD-S600

SARRD-S600C

Walk Speed

0-4km/h

0-4km/h

Climbing Capacity

30%

30%

Drive

Hydraulic Station

Hydraulic Station

Vibration Control

Automatic Clutch

Automatic Clutch/ Electromagnetic Clutch

Static linear load

53N/cm

53N/cm

Nominal amplitude

0.5mm

0.5mm

Vibration frequency

70HZ

70HZ

Exciting force

20KN

20KN

Water tank

20L

20L

hydraulic oil tank

21L

21L

Engine Model

HONDA GX270

CF178F

Power

9.0HP

6.0HP

Steel Wheel Size

φ425X600X2

φ425X600X2

Package Size

1450X1100X1200

1450X1100X1200

Net Weight

550kg

550kg

Starting Mode

Hand

Hand/Electric

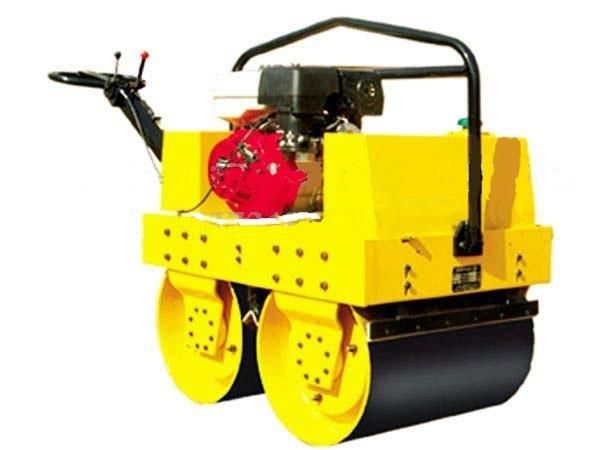

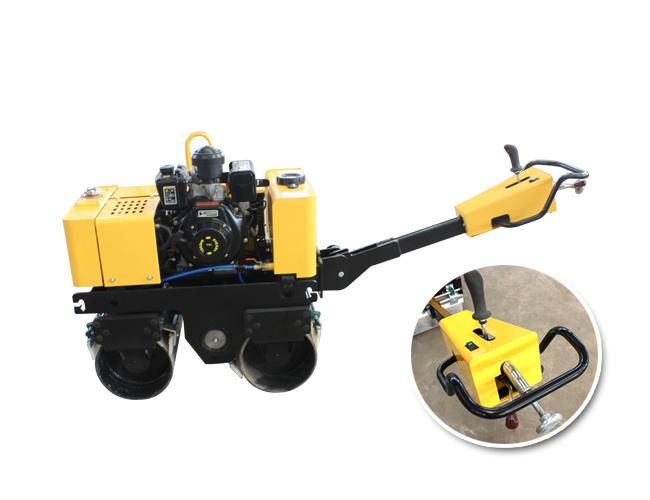

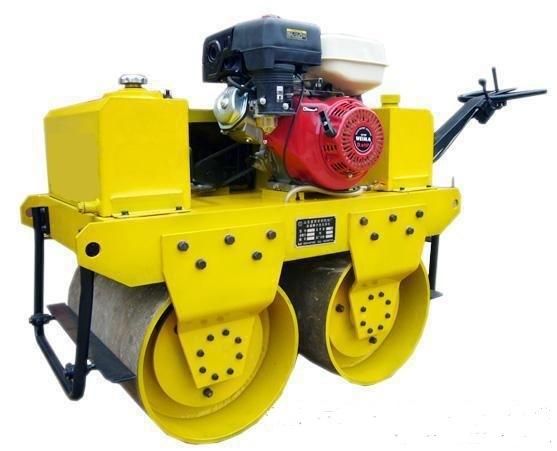

Introduction  for walk behind double drum road rollers

The  mini walk behind double drum road rollers   are small-size vibratory roller, applied to mending andmaintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

Features of  walk behind double drum road rollers

1. Water cisterns to reduce both serious trouble, so that equipment can be continuous growth in the working hours
2.Operating radius is small, can work in a small area
3.Operationhandle integrated with travel, engine throttle and vibration controls for simple and easy operation.
4. Hydraulic walking back and forward
5.  Handle use adjustable folding operation

Features and Advantage

Double drum road roller Product features:

1.Deadman control lever offers reversing protection.

2.Mechanical parking brake

3.Multi position handle for operator comfort and simplified transport.

4.Built-in oil cooler will increase the productivity of machine

5.Ergonomically designed controls are conveniently positioned to ensure speed and vibration.

6.Anti vibration controls ensure non-fatiguing and low HAV (Hand/Arm Vibration) for the operator

7.The side clearance and curb clearance allow for the closest possible approach to pavements,curbs,walls and other obstacles

8.Dual smooth drums with beveled edge elinimates mark on the ground and asphalt.

9.Easy access to front mounted Diesel engine.

10.65 Liters,corrosion-free water tanks mounted at the rear of roller reduces sound and keeps dust to a minimum.

11.Vibration is controlled by easy to reach on and off switch in speed controlled hand lever.

12.Two scraper bars on each drum ensure a clean drum when working on asphalt.

13.Minimum overhang offering suitable side and curb clearance.

14.Ergonomically designed handle with dead man control offering protection to operator in reversing applications.

15.A fully hydraulic-drive system consists of hydraulic bump and hydraulic motors provides infinitely variable working speed for travel and vibration,eliminating regular maintenance and adjustments that chain driven rollers require.

Unique clutch/pump drive system provides easy cold weather starting and allows for no-load starting of engine
