• Model NO.：HR918M
• Mini Loader：910m
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Colour as Our Customer Required
• Transport Package：Naked
• Specification：A
• Trademark：CHHGC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Basic Info.

Model NO. HR918M Mini Loader 910m Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Colour as Our Customer Required Transport Package Naked Specification A Trademark CHHGC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

Product Description

Automatic Mechanical Wheel Loader HR918M:

1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses mechanical transmission, with simple structure, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine.
6.Brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

Specifications of HR918M wheel loader

1.0 Engine Details
(1) Model: Weichai engine4102
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 47KW
(4) Rated Speed: 2400 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw.h
2.0 Transmission System
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)
3.0 Bucket
(1) Bucket Capacity: 0.8 m³
(2) Bucket width: 1800mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Max. Breakout Force: 36.8KN
(5) Rated Load: 1800kg
(6) Operating Weight: 4100kg
4.0 Overall Dimensions
(1) Overall Length (Bucket on ground position): 5450mm
(2) Overall Height
(a) Ground to Cab Top: 2770mm
(b) Dumping Height: 2700mm
(c) Min. Base to the Ground: 260mm
(3) Overall Width: 1850mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Mechanical transmission
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
7.0 Tyre Model: 20.5/70-16 Wider Tyre/14-17.5 Wider Tyre or 315/80R22.5
8.0 Wheelbase: 2100mm
9.0 Track: 1500mm

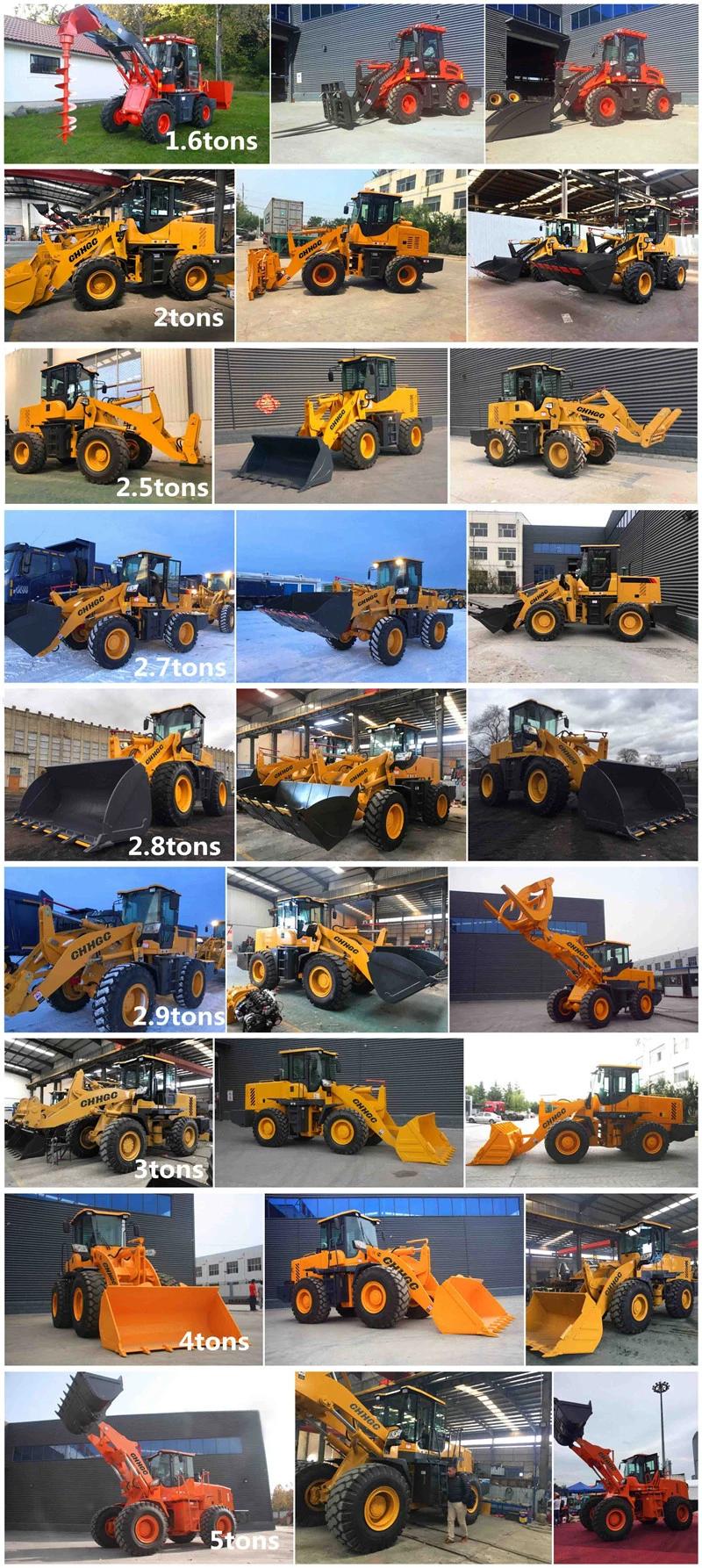

Products series

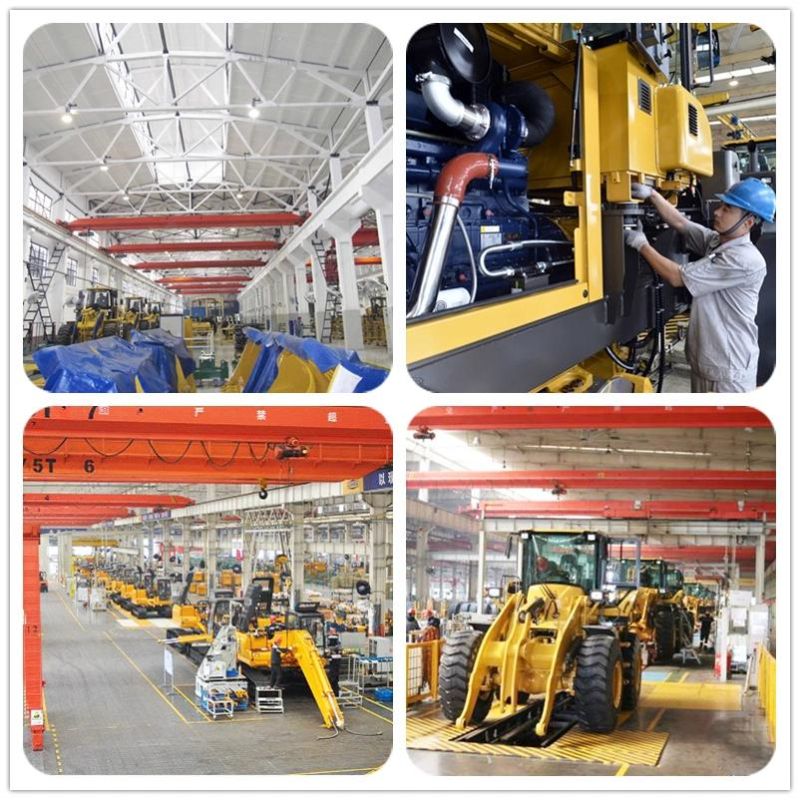

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
